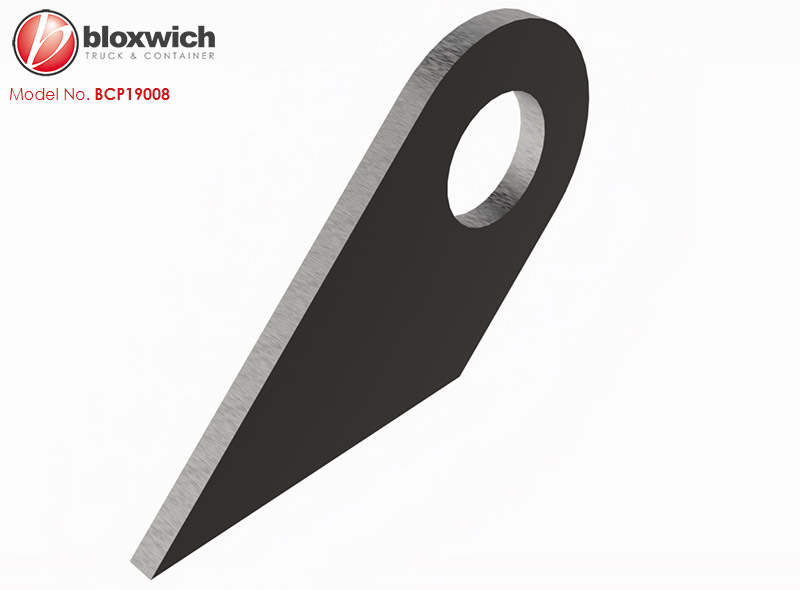

Bloxwich Standard Product: Lifting Eye
Supplied in: Mild steel self colour
Use: Weld on general purpose EN10025 S275 10mm plate lifting eye, commonly fitted to containers and other structures for lifting*.
Weight: 900 g Commodity No 830249 GTIN 5060345314625
The load bearing capabilities of the fixings to the container/vehicle/structure must be established by the builder in accordance with the relevant standards.
Click

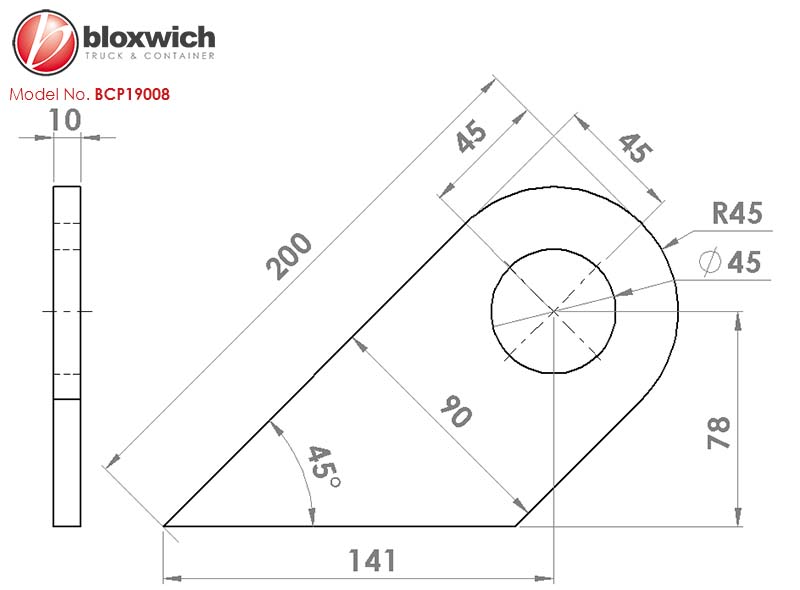

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
