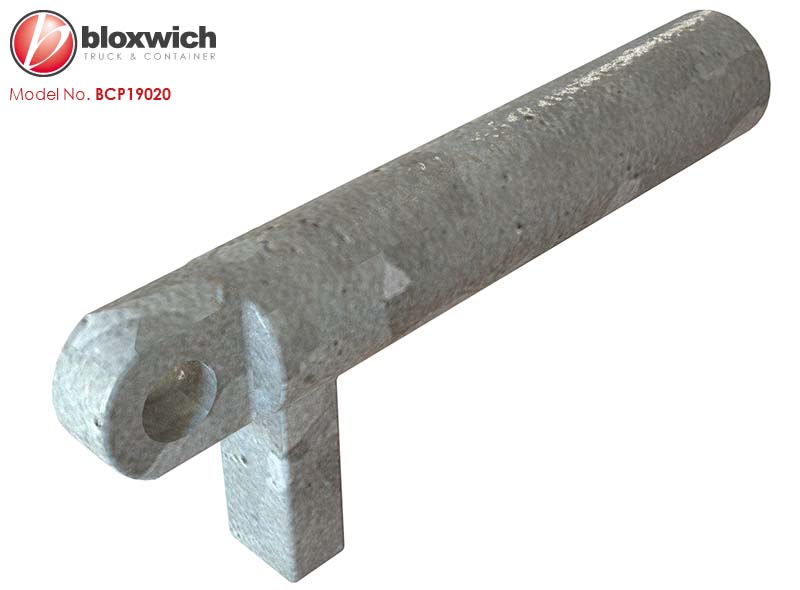

Bloxwich Standard Product: BCP19020 Container Welding Cone Handle MBL: 420 kN (shear) 2000 kN (compression)
Supplied in: Mild steel, galvanised

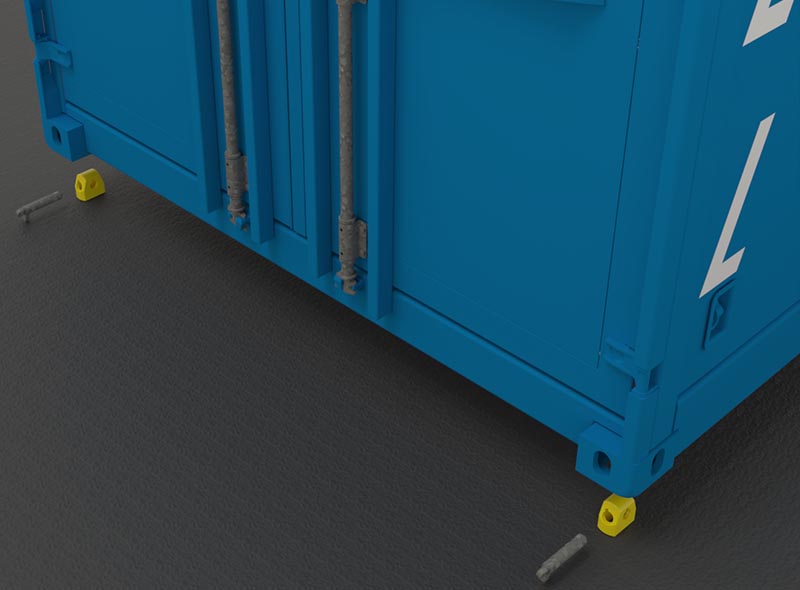

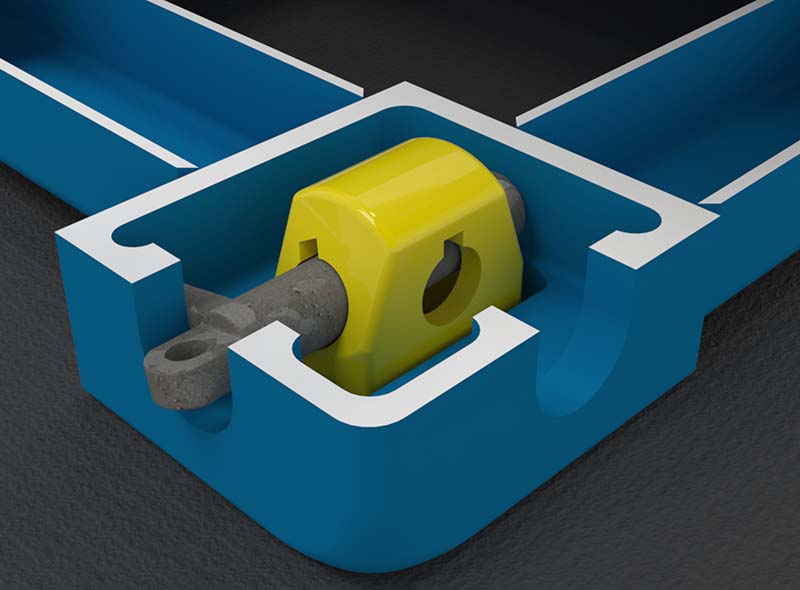

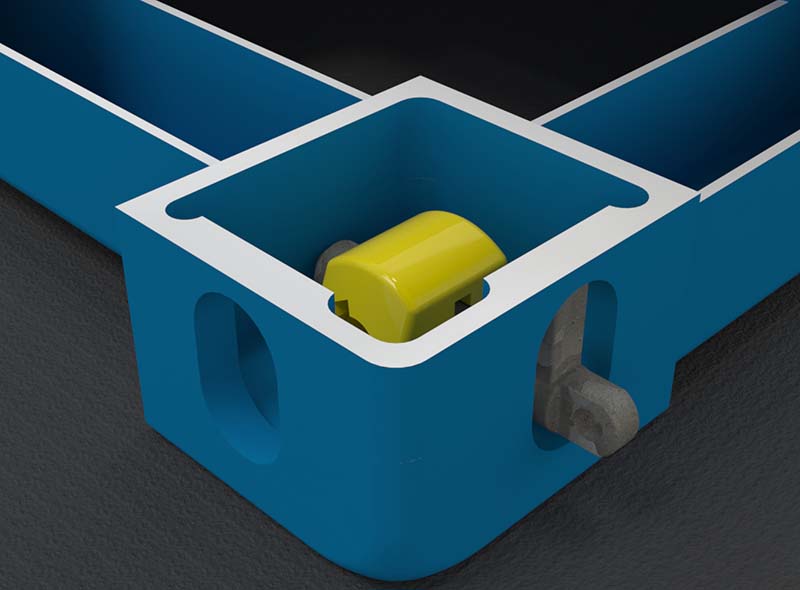

Use: Container welding cone handle, can fitted from the side or end into a corner casting and through the BCP19019 container welding cone to secure containers in position*.
Weight: 1.3 kg Commodity No 830249 GTIN 5060345314700
Exact models supplied may differ slightly in appearance only

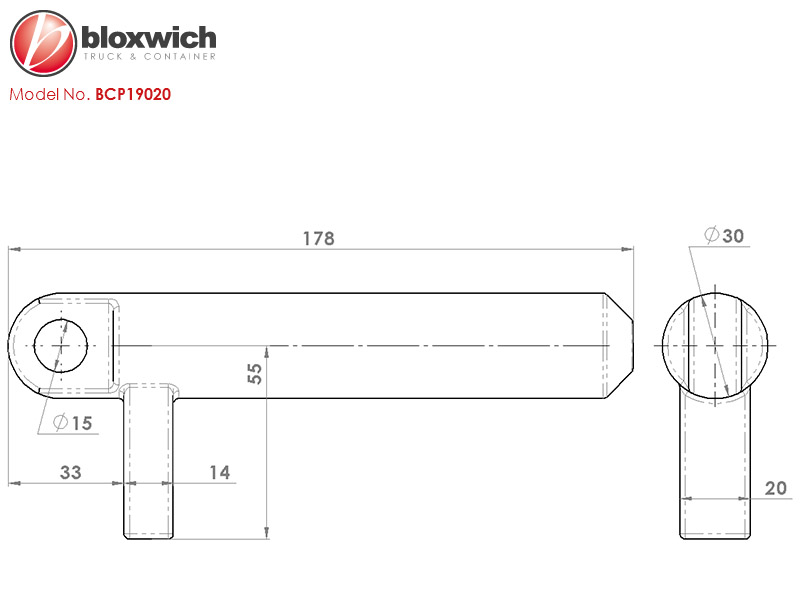

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
