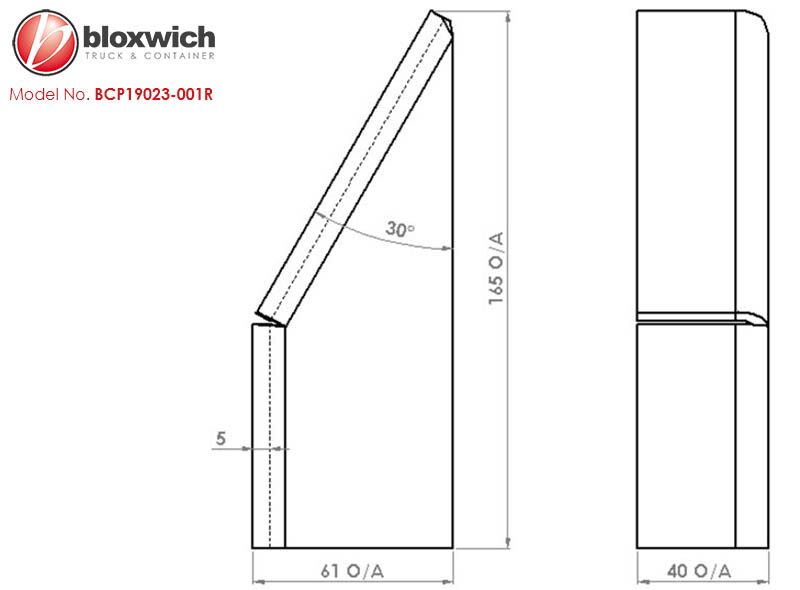

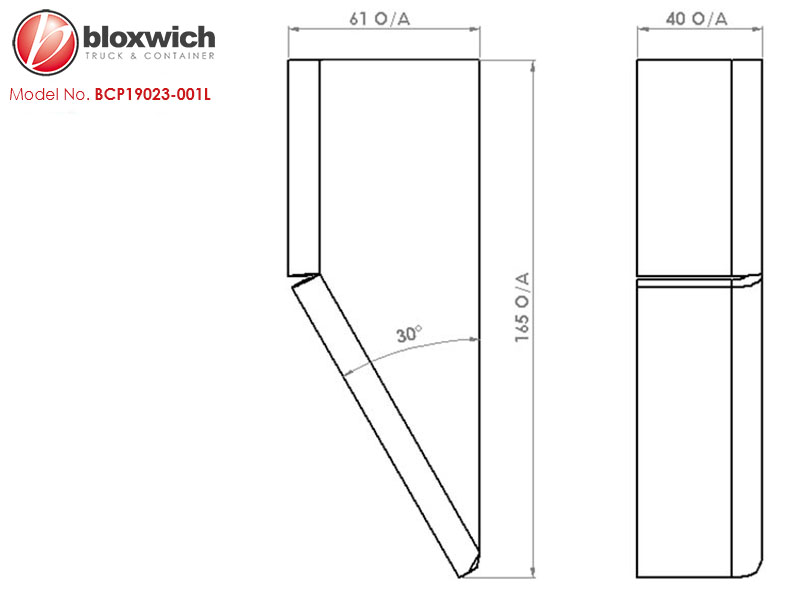

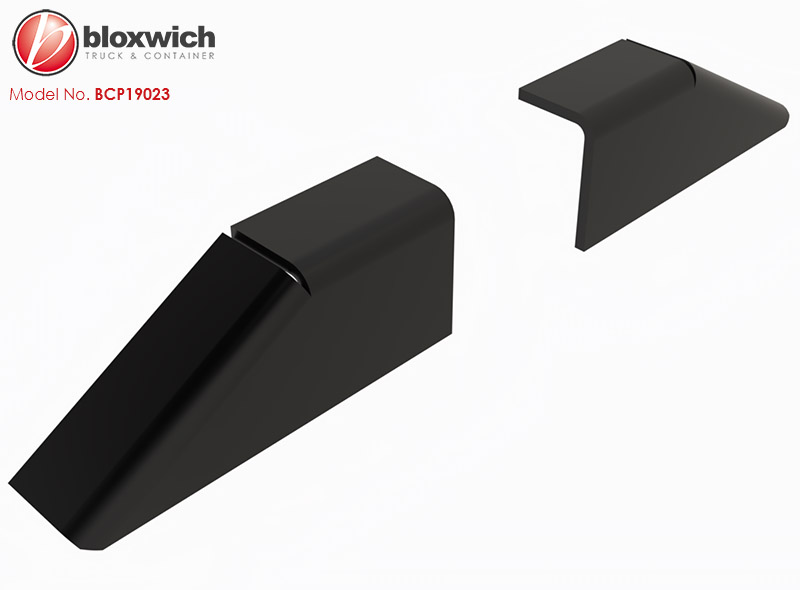

BCP19023 Deflector Plate Pair Long

Bloxwich Standard Product: BCP19022 Deflector Plate Pair (Long)

Supplied in: Mild steel self colour

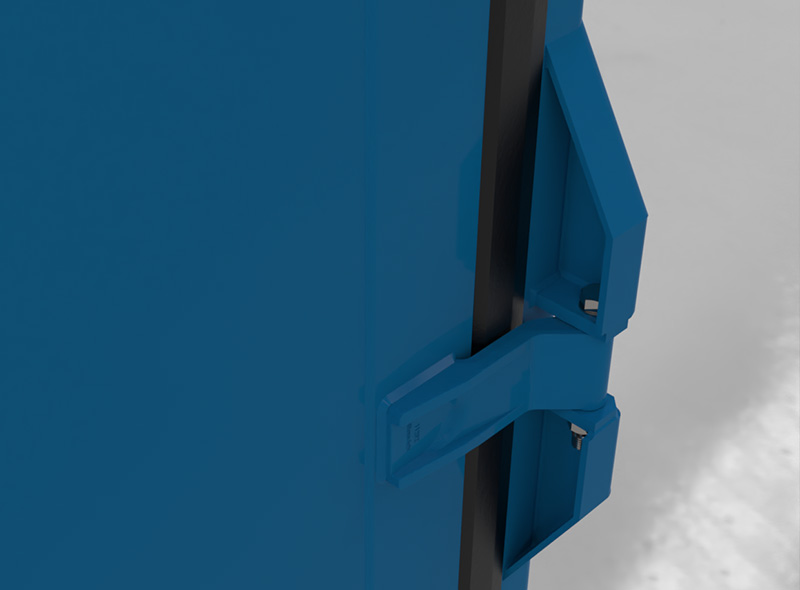

Use: Weld on general purpose EN10025 S275 5mm plate container hinge deflector plate pair (left and right). Can be fitted above and below hinge butts or brackets to provide support and prevent snagging during lifting and handling operations.

Long version provides access to hinge pins or bolts.

Weight: 1.0 kg  Commodity No 830249   GTIN 5060345314892

Click HERE to contact us and we will email the required customer drawings.
