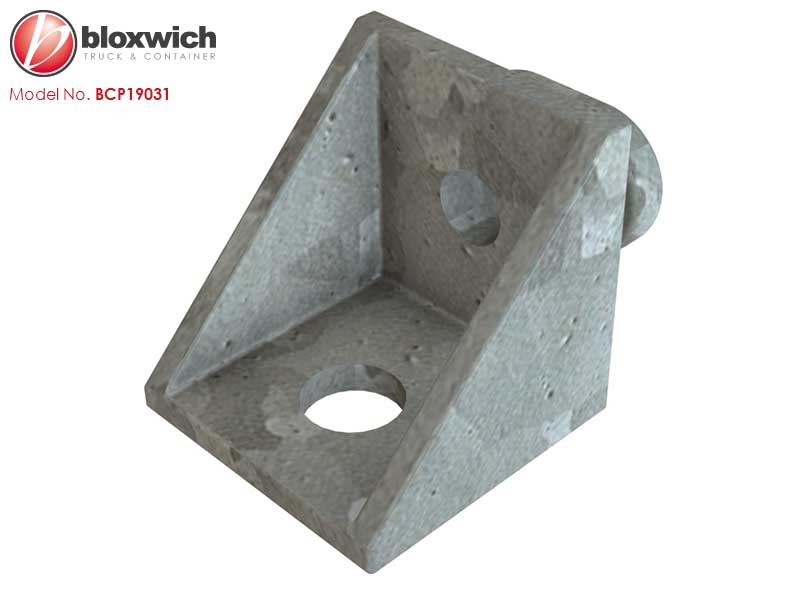

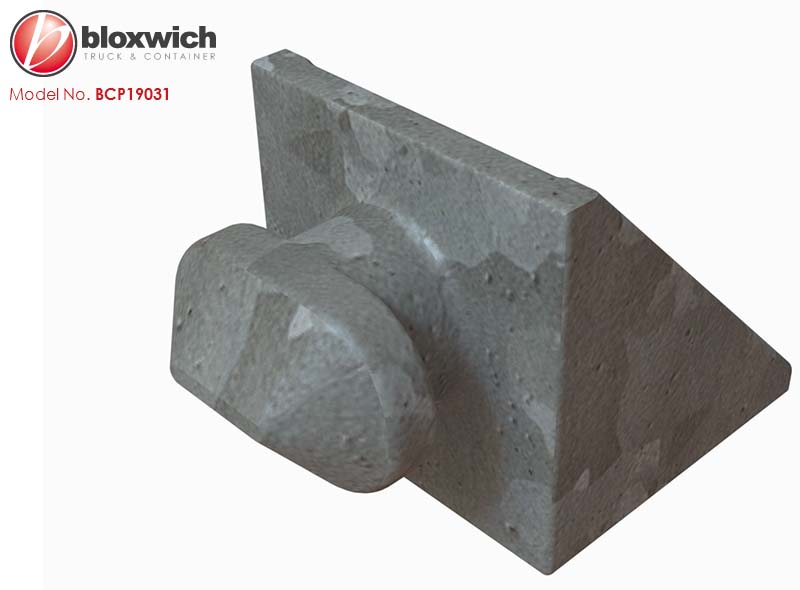

Bloxwich Standard Product: Side Twist Lock, MBL: 200 kN (tension) 100 kN (shear) 400 kN (compression)
Supplied in: Mild steel, galvanised

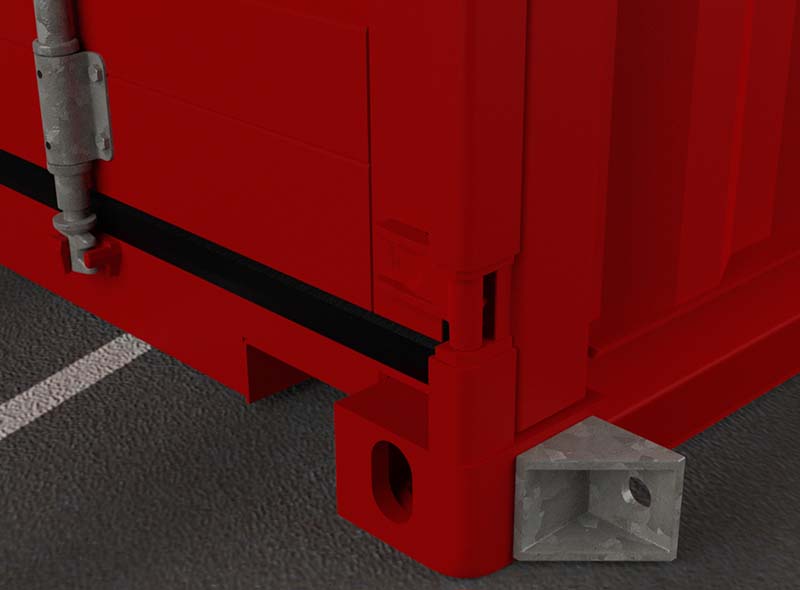

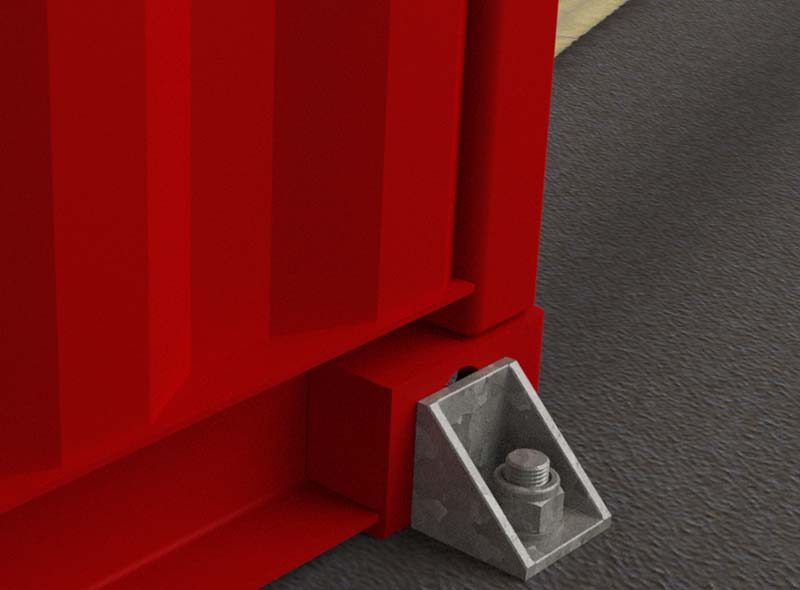

Use: Side twistlock for securing containers to decks or concrete pads etc by welding or bolting. Can be fitted before or after the container is in position. Images shown are for illustration only and may be subject to change.
Weight: 3.0 kg Commodity Code 830249 GTIN 5060345314878
