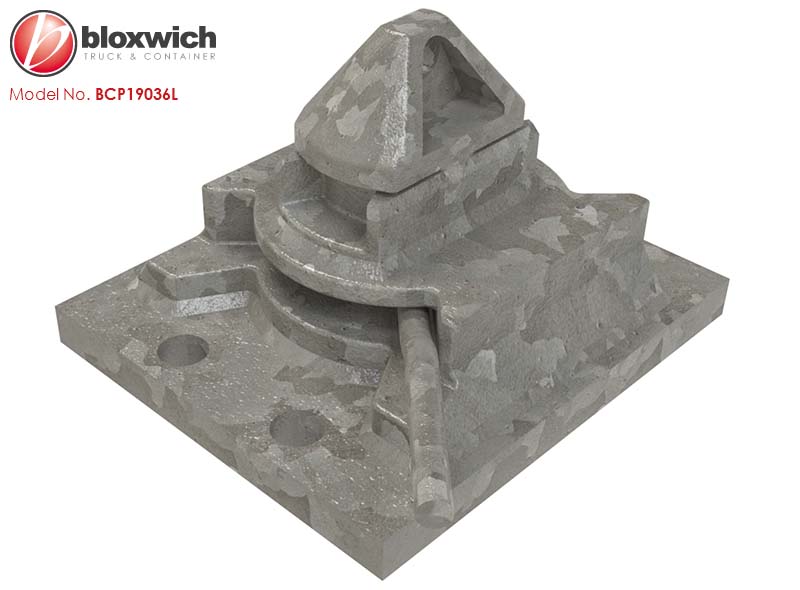

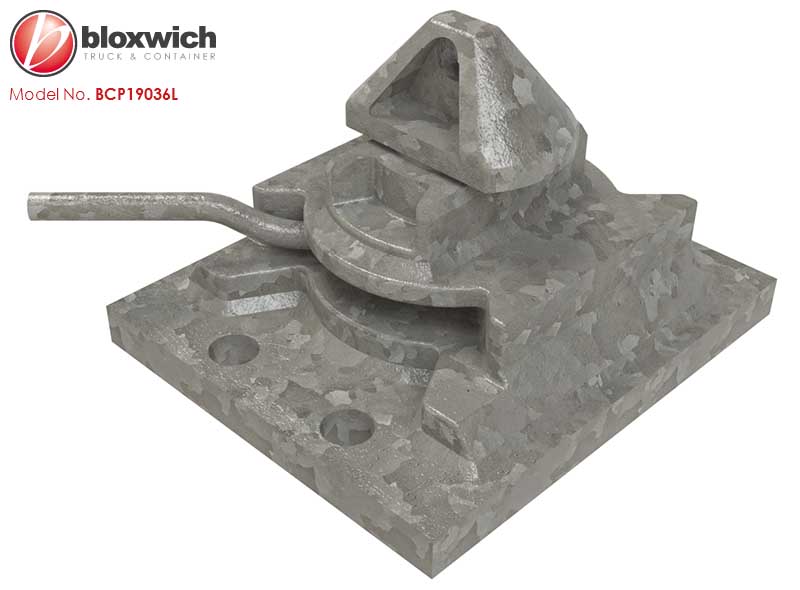

Bloxwich Standard Product: BCP19036L Bolt on LH Locked Dovetail Twistlock, MBL: 500 kN (tension) 420 kN (shear) 2000 kN (compression)
Supplied in: Galvanised
Use: Provides a bolt on removable twistlock for fixing containers in position when required.
Weight: 13.8 kg Commodity Code 830249 GTIN 5060345316179
Bloxwich can supply a copy of the type approval certificate (covers the BCP16029L Dovetail Twistlock 55° only).
Click
HERE to download the operating instructions
Fixing kit contains 4 M20 x 80 set screws (BCP24027), 8 flat washers (BCP24028) & 4 nyloc nuts (BCP24029) all are galvanised.
Click

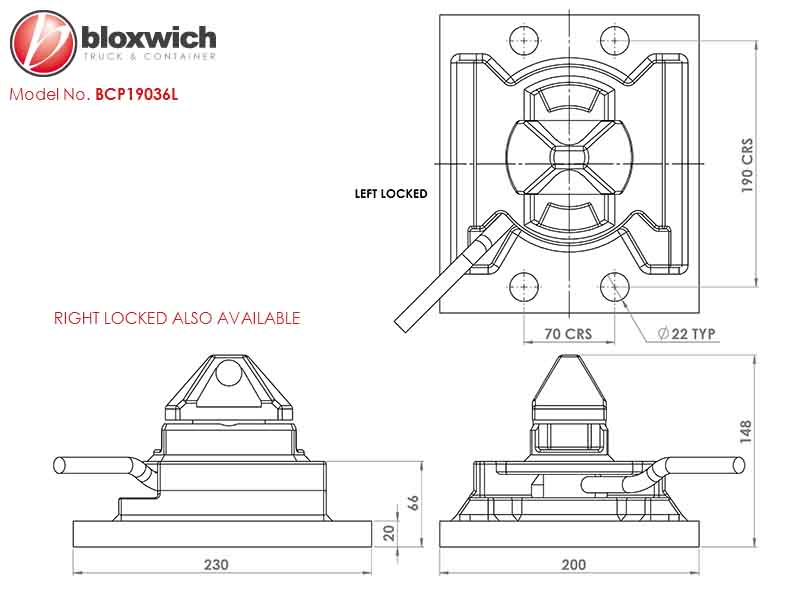

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
