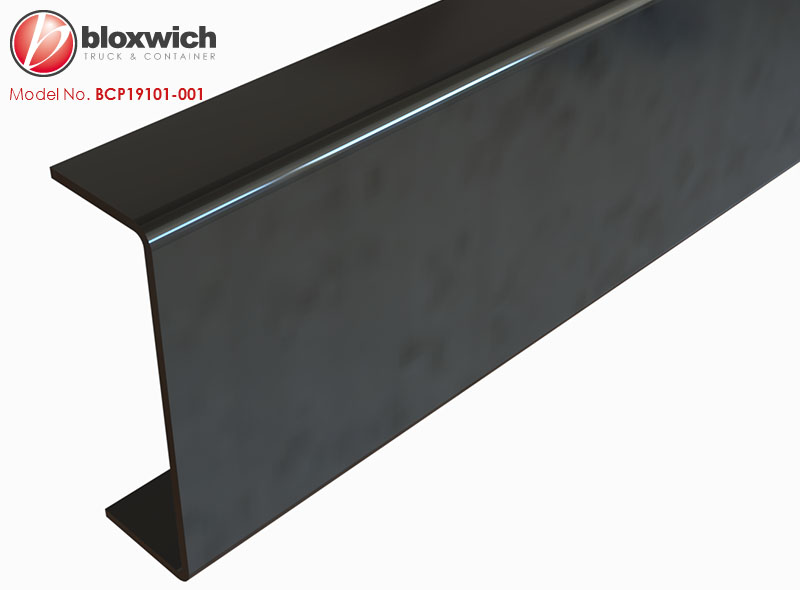

Bloxwich Standard Product: ISO Container Door Channel
Supplied in: Mild steel

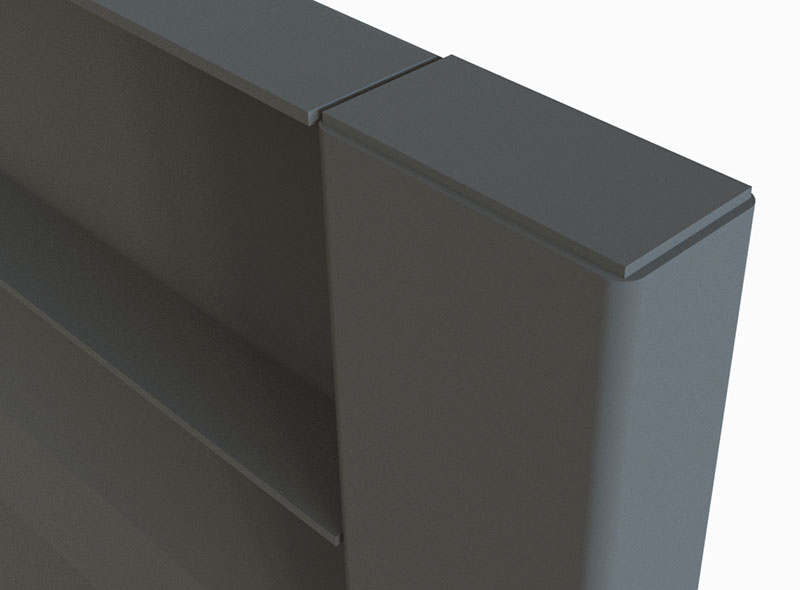

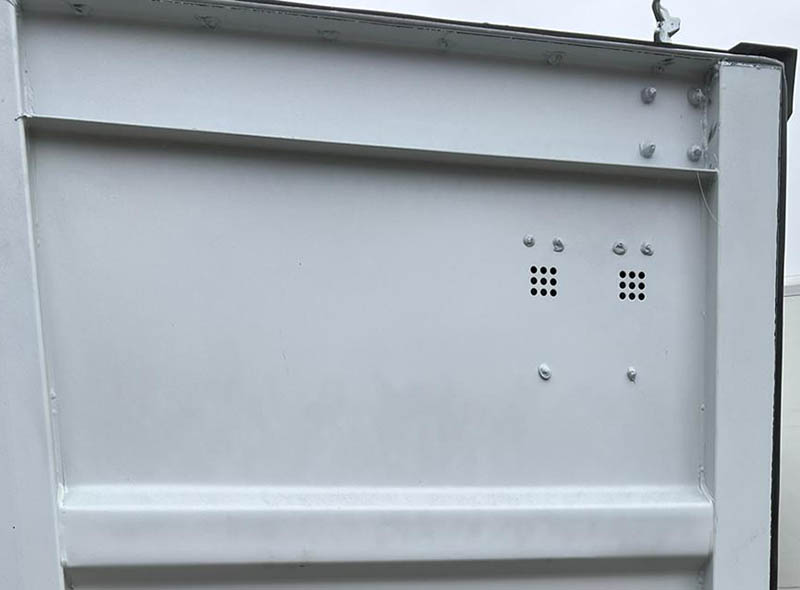

Use: Standard ISO container door pressed channel. Typically fitted to the top and bottom of shipping container doors. The use of channel allows the door gear bearing brackets to be placed close to the cams and keepers, they are then bolted through the door channels.
Weight: 7.0 kg Commodity No 830249 GTIN 5060345315417

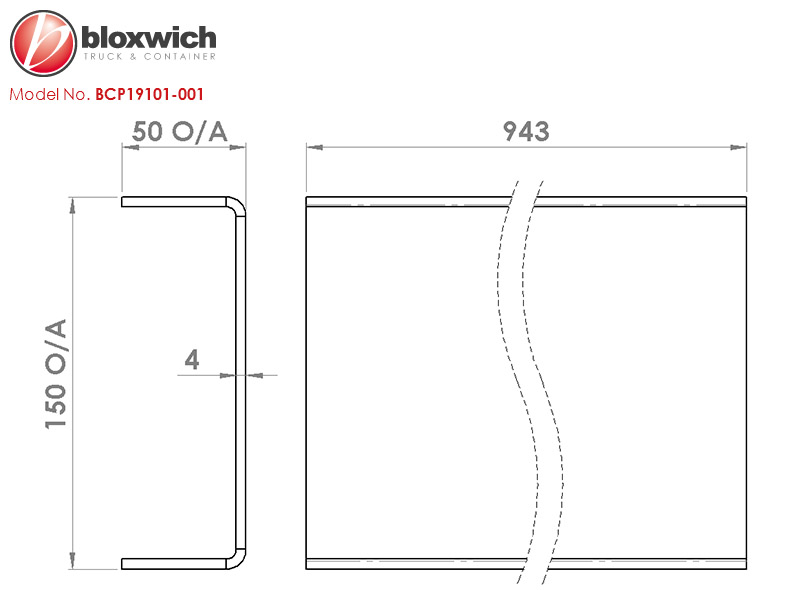

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
