Bloxwich Standard Patent Design: Mild Steel Door Handle Retainer Kit

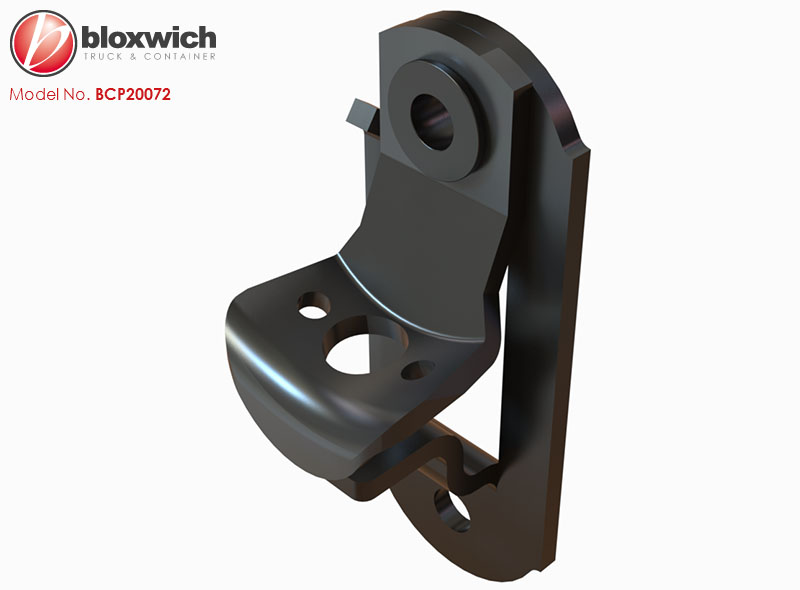

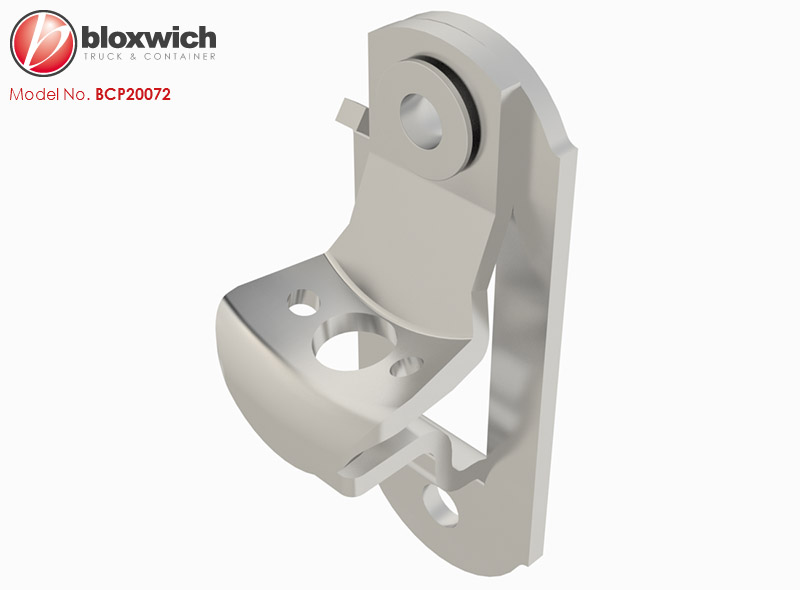

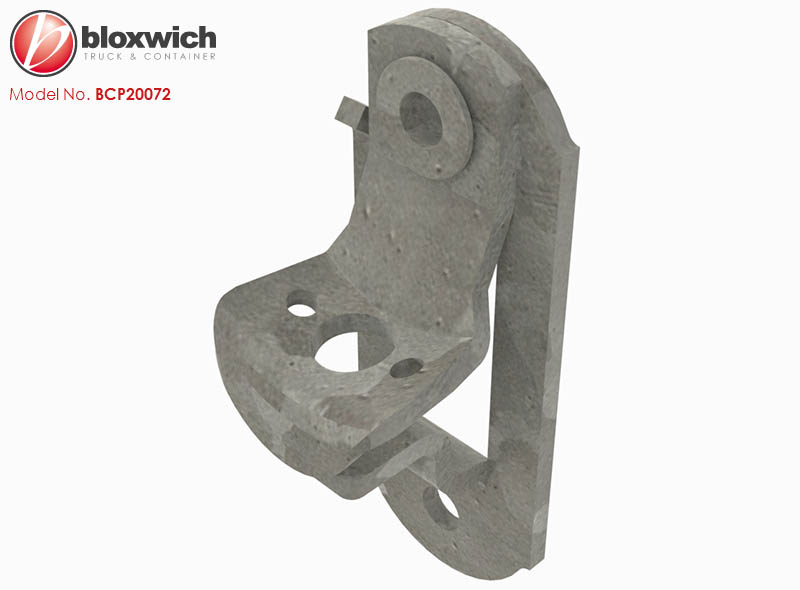

Supplied in: Self colour, zinc plated or galvanised. Parts supplied loose

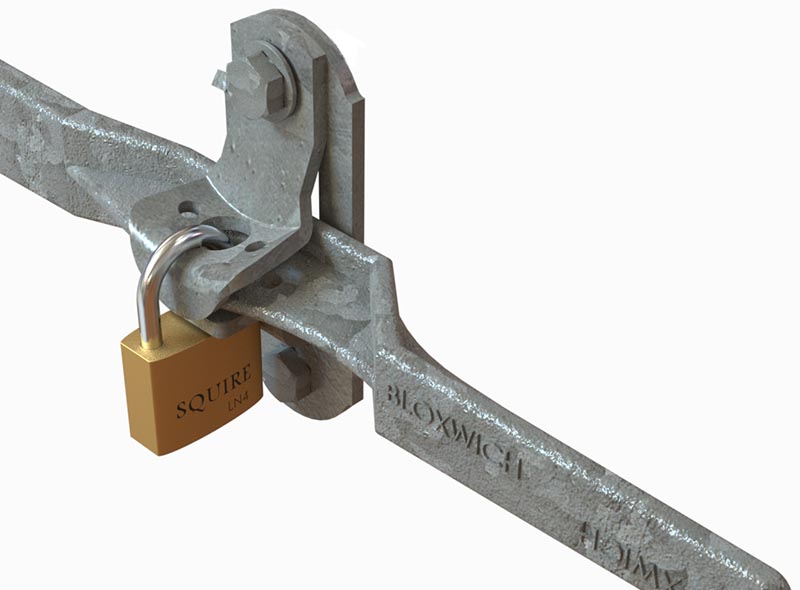

Use: Bolt-on door handle retainer assembly for securing the 22182M forged handle in the closed position. Greater security provided by additional padlock hole in the retainer meaning that padlocks will pass through the catch, handle and retainer when fitted
Weight: 342 g Commodity Code 830249 GTIN 5060345316018
Bush: 22185/Z Catch: BCP13856 Retainer: BCP14033
Contains 1 M10 x 35 set screw (BCP14887), 1 M10 x 30 set screw (BCP14886), 2 flat washers (BCP14885) & 2 nyloc nuts (BCP14884/G) all are galvanised.

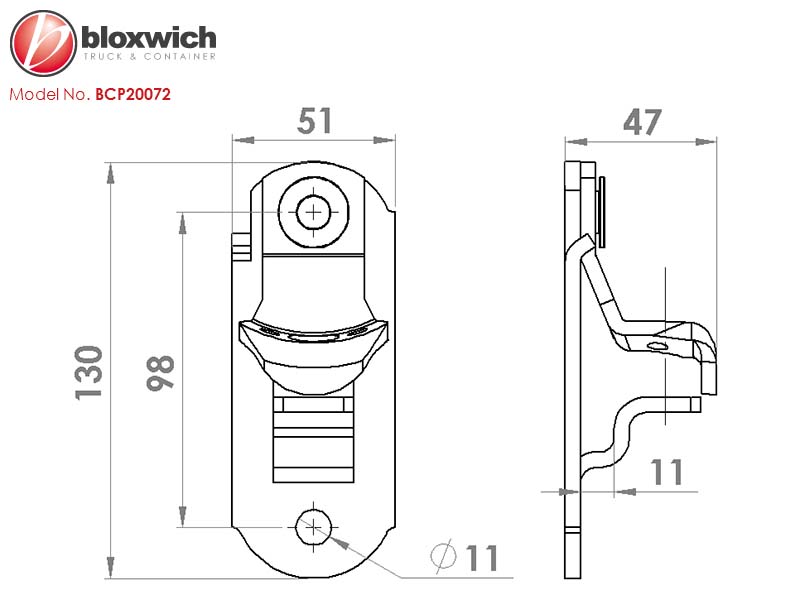

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
