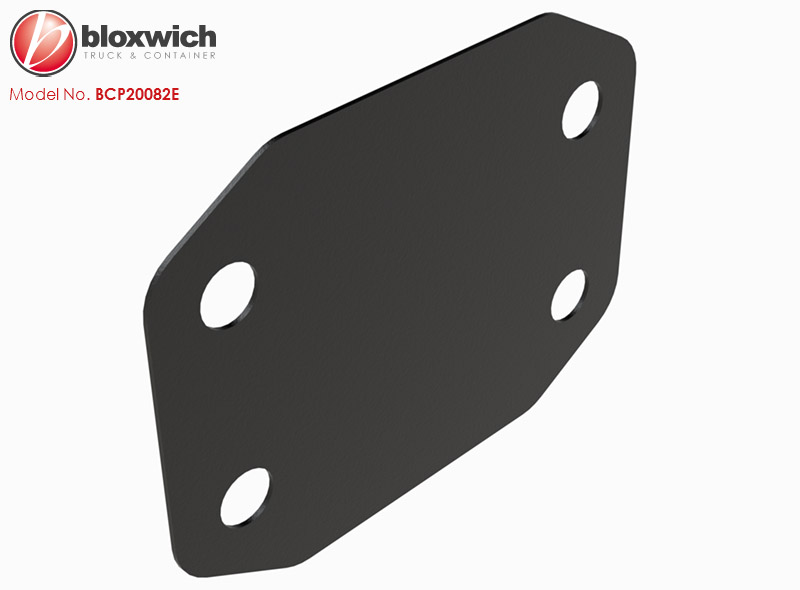

Bloxwich Standard Product: BCP20082E Bearing Bracket Inner/Outer Large Gasket
Supplied in: EPDM Rubber
Use: On BCP14063, 22080/22077 bearing brackets (part of B2000MN & B2000 ranges of door gear) to prevent door componentry from 'in service' abrasion with door surface, and possible 'galvanic' corrosion encountered when some dissimilar materials are in direct contact with each other. Others sizes available on request
Weight: 9 g Commodity No 400829 GTIN 5060345316278
Originally developed decades ago and now reintroduced by request
Click

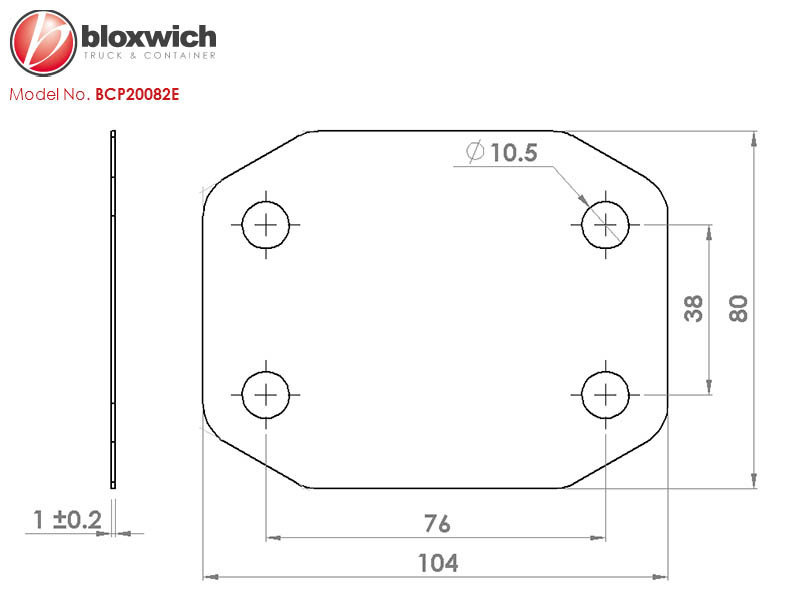

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
