Bloxwich Standard Product: BCP13616E Bearing Bracket Outer Large Gasket
Supplied in: EPDM Rubber
Use: On BCP11238 and BCSP11238 bearing brackets outer/inner (part of B1000, B1000M and BS1000 door gear) to prevent door componentry from 'in service' abrasion with door surface, and possible 'galvanic' corrosion encountered when some dissimilar materials are in direct contact with each other. Others sizes available on request
Weight: 7 g Commodity No 400829 GTIN 5060345316315
Originally developed decades ago and now reintroduced by request
Click

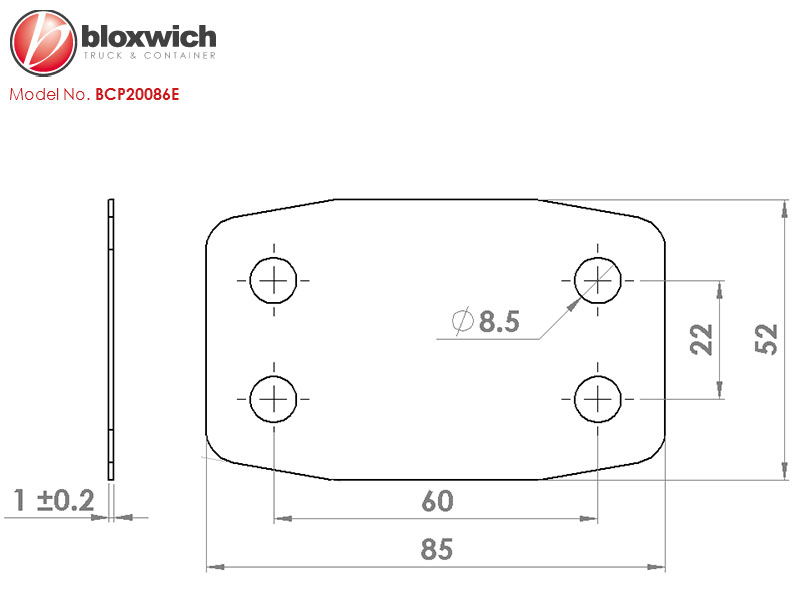

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
