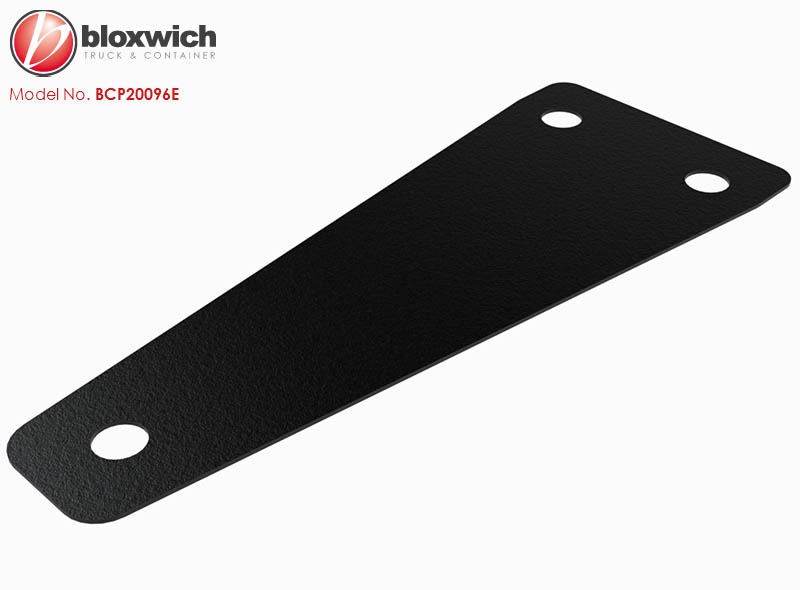

Bloxwich Standard Product: BCP20096E Hinge Gasket
Supplied in: EPDM Rubber
Use: On BCP13607 and BCSP13607 hinges to prevent door componentry from 'in service' abrasion with the door surface, and possible 'galvanic' corrosion encountered when some dissimilar materials are in direct contact with each other. Others sizes available on request
Weight: 12 g Commodity No 400829 GTIN 5060345316247
Originally developed decades ago and now reintroduced by request
Click

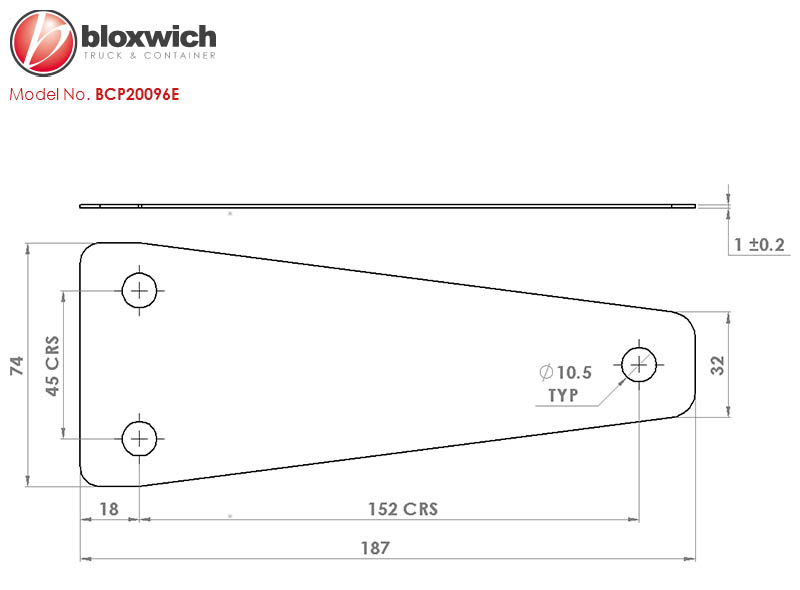

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
