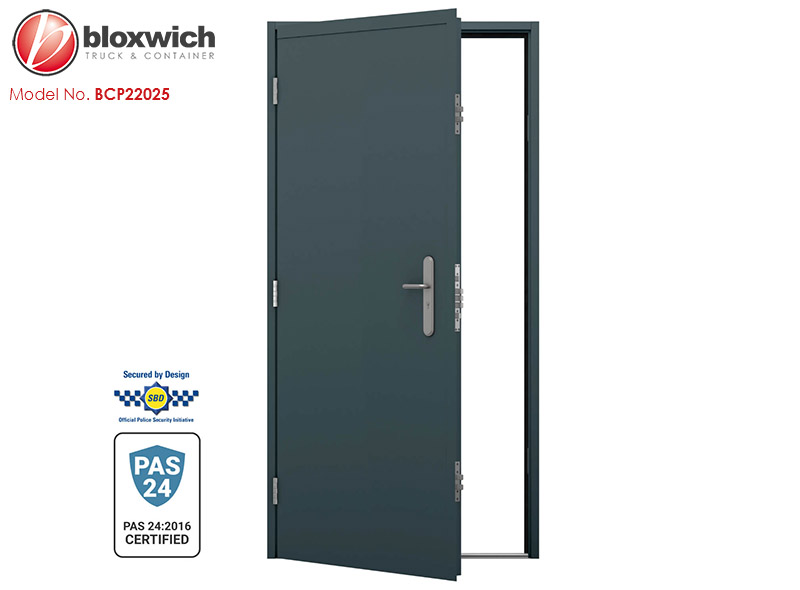

Bloxwich Standard Product: Anti-Vandal Shipping Container Personnel Door
Supplied in: 3mm welded astragal, galvanised steel construction, PU foam insulated door & frame, S/Steel ball bearing hinges, Genuine HOOPLY® locks & handle & 4mm weld mesh reinforcement, optional fully certified PAS 24:2016 upgrade.
Finish: Wet sprayed with a grey primer finish, our doors are prepped to take your final paint coat on-site. We recommend painting within 24 hours of install.
Construction: Manufactured with 1mm galvanised steel door skins and 2mm galvanised steel frames this anti-vandal door also has a 3mm thick astragal welded to the latching side and top of the door for additional security.
Insulation: Insulated with polyurethane foam (also known as PU foam), the door leaf AND frame are injected with PU foam for superior insulation values and improved strength and rigidity.
Internal reinforcements: A full subframe, weld mesh, door closer reinforcing plate and additional corner struts are welded inside the door for additional strength and integrity.

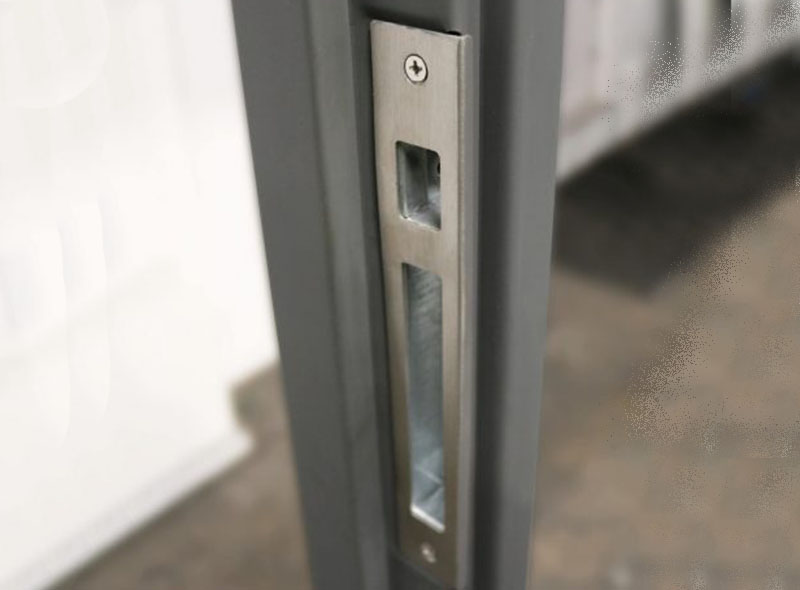

Locking System: Our trademark Genuine HOOPLY® multi point locking system is installed in our container doors. The locking system is also protected with 2mm lock boxes and stainless steel tubes to protect the connecting rods. An adjustable latch keep is integrated into the strike plate and lock box to allow for on-site adjustments.
Stainless Steel Threshold: This door has a stepped stainless steel threshold, standing approximately 35mm tall.
Use: For adding an anti-vandal personnel door anywhere on a shipping container as part of its manufacture or conversion to an office, accommodation unit or home etc. Can be used with the BCP22027 Shipping Container Personnel Door Goal Post Frames (supplied separately).
Other options are available on request, please contact us.
Weight: 80.0 kg Commodity No 730830 GTIN 5060345317060
Door Type: Anti-Vandal Shipping Container Door
Available Sizes (mm): 910×2065
Finish: Grey primer ready for painting
Door Frame Material: 2.0mm Galvanised steel
Door Frame Depth: 90mm
Door Leaf Material: Double skinned 1.0mm galvanised steel
Door Leaf Depth: 45mm
Door Leaf Core: High Density Polyurethane Foam Insulation
Hinges: 910×2065 - 3 Stainless Steel Ball Bearing Hinges

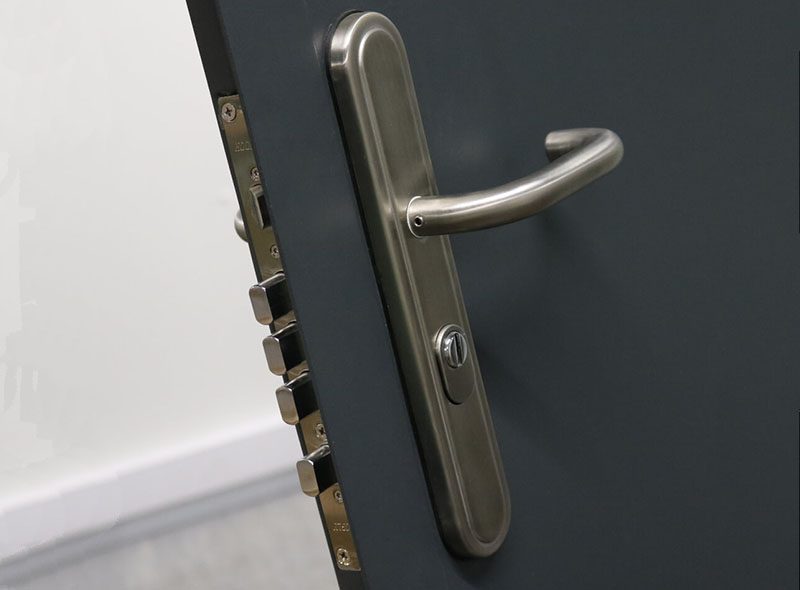

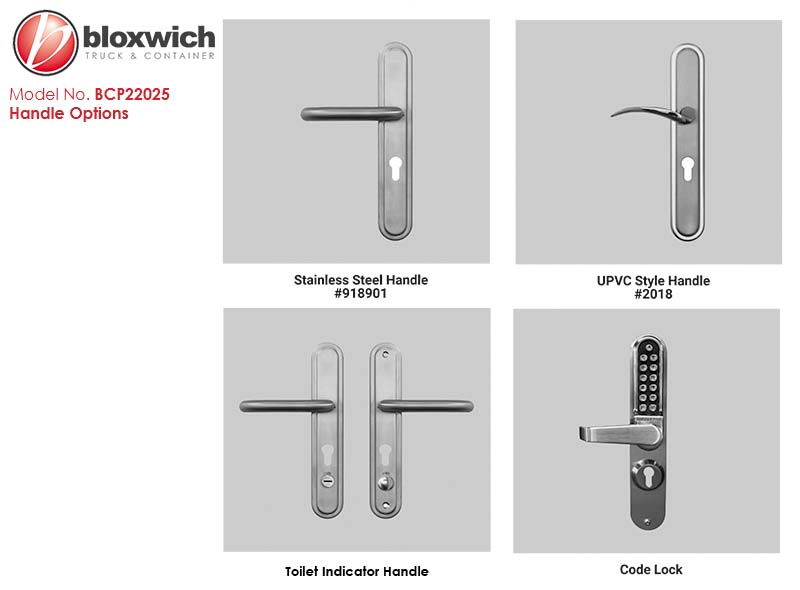

Handles: Genuine HOOPLY® stainless steel handles
Cylinder: Thumb turn euro cylinder lock

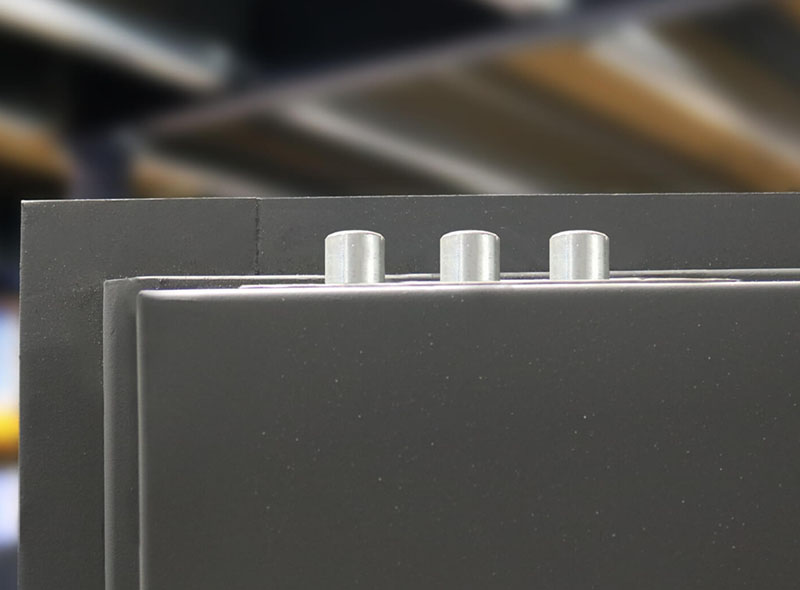

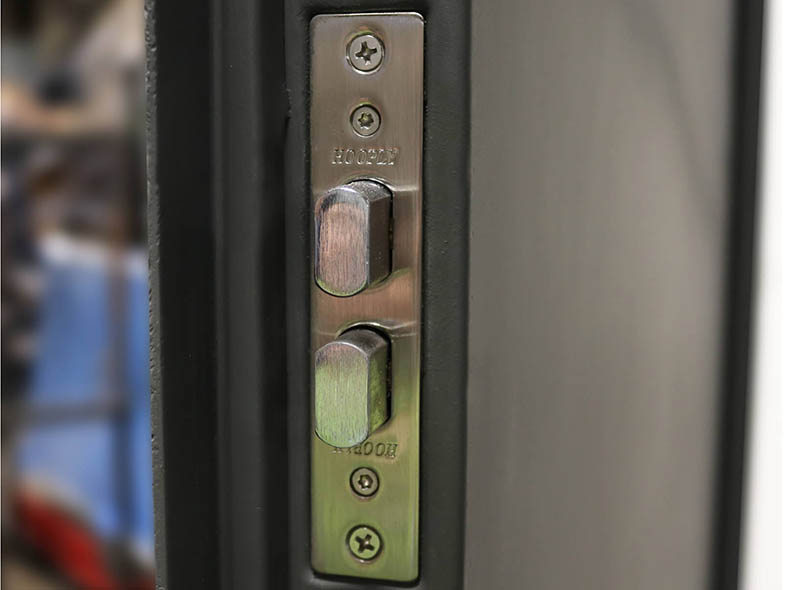

Locks or Door Furniture: Genuine HOOPLY® multi-point locking system
Seal: Weather / draught proof seals
Dog Bolts: 4 Dog bolts
Threshold: Stepped stainless steel threshold

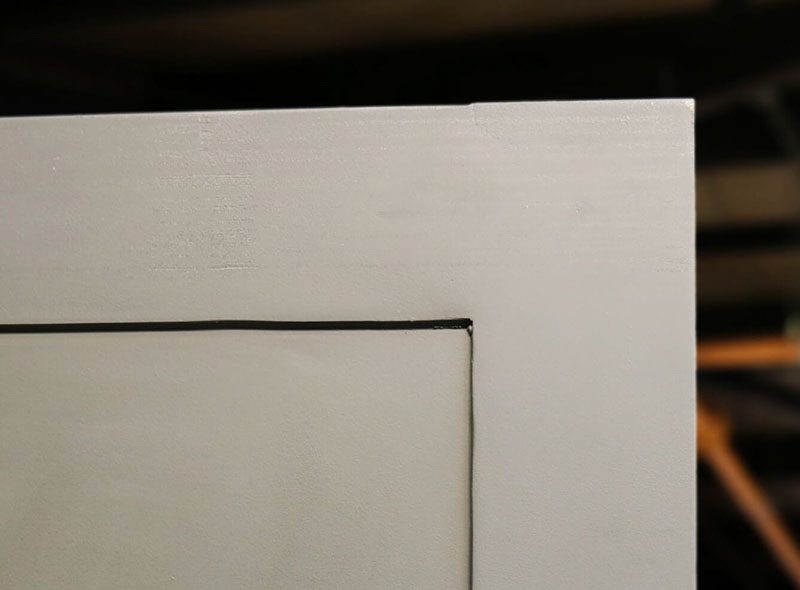

Astragal: 3mm thick security flange
Construction: Fully welded construction
Security Type: Standard
CE Certification: Yes
Security Certification: Pending
Fire Rating Certification: None
External or Internal Use: Suitable for external use
Due to the size of this product, at the checkout "Shipping And Handling/Class of Service" page our website defaults to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.
Click

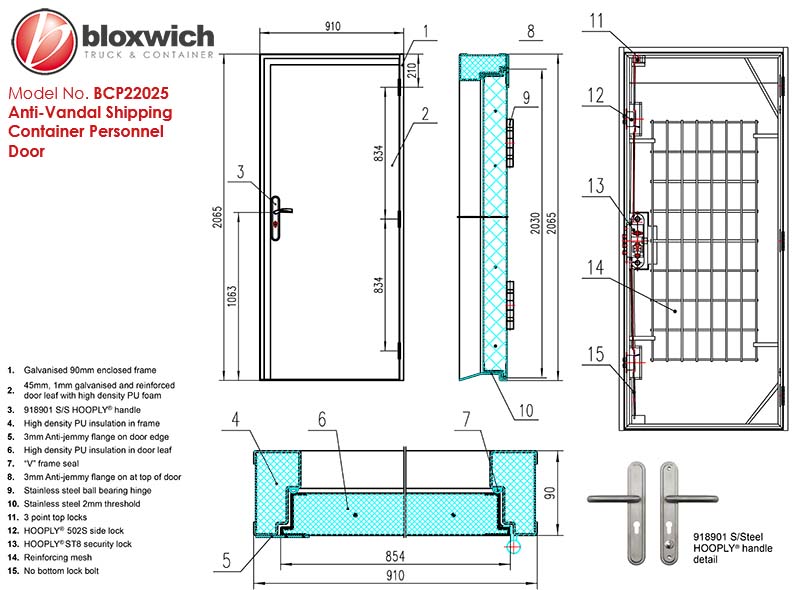

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
