PLEASE CONTACT US TO GET THE ETA OF THE NEXT CONTAINER

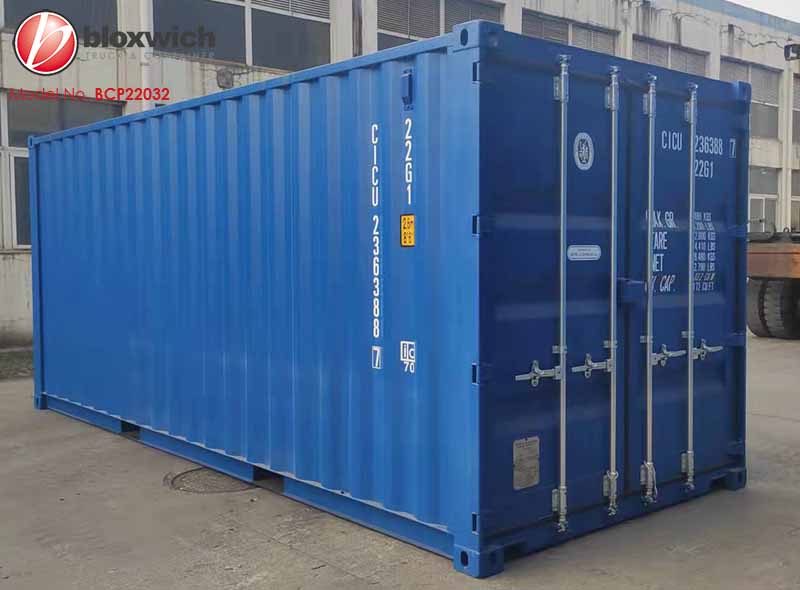

CIMC 20' General Purpose Container Single Trip

Supplied in: Corten steel panels & members, with stainless steel hinge pins & data plate, EPDM door gaskets, plywood board floor, zinc plated floor screws, galvanised fasteners & door gear and ABS vents. Shot blasted to Swedish Standard SA 2 1/2 to remove all rust, dirt, mill scale and all other foreign materials. 4 coat exterior paint system, 3 coat interior and sub structure.

Use: CIMC standard 20' x 8' x 8'6" (6058mm x 2438mm x 2591mm) general purpose shipping container. Single trip/one way container to the UK with CIMC panels etc for Bloxwich. For intermodal transport of goods, storage or conversion. Buyer to collect.

Weight: 2000.0 kg TARE, 28480kg PAY, 30480kg MGW  Commodity No 860900   GTIN 5060345317343

Design Temp: -40°C(-40°F) to +70°C(+158°F)
Classification Society: Bureau Veritas
ISO Container Standards (1CC type): ISO 668, ISO 830, ISO 1161 & ISO 1496-1
T.I.R. Certification: All the containers will be certified and complied with "The Customs Convention on the International Transport of Goods under the cover of T.I.R. Carnets." or "The Customs Convention on Containers."

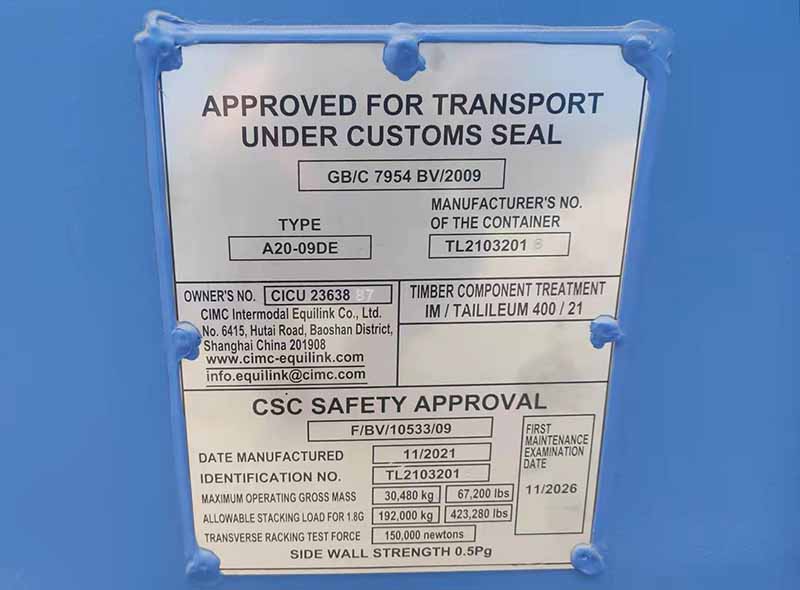

C.S.C. Certification: All the containers will be certified and complied with the requirements of the "International Convention for the Safe Containers."
T.C.T. Certification: All exposed wooden components used for container will be treated to comply with the requirements of "Cargo Containers-Quarantine Aspects and Procedures" of the Commonwealth Department of Health, Australia.
U.I.C. Registration: All the containers will be registered and complied with the "International Union of Railways."
Floor: 28 mm thick hardwood plywood boards
Exterior Surface Paint System: Zinc rich primer 10 µm, W/B zinc rich primer 20 µm, W/B Epoxy primer 40 µm, W/B Acrylic top coating 40 µm
Interior Surface Paint System: Zinc rich primer 10 µm, W/B zinc rich primer 20 µm, W/B Epoxy top coating 45 µm
Under Structure Paint System: Zinc rich primer 10 µm, W/B zinc rich primer 20 µm, Bitumen 150 µm
Lockbox: Yes
Seal Cam & Keeper: Yes

Please click HERE to contact us and we can email the full container specification and certification.

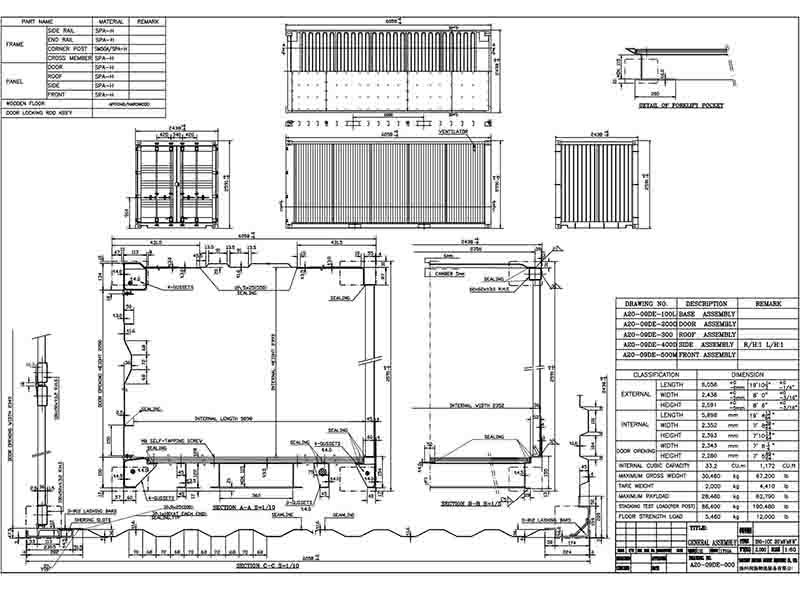

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
