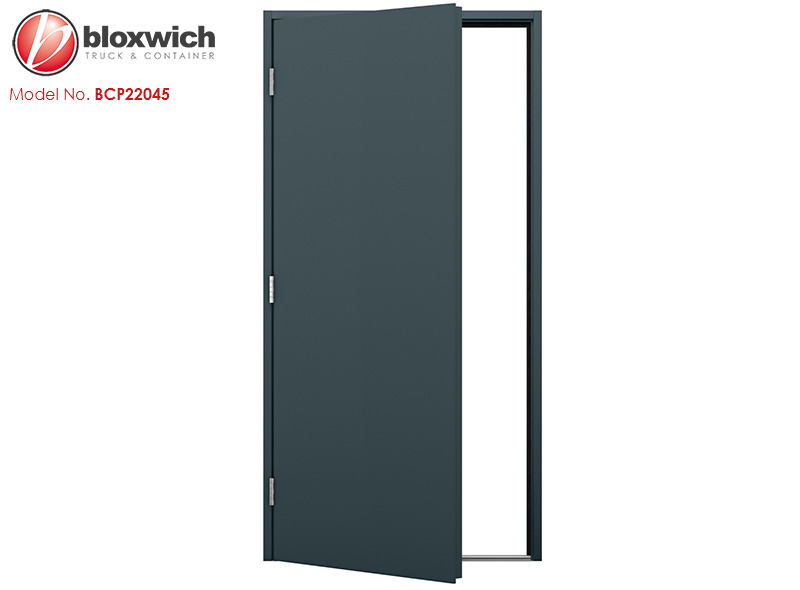

Bloxwich Standard Product: Shipping Container Blank Door
Supplied in: Galvanised steel construction, PU foam insulated door & frame, S/Steel ball bearing hinges & 4mm weld mesh reinforcement.
Finish: Wet sprayed with a grey primer finish, our doors are prepped to take your final paint coat on-site. We recommend painting within 24 hours of install.
Construction: Manufactured with 1mm galvanised steel door skins and 2mm galvanised steel frames.
Insulation: Insulated with polyurethane foam (also known as PU foam), the door leaf AND frame are injected with PU foam for superior insulation values and improved strength and rigidity.

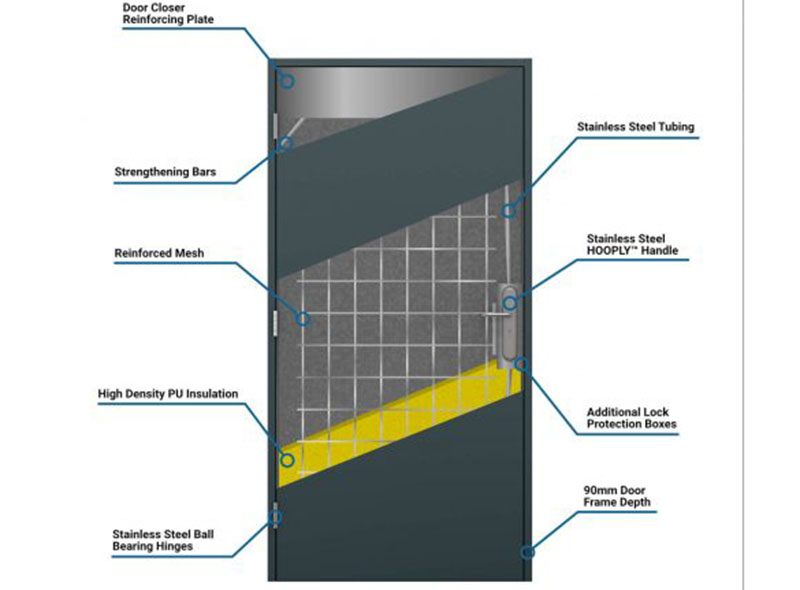

Internal reinforcements: A full subframe, weld mesh, door closer reinforcing plate and additional corner struts are welded inside the door for additional strength and integrity.

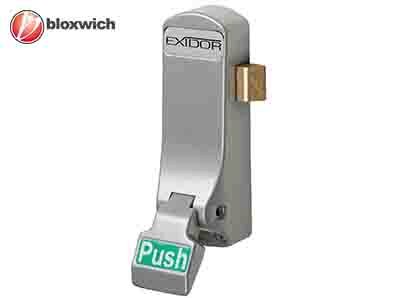

Locking System: No locking system is supplied with these doors, instead they are ready to accept panic hardware (optional).

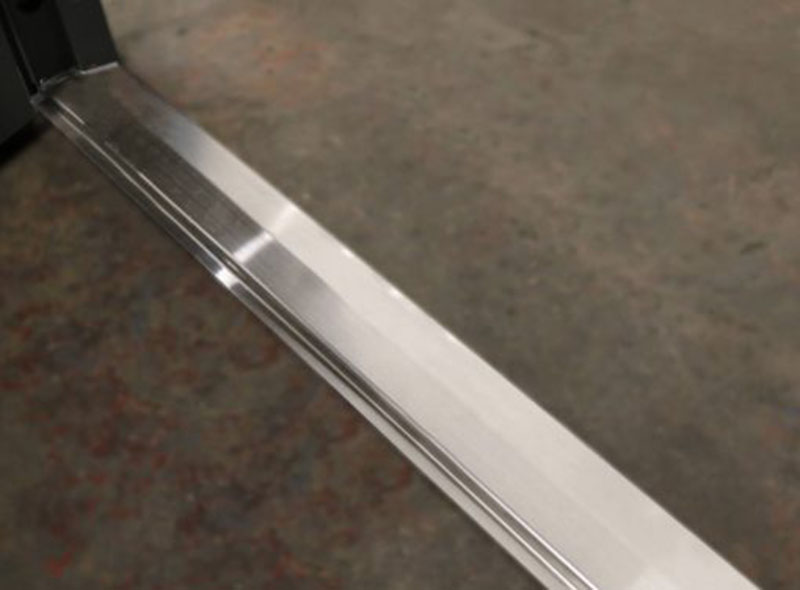

DDA Compliant Threshold: This door complies with the Disability Discrimination Act by having a level threshold with a maximum upstand of only 12mm with chamfered edges. The threshold is manufactured from stainless steel.
Use: For adding a fire exit/emergency escape door anywhere on a shipping container as part of its manufacture or conversion to an office, accommodation unit or home etc. Can be used with the BCP22027 Shipping Container Personnel Door Goal Post Frames (supplied separately).
Other options are available on request, please contact us.
Weight: 68.0 kg Commodity No 730830 GTIN 5060345316957
Door Type: Shipping Container Blank Door
Available Sizes (mm): 910×2065
Finish: Grey primer ready for painting
Door Frame Material: 2.0mm Galvanised steel
Door Frame Depth: 90mm
Door Leaf Material: Double skinned 1.0mm galvanised steel
Door Leaf Depth: 45mm
Door Leaf Core: High Density Polyurethane Foam Insulation

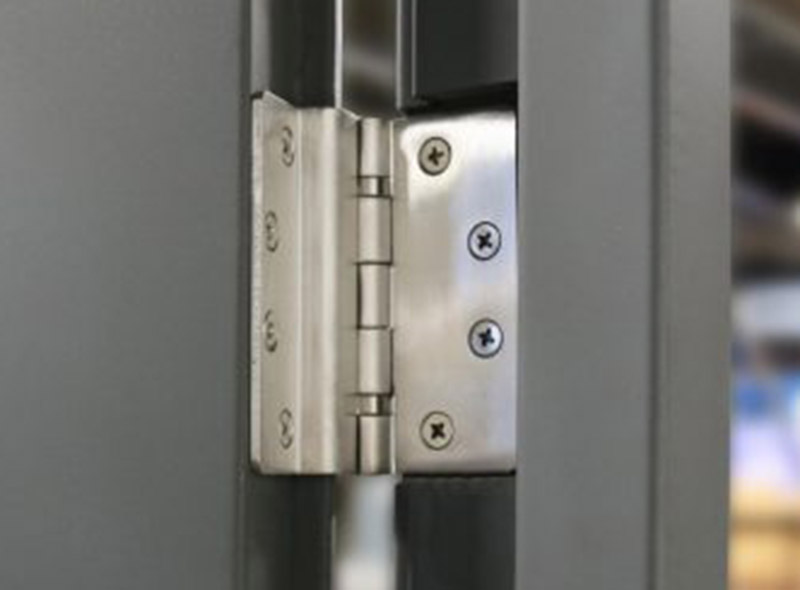

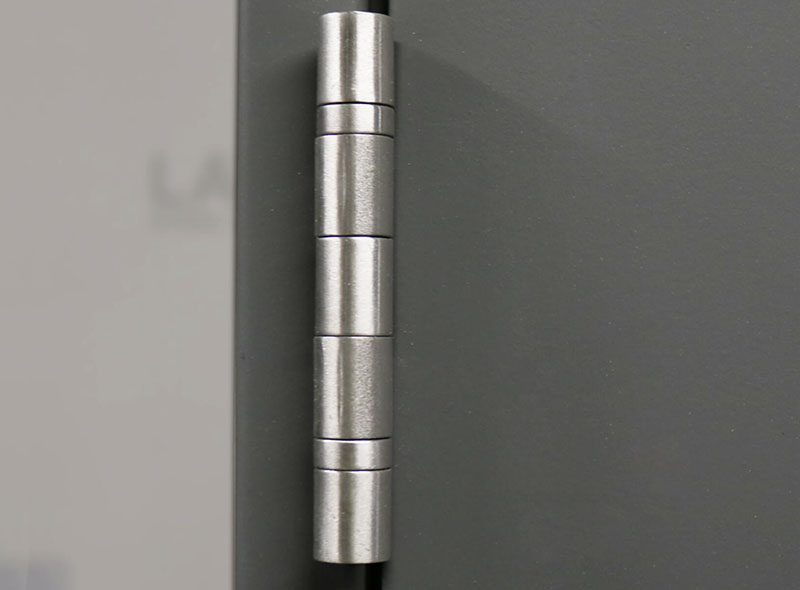

Hinges: 910×2065 - 3 Stainless Steel Ball Bearing Hinges
Seal: Weather / draught proof seals
Dog Bolts: 4 Dog bolts
Threshold: DDA (Disability Discrimination Act) compliant threshold
Construction: Fully welded construction
Security Type: Standard
CE Certification: Yes
Security Certification: Yes
Fire Rating Certification: None
Due to the size of this product, at the checkout "Shipping And Handling/Class of Service" page our website defaults to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.

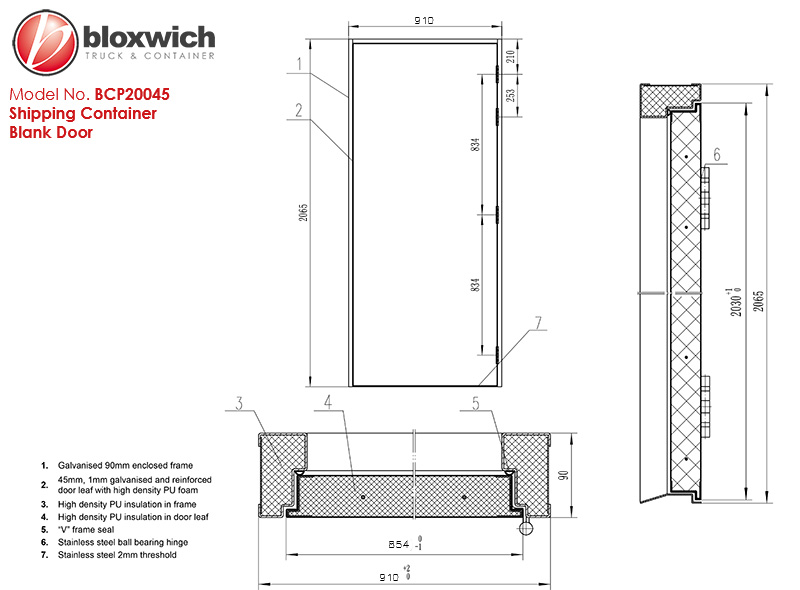

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
