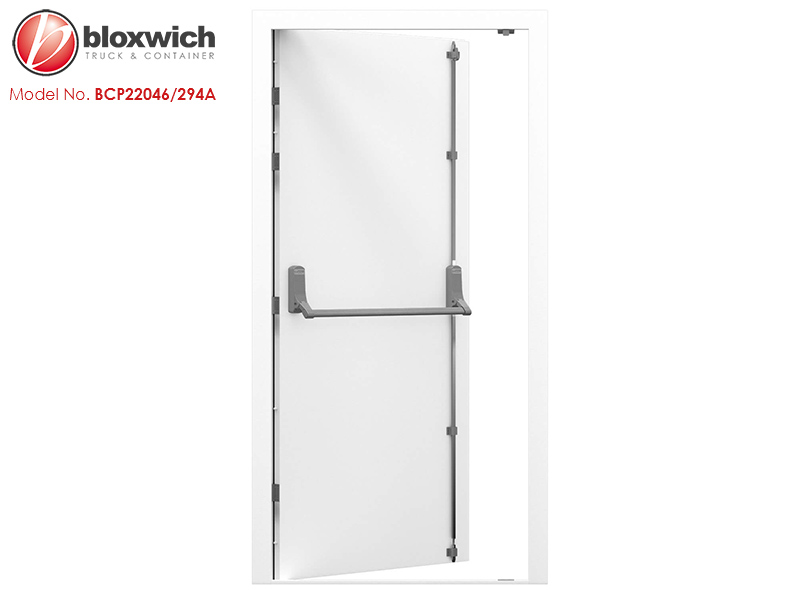

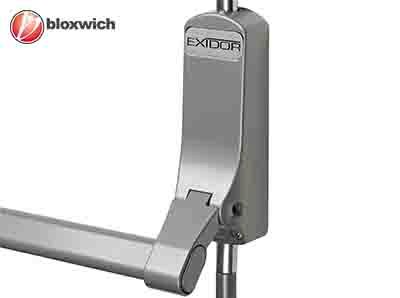

Bloxwich Standard Product: BCP22046/294a Exidor 2 Point Adjustable Panic Bar
Supplied in: Silver powder coat and zinc plated finish.
Use: 2 Point Ajustable Panic Bar/fire escape door hardware. Non-handed, surface mounted and fire rated for use on timber and steel doors.

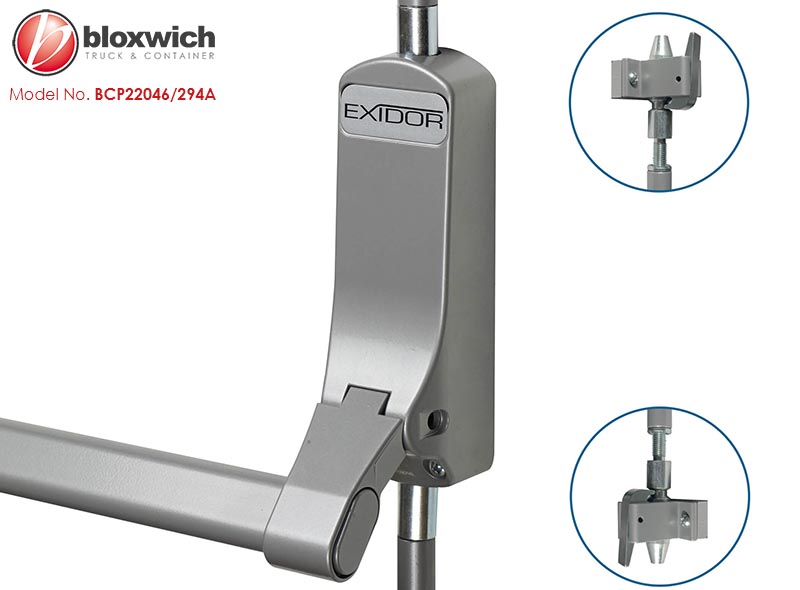

The main body is fitted with an antithrust device, which prevents leverage of both the top and bottom shoot bolts from their sockets and also incorporated as standard is an automatic top trip and easy clean floor socket.
Weight: 4.4 kg Commodity No 761010 GTIN 5060345317114
Certification: BS EN179 / BS EN1125
Max Door Sizes: 1220mm wide X 2440mm high
Activation: Push bar
Door opening: Outward
No. of locking points: 2
Bolt style: Shoot bolts
Durability: 200,000 cycles
Max door mass: Up to 200kg

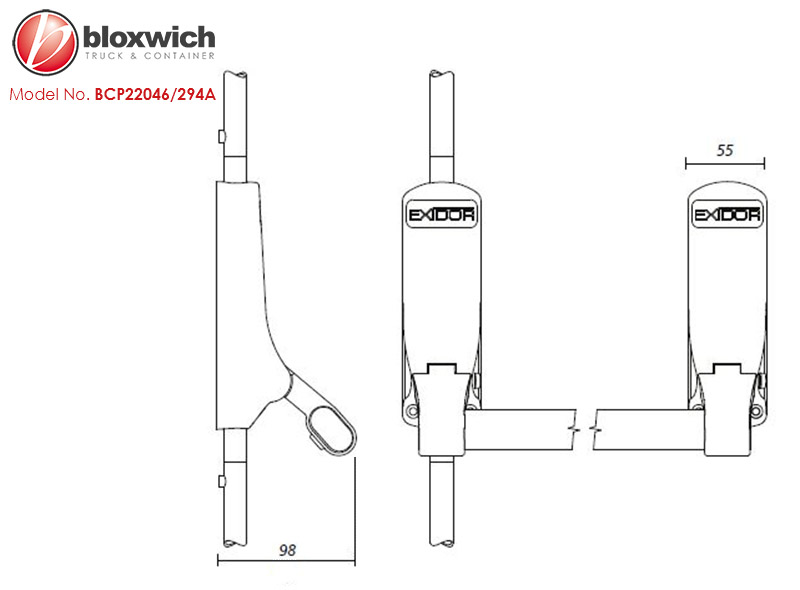

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
