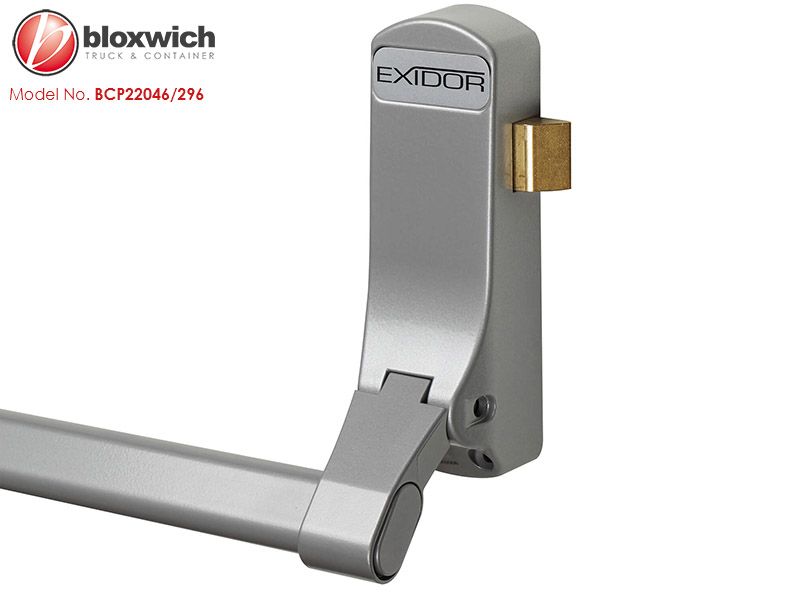

Bloxwich Standard Product: BCP22046/296 Exidor Panic Bar Latch
Supplied in: Silver powder coat finish.

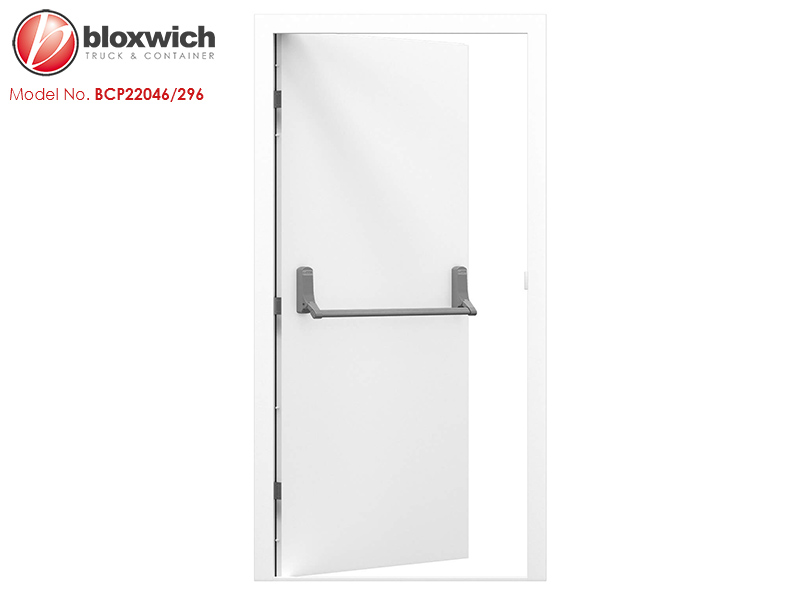

Use: Single door panic bar with latch/fire escape door hardware. Non-handed, surface mounted and fire rated for use with the BCP22045 shipping container blank doors or on any other timber and steel doors.
The main body is fitted with an antithrust mechanism to protect against attack. Operation: Pushing the bar down into the door face retracts the latch. Releasing the bar returns the latch to the rest position.
Weight: 2.9 kg Commodity No 761010 GTIN 5060345317114
Certification: BS EN179 / BS EN1125
Max Door Width: 1220mm
Activation: Push bar
Door opening: Outward
No. of locking points: 1
Bolt style: Latch
Durability: 200,000 cycles
Max door mass: Up to 200kg
Click

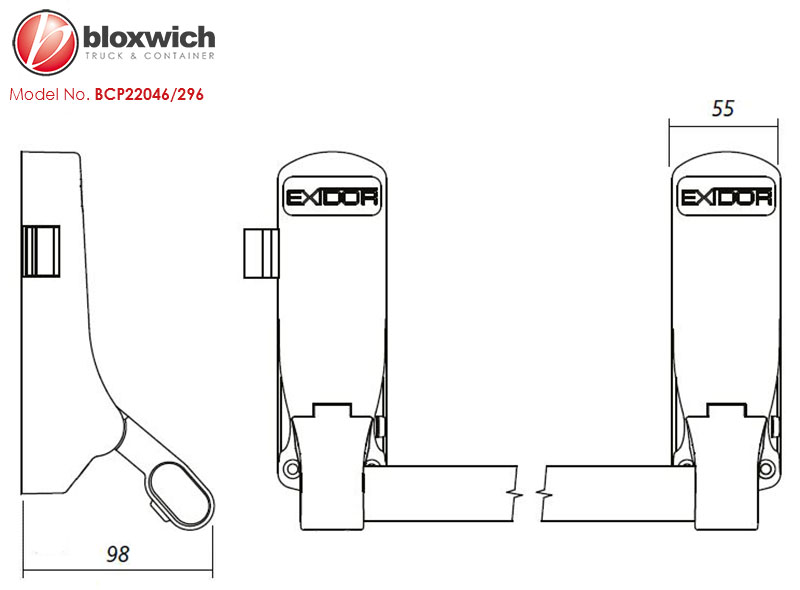

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
