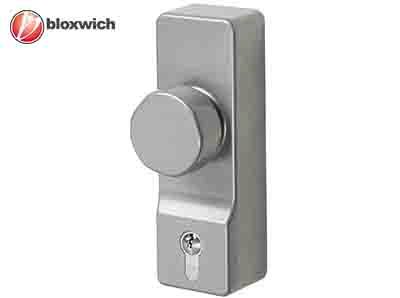

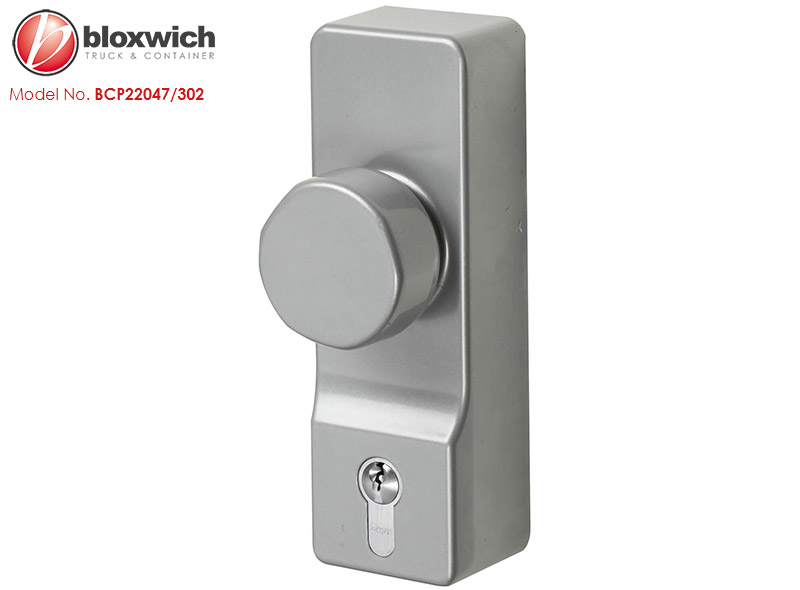

Bloxwich Standard Product: BCP22047/302 Exidor Knob Operated Outside Access Device
Supplied in: Silver powder coat finish with three keys.

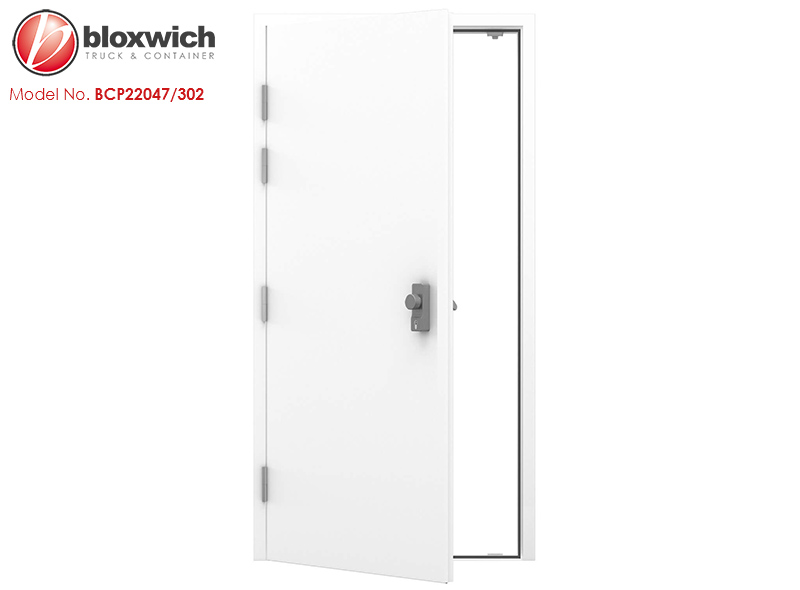

Use: Single door knob operated outside access device for use along with Exidor 200 series panic bars (BCP22046/294A, BCP22046/296, & BCP22046/297). Non-handed, surface mounted (on the outside of the door using concealed machine screws) and fire rated for use with the BCP22045 shipping container blank doors or on any other timber and steel doors.
Operation: When unlocked rotating the knob retracts the internal bolts/latches. Releasing the knob returns the internal bolts/latches to the rest position. The knob remains engaged until it is re-locked. When locked, the mechanism is disengaged allowing the knob to freely rotate.
Weight: 1.1 kg Commodity No 761010 GTIN 5060345317121
Certification: BS EN179 / BS EN1125
Max Door Width: 1220mm
Activation: Knob handle
Door opening: Outward
Max door mass: Up to 200kg

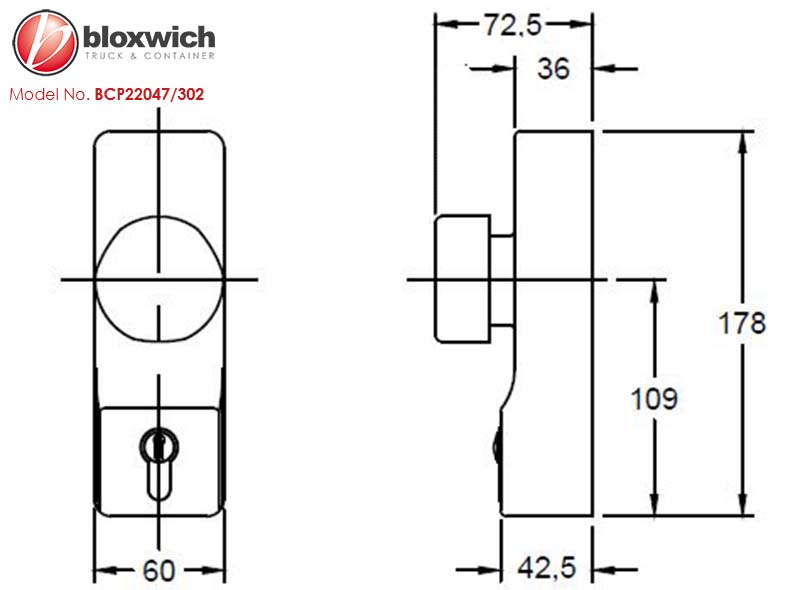

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
