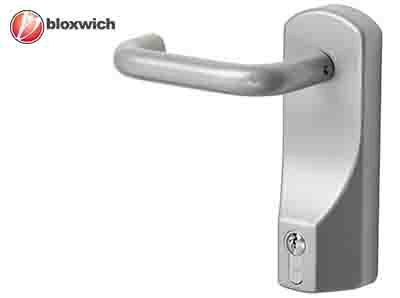

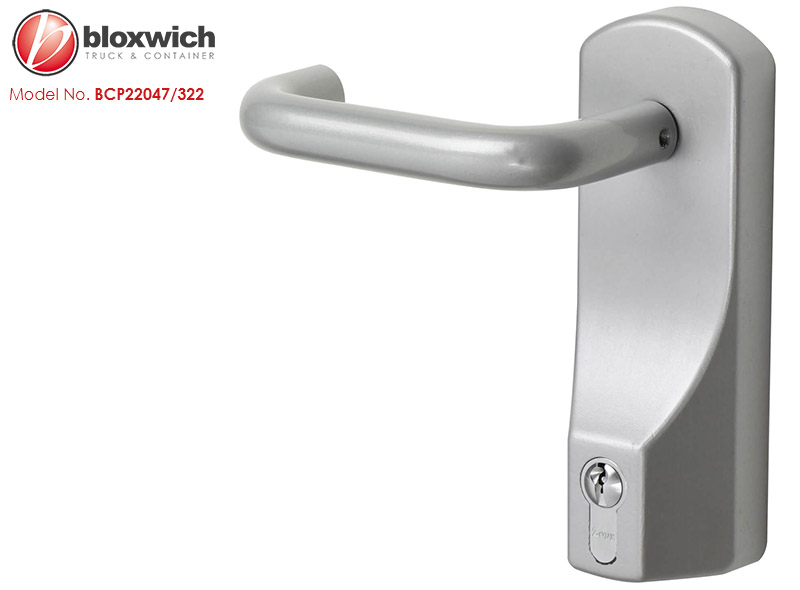

Bloxwich Standard Product: BCP22047/302 Exidor Lever Handle Operated Outside Access Device
Supplied in: Silver powder coat finish with three keys.

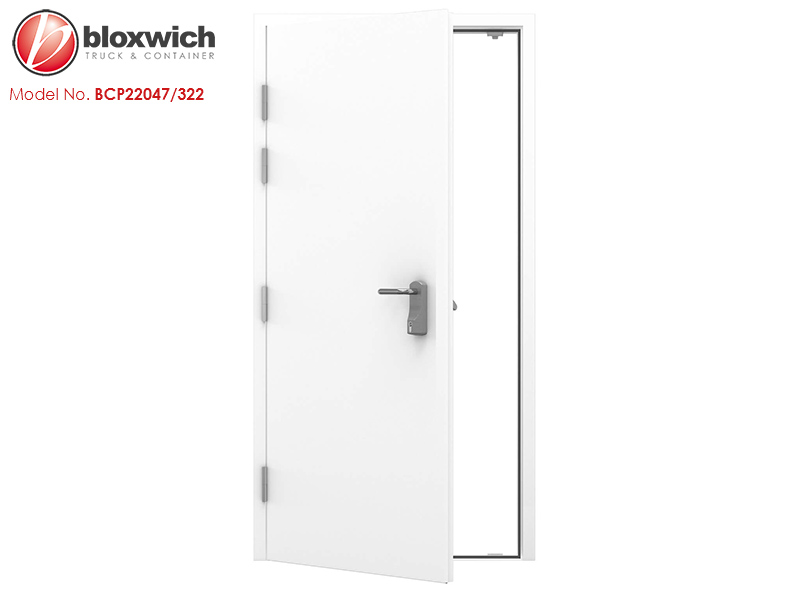

Use: Single door lever handle operated outside access device for use along with Exidor 200 series panic bars (BCP22046/294A, BCP22046/296, & BCP22046/297). Non-handed, surface mounted (on the outside of the door using concealed machine screws) and fire rated for use on timber and steel doors.
Operation: When unlocked pushing the lever down retracts the internal bolts/latches. Releasing the lever returns the internal bolts/latches to the rest position. The lever remains engaged until it is re-locked. When locked, the mechanism is disengaged and the lever is fixed in the horizontal position and the shear screw is designed to break under excessive force to prevent unauthorised entry.
Weight: 1.3 kg Commodity No 761010 GTIN 5060345317121
Certification: BS EN179 / BS EN1125 & BS 8300
Max Door Width: 1220mm
Activation: Lever handle
Door opening: Outward
Max door mass: Up to 200kg

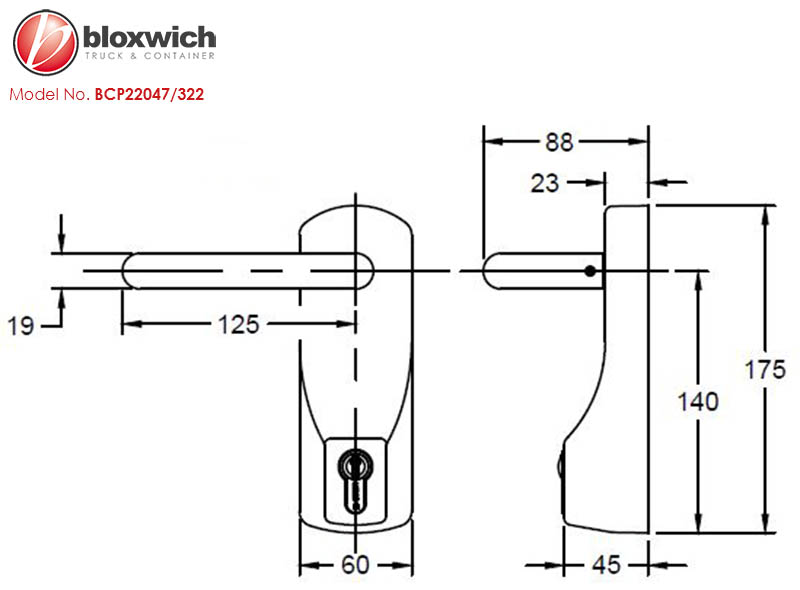

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
