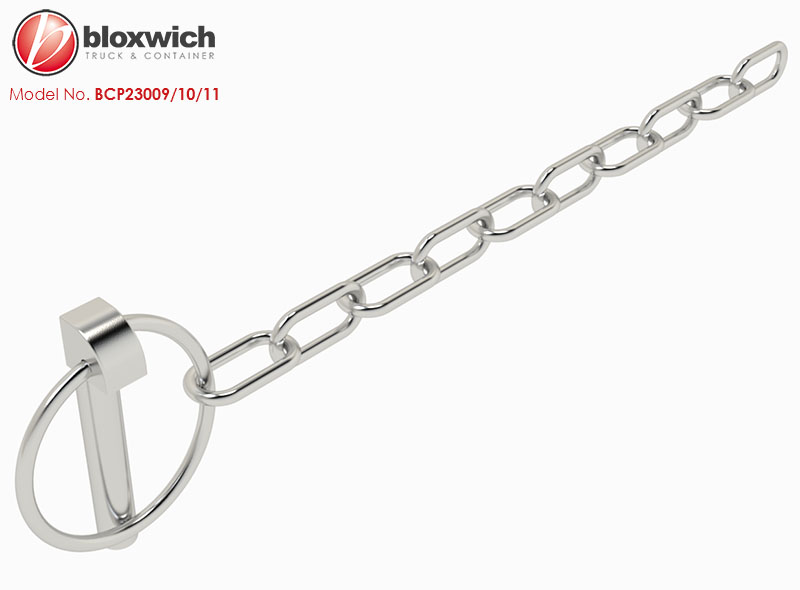

Bloxwich Standard Product: Lynch Pin & Chain Assembly
Supplied in: Mild steel zinc plated
Use: Ø6, 8 or 10mm lynch pins with a length of Ø3 x 21 chain to secure thme in pace nad ensude they dont get lost. Other sizes, materials and combinations available on request. BCP23009, 10 & 11/10 & 11 link versions listed here but any number of links is possible, please contact us for details.
Weight: 58 g/67 g/80 g Commodity Code 830249 GTIN 5060345317411

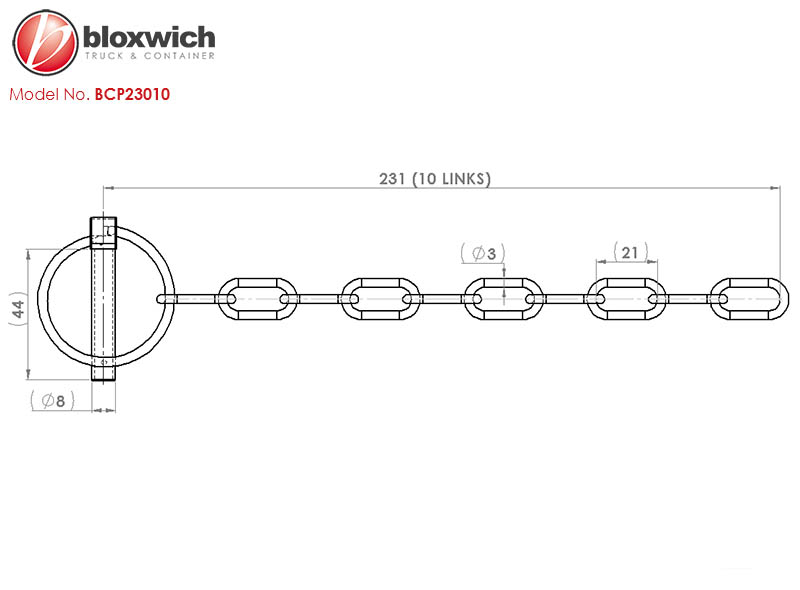

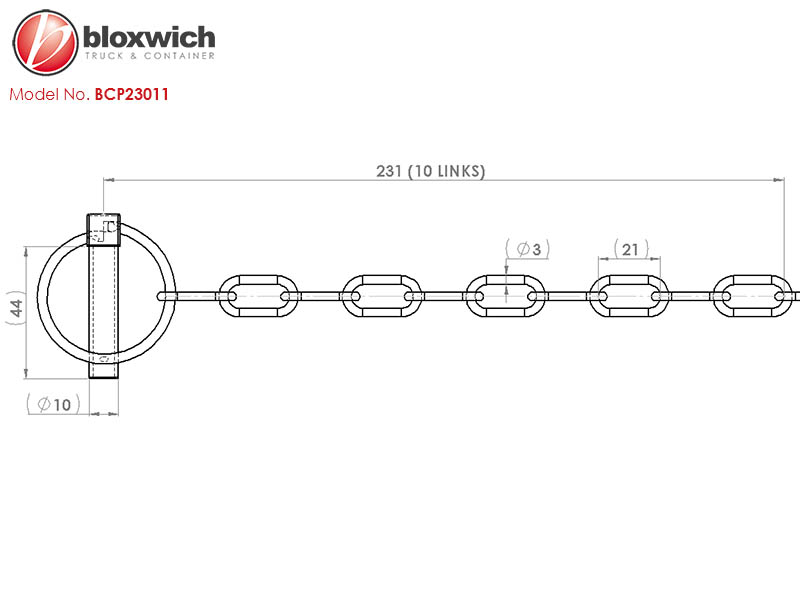

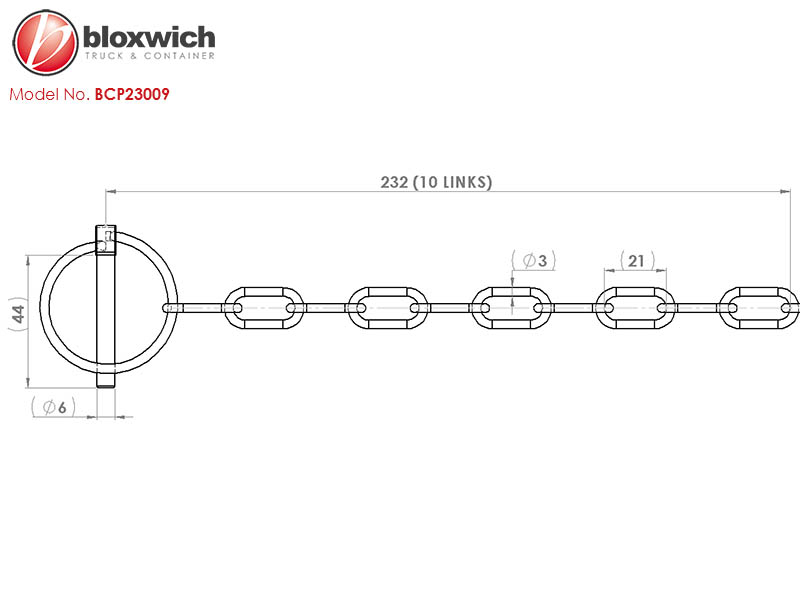

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
