Bloxwich Standard Product: Standard ISO 50mm Tow Ball EC Approved

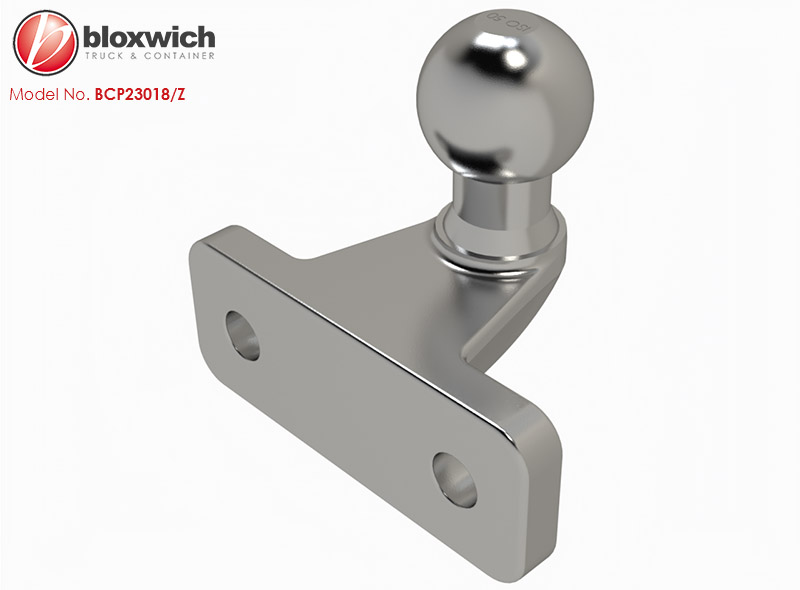

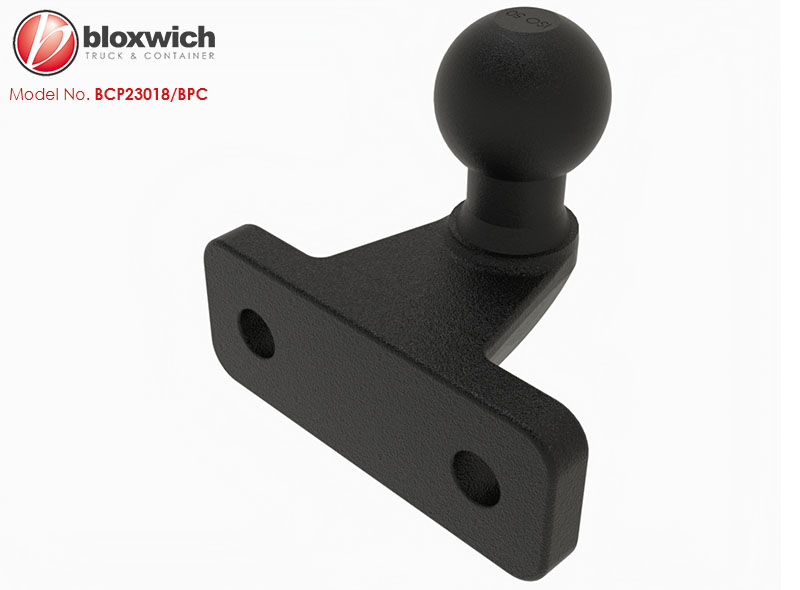

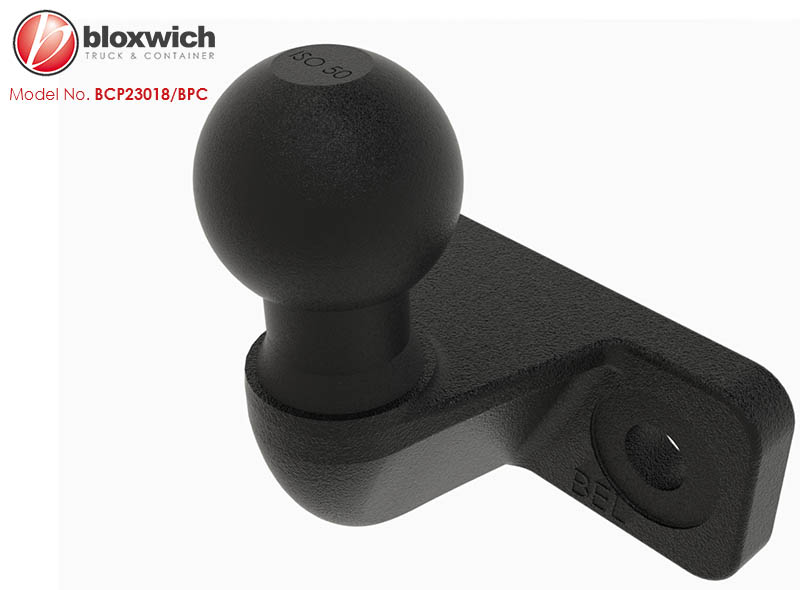

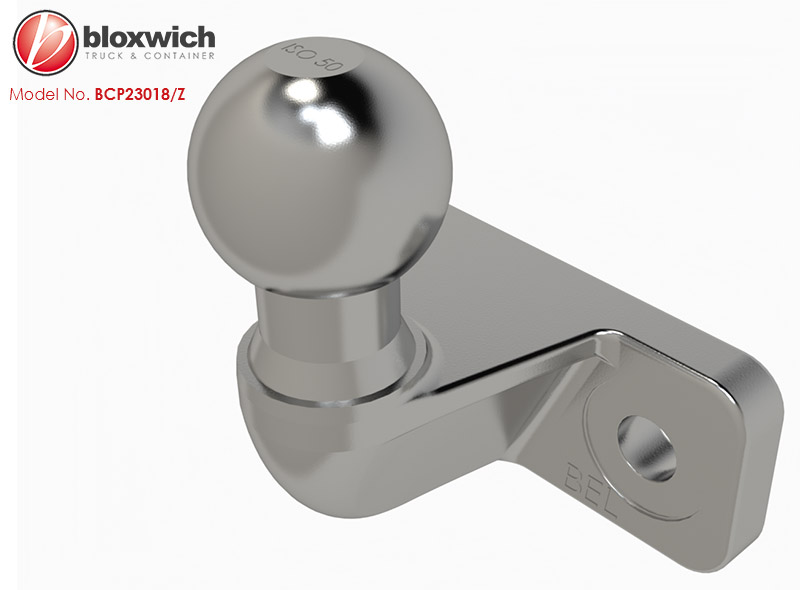

Supplied in: Forged steel, black powder coated or zinc plated.

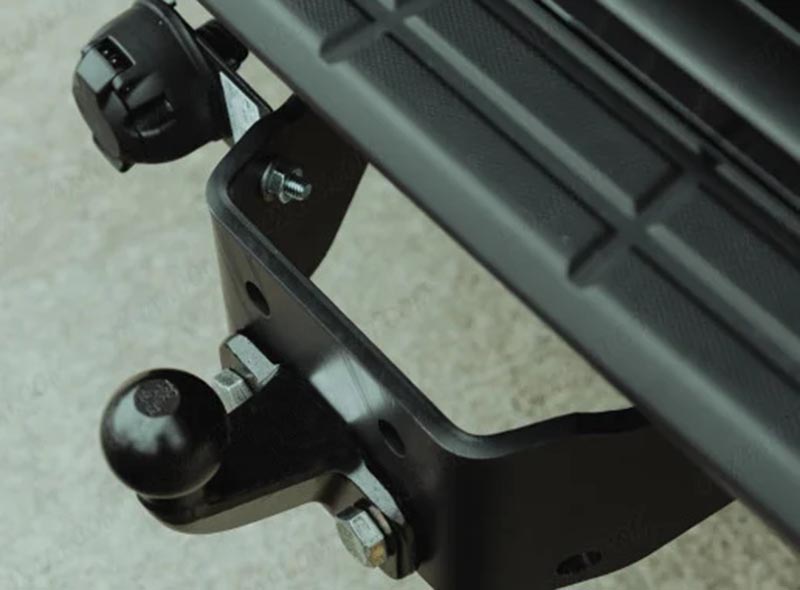

Use: Suitable for all standard flange tow bars. Fitting Instructions: Use only grade 10.9 or equivalent H.T. M16 bolts and nuts with lock washers, or nyloc nuts (fixing kits supplied separately) and torque to 240 Nm. Check torque again after first use and regularly thereafter.
S Value 350kg, D Value 17.2Kn
Weight: 2.2 kg Commodity No 830249 GTIN 5060345317589

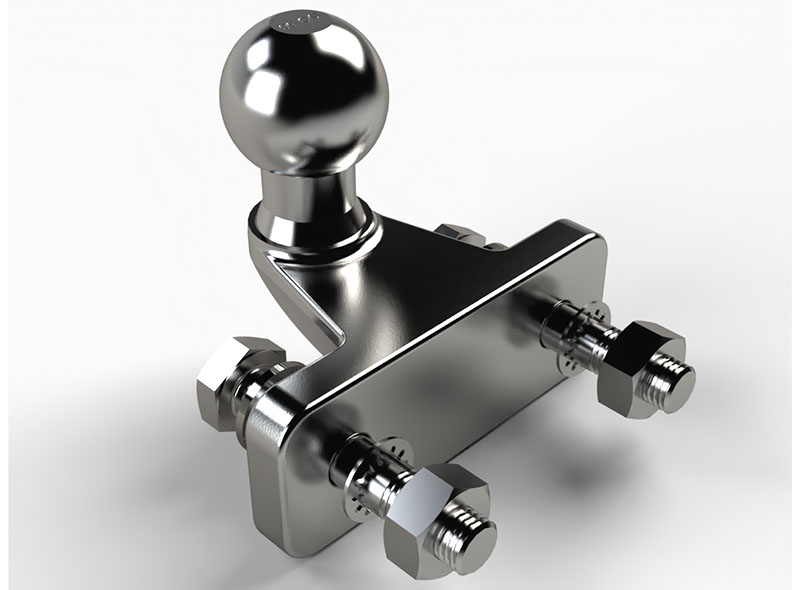

Contains 2 M16 x 45 HT bolts (23018/45), 2 flat washers (BCP14436), 2 shakeproof washers (23018W) & 2 tow ball nuts (23018N)
Contains 2 M16 x 55 HT bolts (23018/55), 2 flat washers (BCP14436), 2 shakeproof washers (23018W) & 2 tow ball nuts (23018N)
Contains 2 M16 x 65 HT bolts (23018/65), 2 flat washers (BCP14436), 2 shakeproof washers (23018W) & 2 tow ball nuts (23018N)
Contains 2 M16 x 75 HT bolts (23018/75), 2 flat washers (BCP14436), 2 shakeproof washers (23018W) & 2 tow ball nuts (23018N)
Contains 2 M16 x 90 HT bolts (23018/90), 2 flat washers (BCP14436), 2 shakeproof washers (23018W) & 2 tow ball nuts (23018N)
All are zinc plated
Click

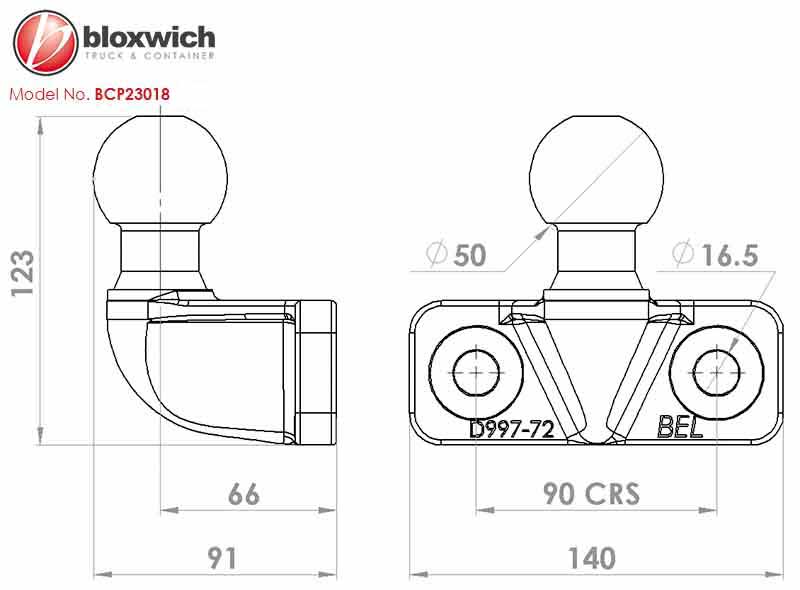

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
