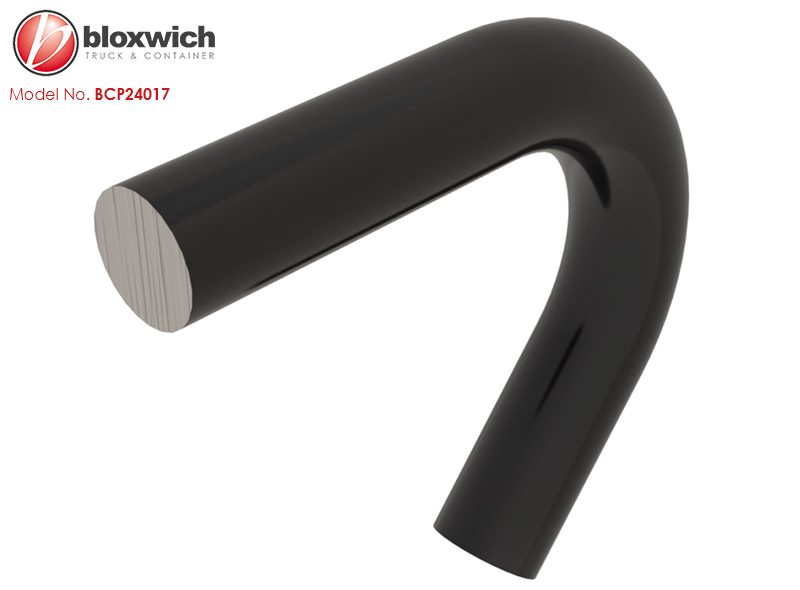

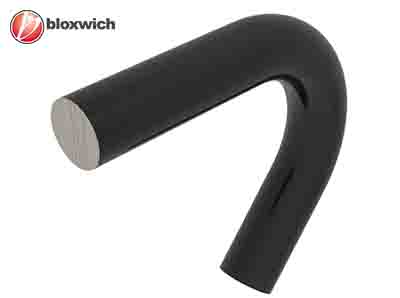

Bloxwich Standard Product: BCP24017 Heavy Duty Weld On Rope Hook Ø16mm
Supplied in: Mild steel, self colour

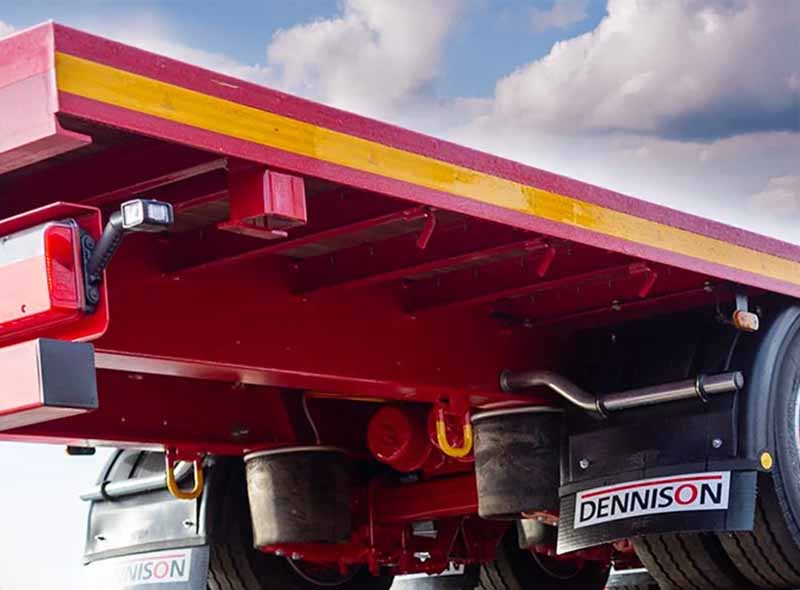

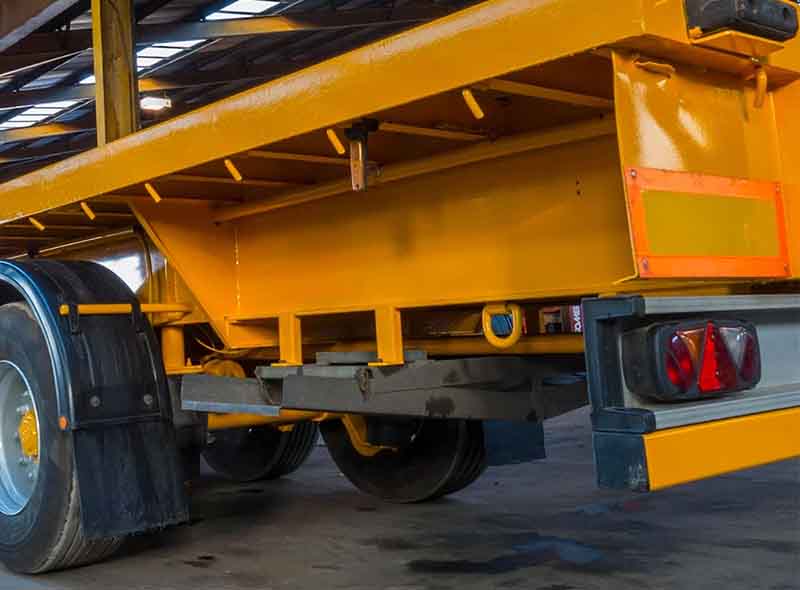

Use: General purpose heavy duty weld on rope hook for securing tarpaulins or nets over cargo/contents on HGV flatbed trucks and trailers etc. Usually fitted on the undersides of the side raves and back bearers and sometimes around post sockets and head boards they can be fitted either way round.
Weight: 228 g Commodity Code 830249 GTIN 5060345317855
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

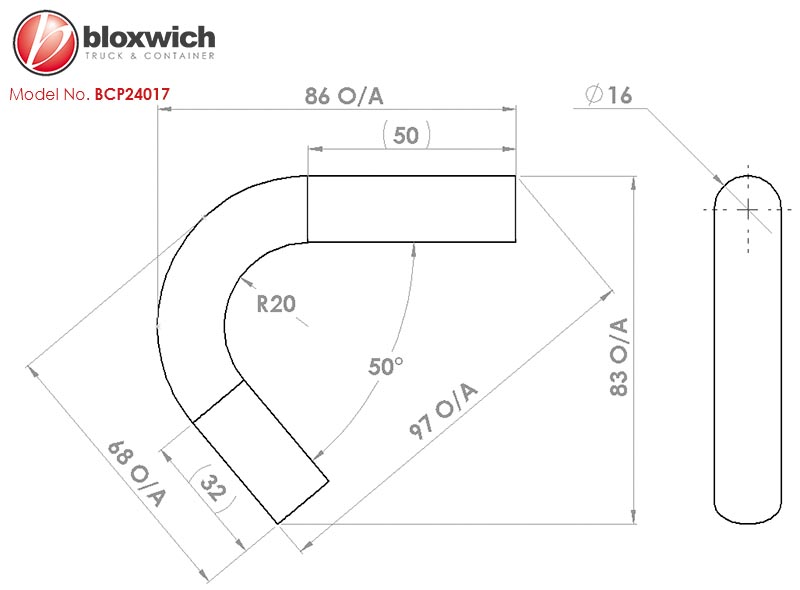

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
