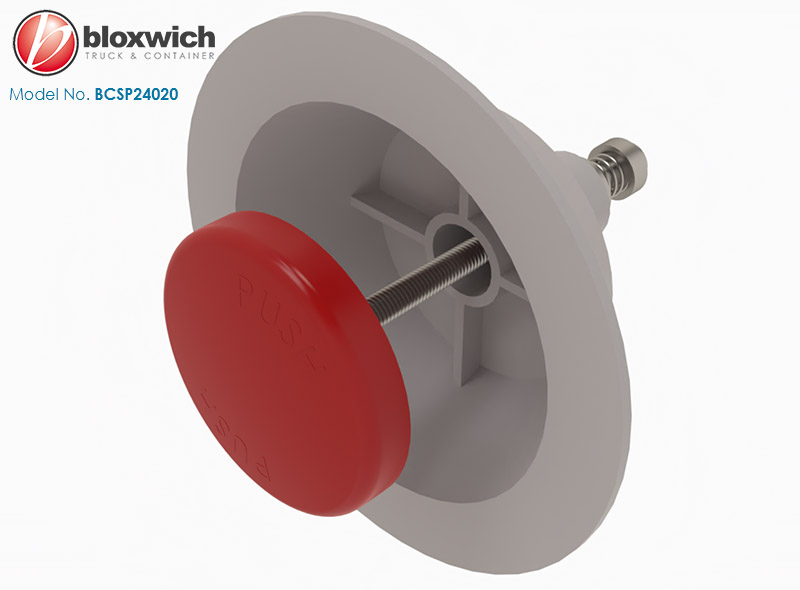

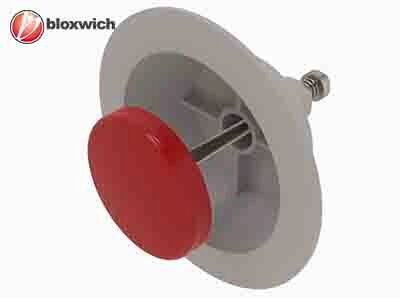

Bloxwich Standard Product: BCSP24020 Inside Safety Release (ISR)
Supplied in: 304 stainless steel rod and flange, with white pastic body and red plastic knob
Use: With Ø22mm and Ø27mm paddle handled door locking gear (even when the handle is locked with the key) on industrial enclosures, generators, offshore equipment, containers, trucks, trailers and delivery vans etc.
Weight: 250 g Commodity Code 830249 GTIN 5060345317893
Opens sealed or padlocked or cylinder locked latch from inside of the unit
Clearly visible red knob for added safety
Inside release for 141mm thick doors maximum

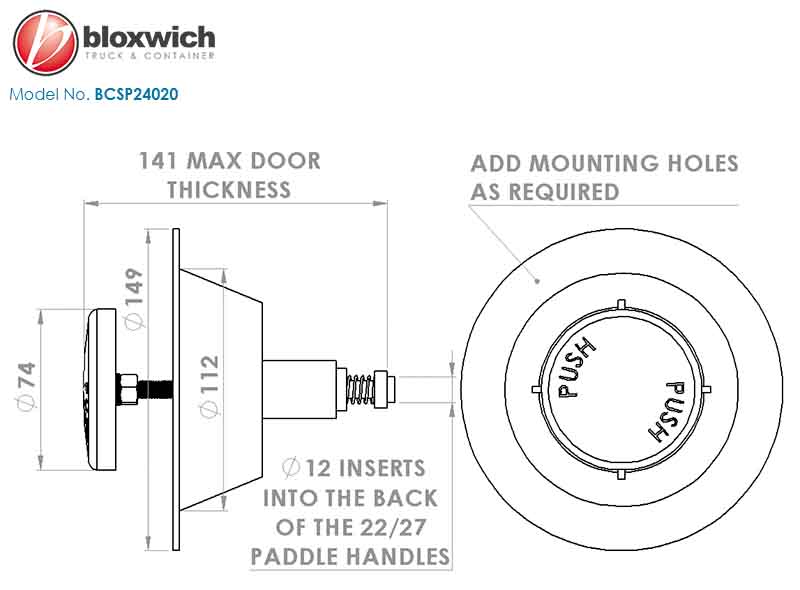

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
