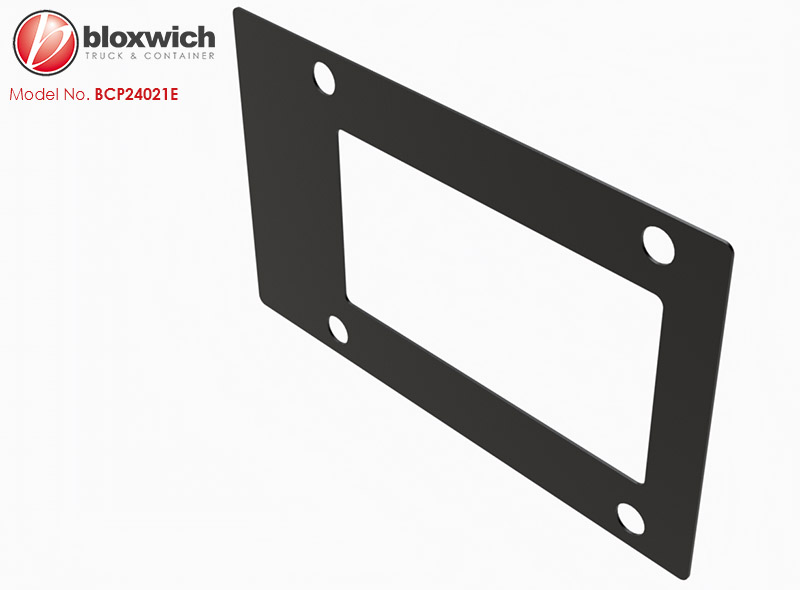

Bloxwich Standard Product: BCP24021E Ø22mm Paddle Handle Gasket
Supplied in: EPDM Rubber
Use: On BCSP24018 Ø22mm paddle handles to prevent door componentry from 'in service' abrasion with door surface, and possible 'galvanic' corrosion encountered when some dissimilar materials are in direct contact with each other. 1mm version for flush door panels. Others thicknesses available on request
Weight: 25 g Commodity No 400829 GTIN 5060345317916

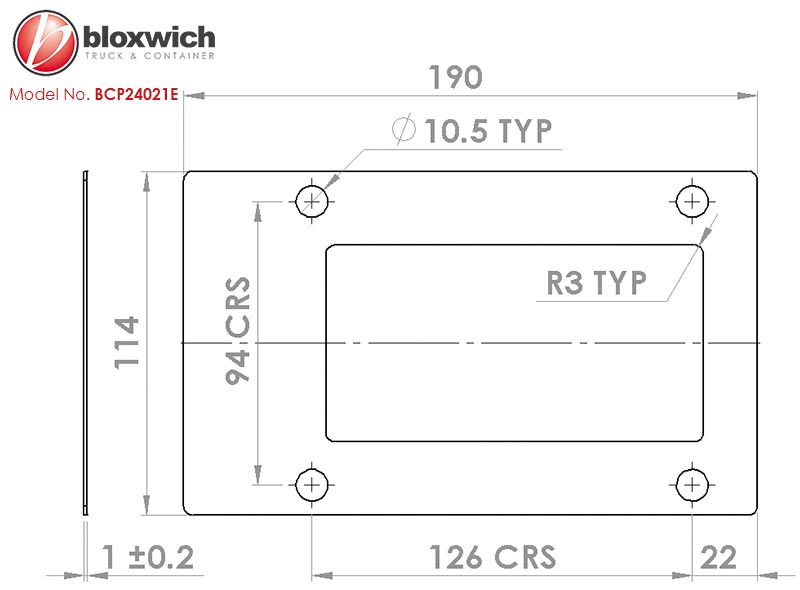

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
