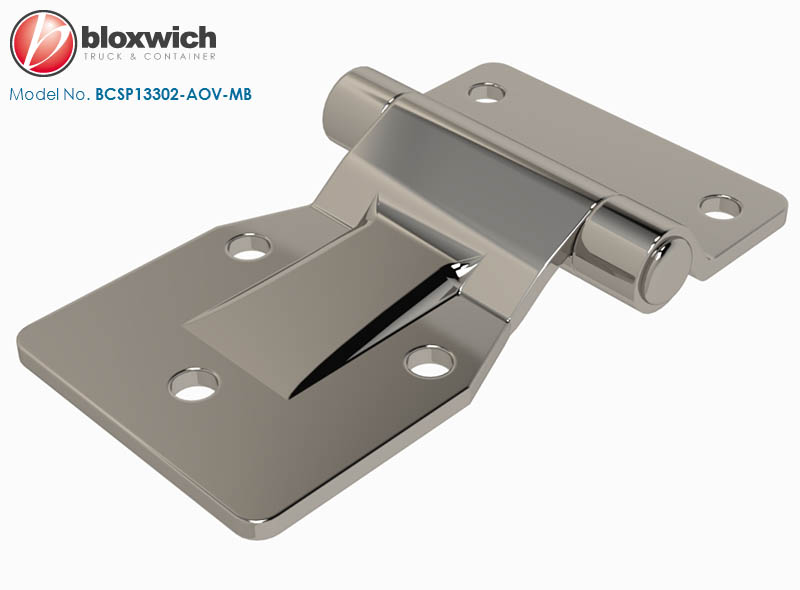

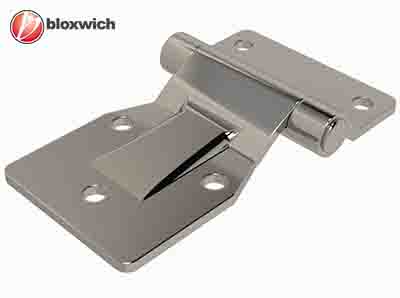

Bloxwich Standard Patent Design: Stainless Steel Hinge 95mm
Supplied in: 304SS electro-polished finish
Use: General purpose pressed stainless steel hinge assembly
No hole, square hole and other Ø hole sizes available on request (subject to quantity), please contact us for a quote.
Weight: 440g Commodity No 830210 GTIN 5060345310368
Contains 5 M8 x 30 set screws (BCSP13282), 5 flat washers (BCSP13281) & 5 nyloc nuts (BCSP13280) all are A2 stainless steel.
Click

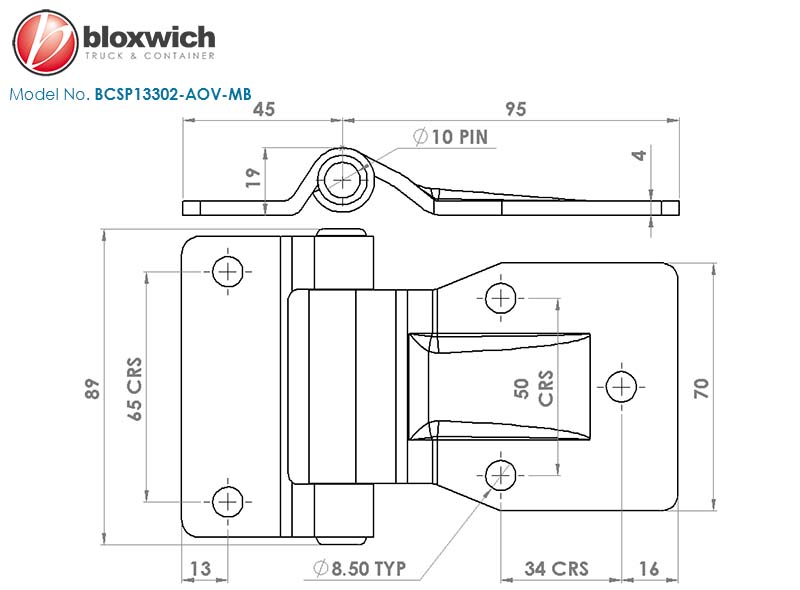

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
