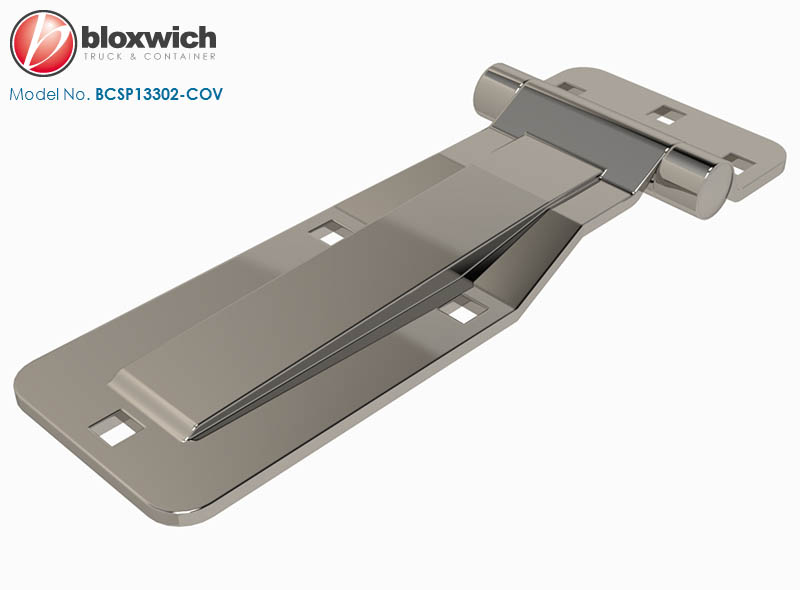

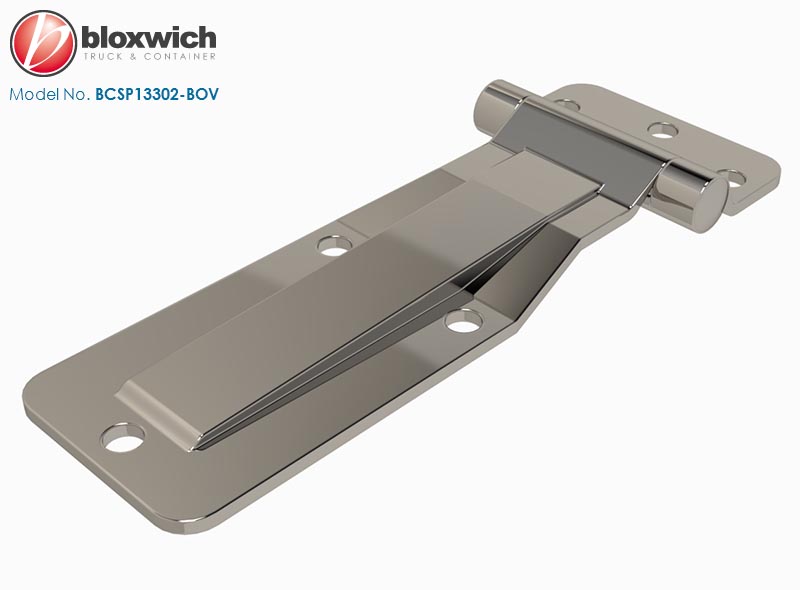

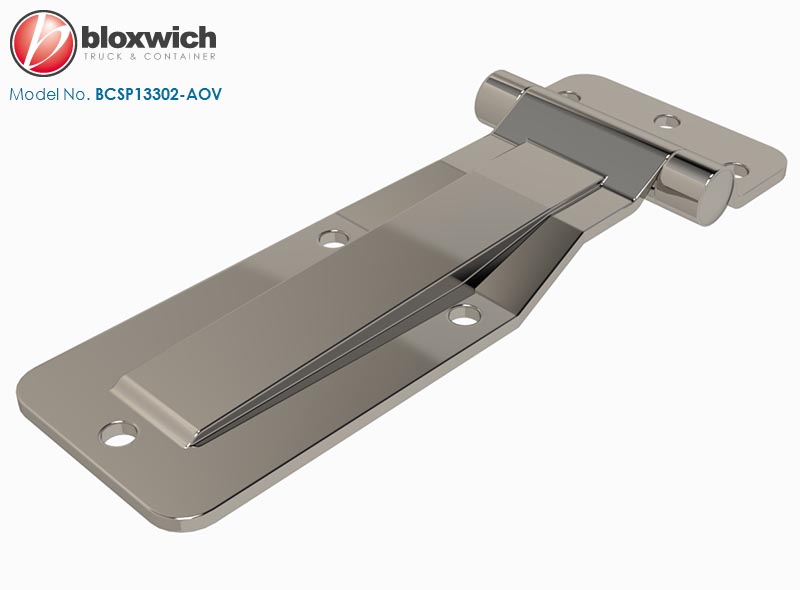

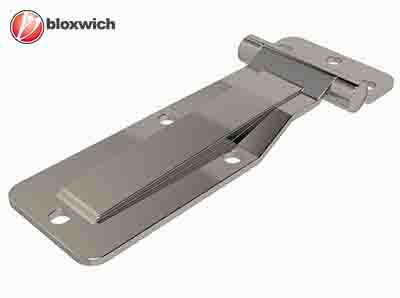

BCSP13302- Stainless Steel Hinge 185mm

Bloxwich Standard Patent Design: Stainless Steel Hinge 185mm

Supplied in: 304SS electro-polished finish

Use: General purpose pressed stainless steel hinge assembly. Swan neck design helps clear door seals

Weight: 650 g  Commodity No 830210   GTIN 5060345310368

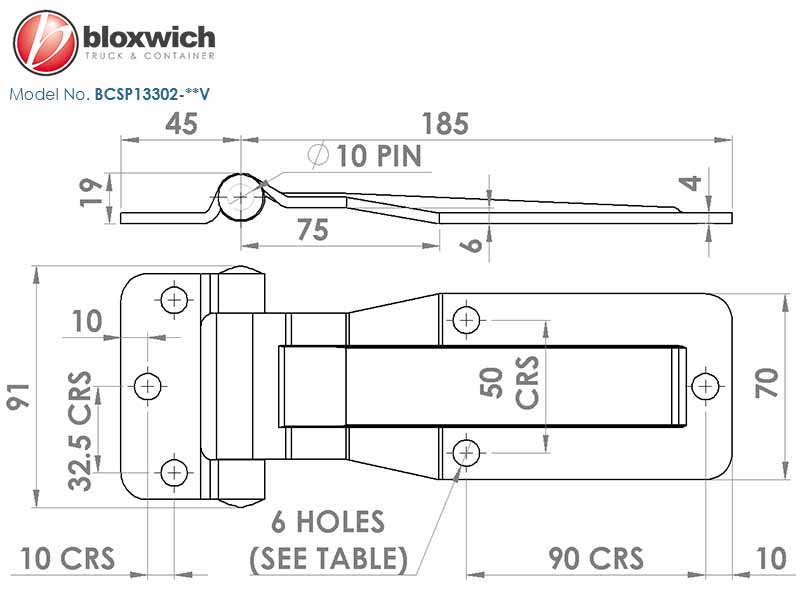

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
