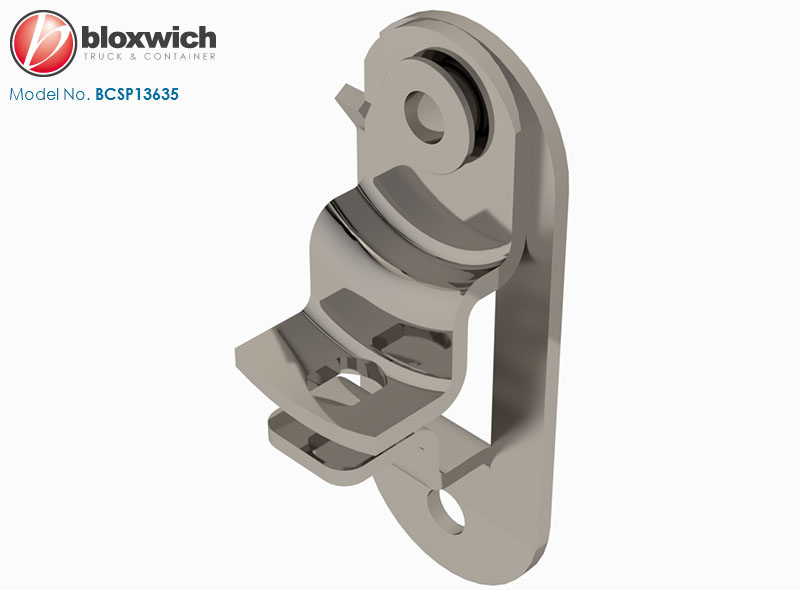

Bloxwich Standard Patent Design: Stainless Steel Door Handle Retainer Kit
Supplied in: Self colour

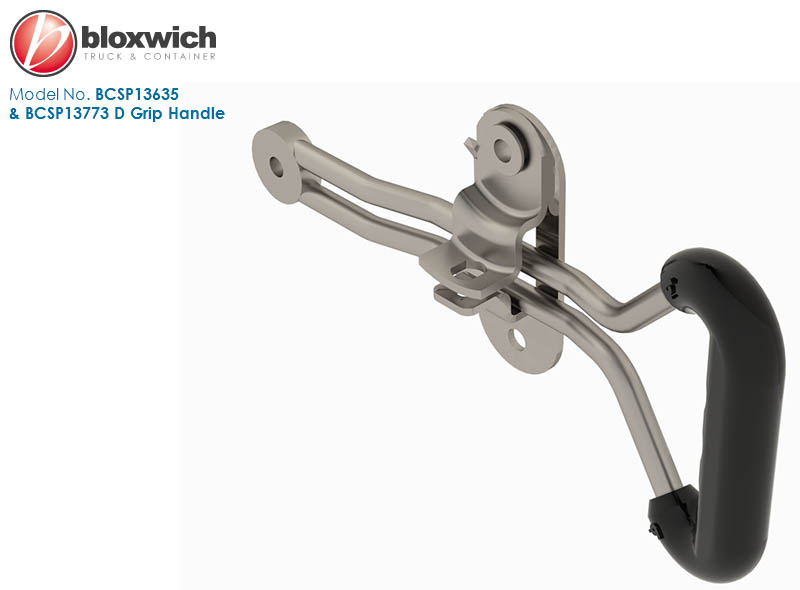

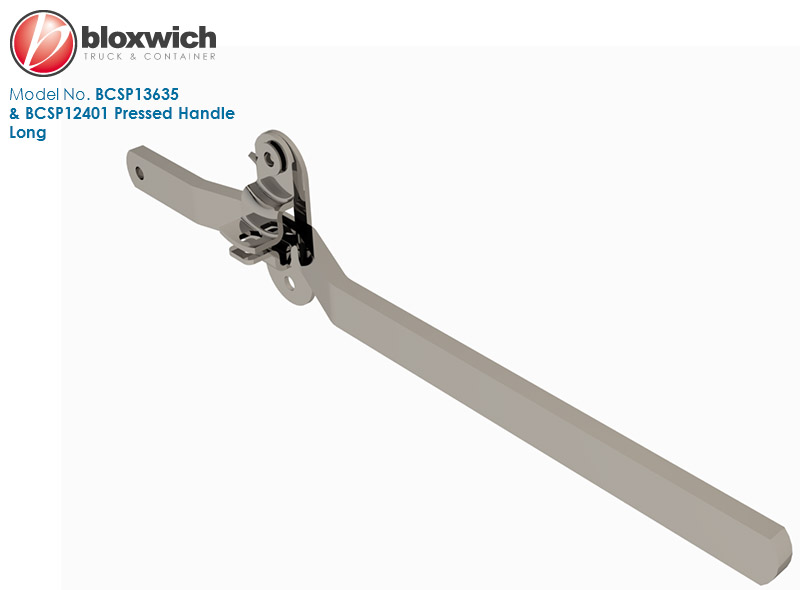

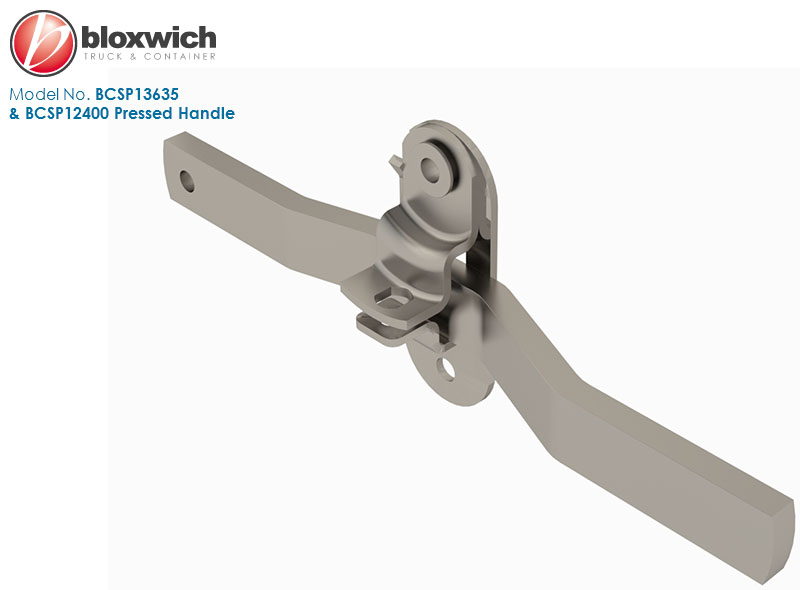

Use: Bolt/weld-on door handle retainer assembly for securing the BCSP12400 pressed, BCSP12401 pressed long or BCSP13773 D grip handles in the closed position
Weight: 297 g Commodity Code 830249 GTIN 5060345313703
Bush: BCSP13655 Catch: BCSP12399 Retainer: BCSP12398
Contains 1 M10 x 35 set screw (BCSP14887), 1 M10 x 30 set screw (BCSP14886), 2 flat washers (BCSP14885) & 2 nyloc nuts (BCSP14884 all are A2 stainless steel

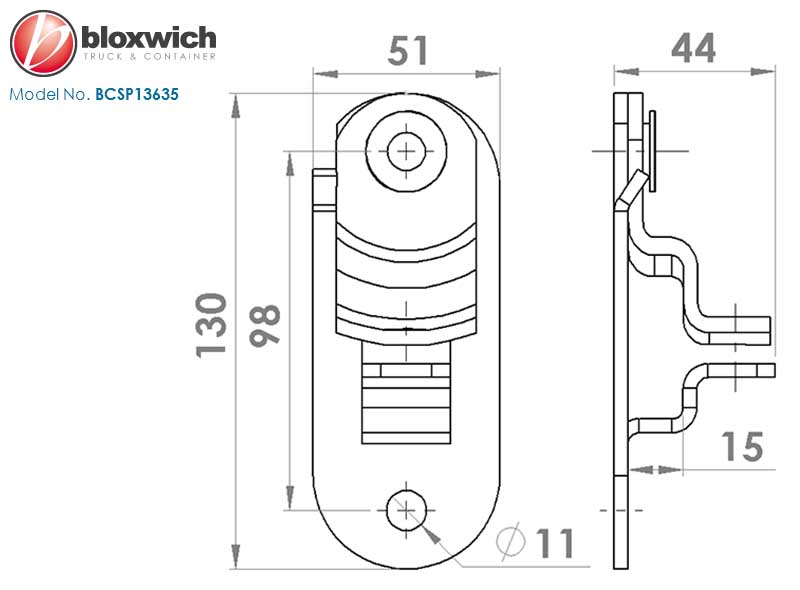

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
