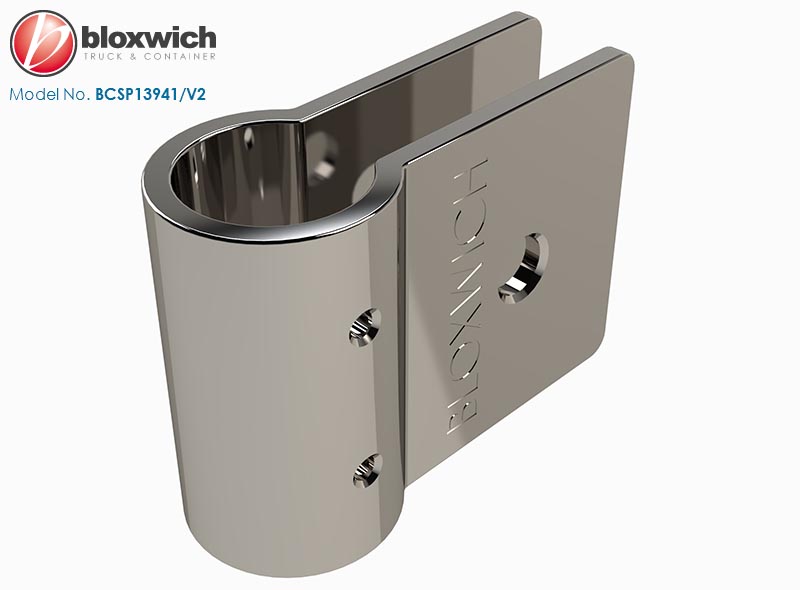

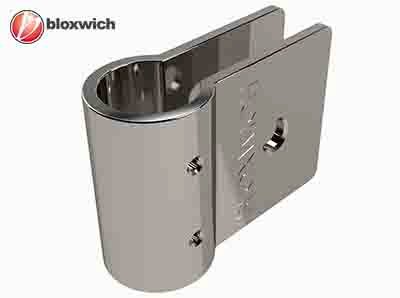

Bloxwich Standard Pat Design: Stainless Steel Handle Hub Adjustable
Supplied: 304 Polished Stainless Steel
Use: With Bloxwich Ø27mm variable height door gear (all use either the forged handle BCSP22182M pressed handle BCSP12400, pressed handle long BCSP12401or d grip handle BCSP13773).
Can also be used with Ø27mm non variheight door gear as it allows customers to set the "hub angle" and "handle height" themselves. Can be fixed in place using the BCSP13955M spirol pins or welded to the tube.
Weight: 340 g Commodity Code 830249 GTIN 5060345314069
Click

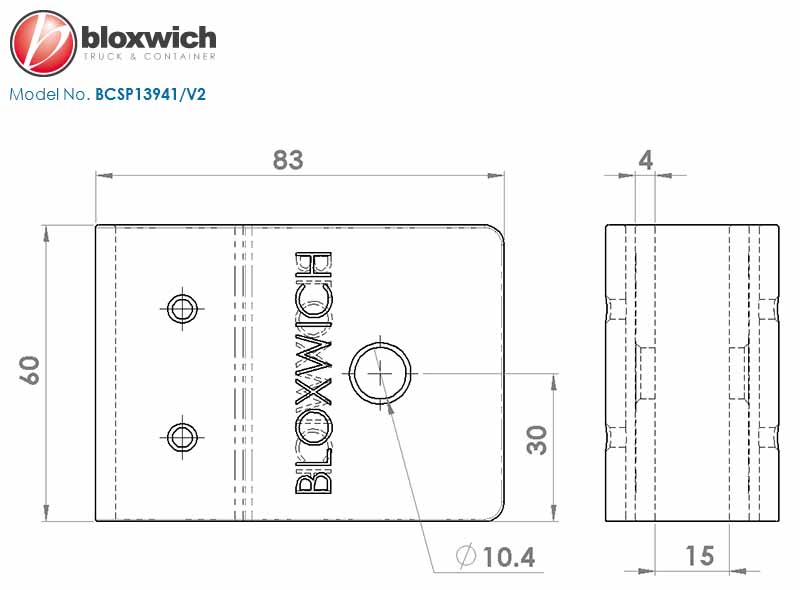

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
