Bloxwich Standard Product: Spirol Pin
Supplied in: Nickel Stainless Steel
Use: With Handle & Hub Assemblies BCSP13954, BCSP 13966. Recommended Hole Size (Min.) 5.00 mm, Recommended Hole Size (Max.) 5.12 mm, Minimum Double Shear Strength 15.5 kN
Weight:5 g Commodity Code GTIN 5060345312027

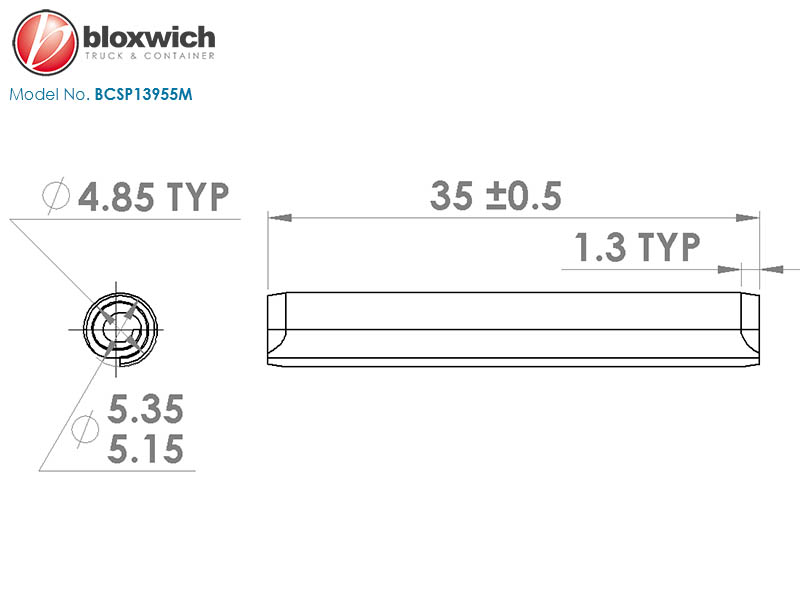

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
