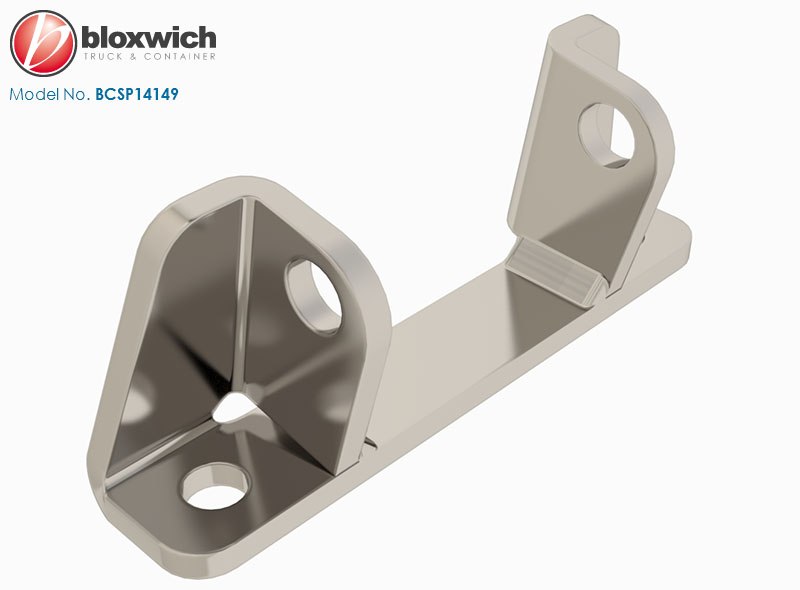

Bloxwich Standard Patent Design: Stainless Steel Bolt on Hinge Bracket 64mm (Offset)
Supplied in: 304 stainless steel
Use: Pivot hole size to suit M12 bolt or Ø12 hinge pin or /2 version suits 1/2" bolt or Ø12.7 hinge pin. Replaces fabricated BCSP12228 hinge bracket
Weight: 290 g Commodity No 830249 GTIN 5060345310412

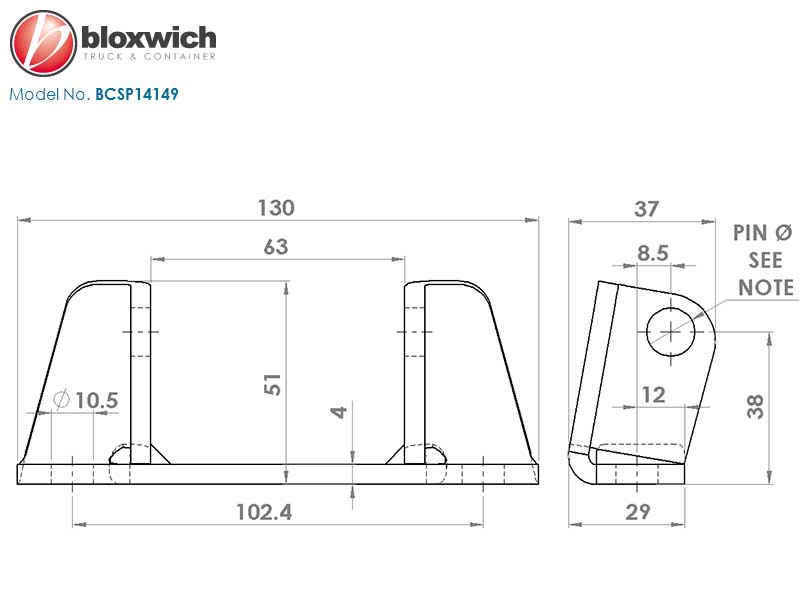

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
