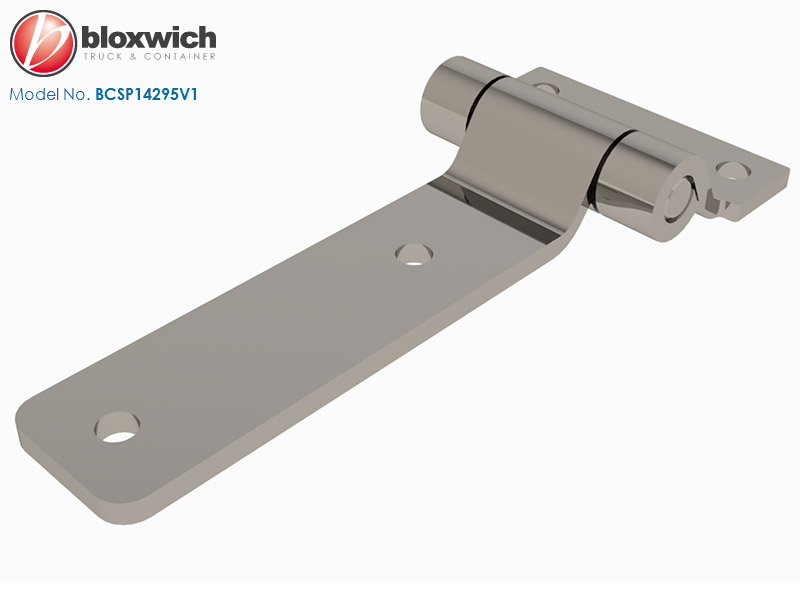

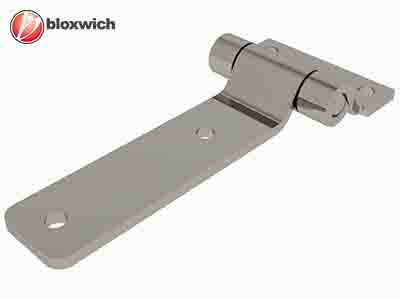

BCSP14295V1 Stainless Steel Hinge Assembly 107mm

BCSP14295V1 Stainless Steel Hinge Assembly 107mm

Price: £6.64 (ex VAT)

Bloxwich Standard Patent Design: Stainless Steel Hinge Assembly 107mm Zinc Plated

Supplied in: 304 stainless steel, self colour

Use: Bolt on general purpose hinge assembly with Ø6.4 fixing holes

Weight: 195 g Commodity Code 830210 GTIN 5060345312348

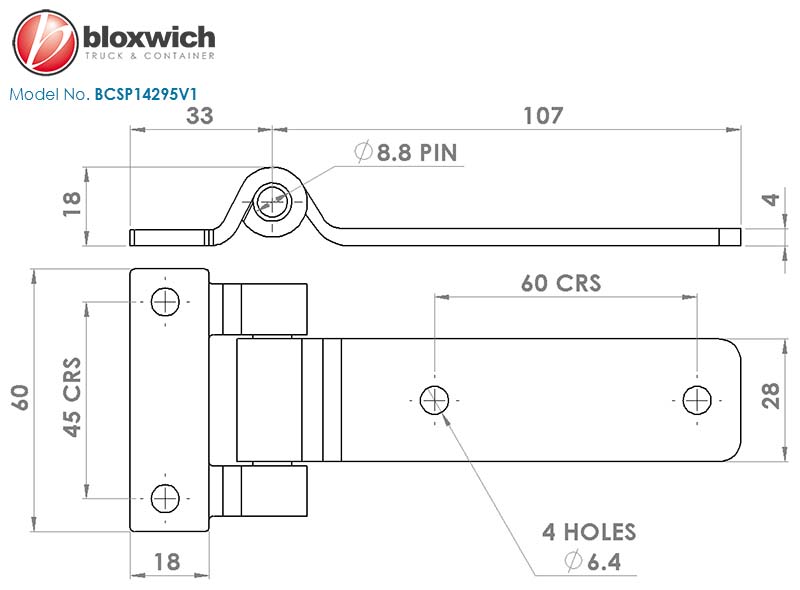

Drawing Download
Drawing Download

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
