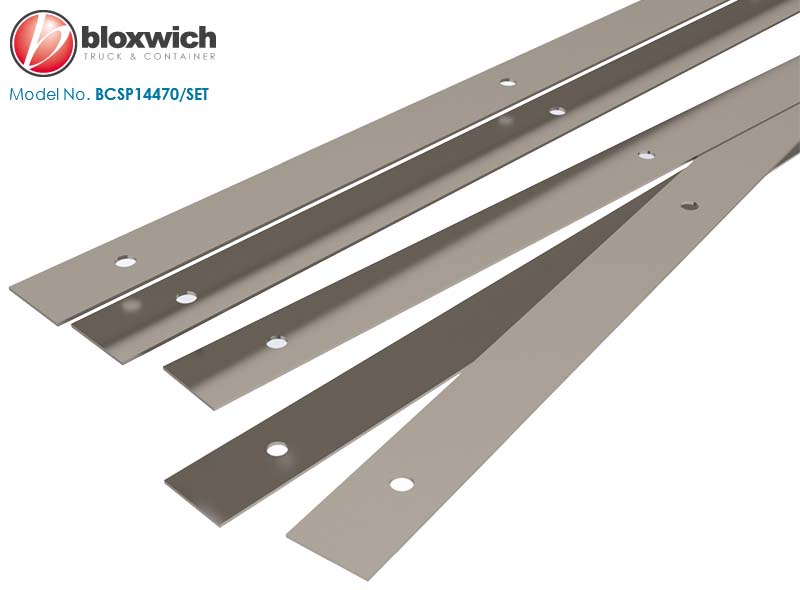

Bloxwich Standard Product: BCSP14470 Door Seal Retaining Strip Kit
Supplied in: 304 stainless steel.
Use: Along with BCSP20079 blind rivets to fit J type container door seal BCP-CDS46J to shipping container doors etc.
The four 1130mm lengths are fitted on the door horizontals and the 2249mm or 2529mm lengths are fitted on the door verticals (3 per pair of doors, as only one seal is fitted in the centre between the doors).
Other set lengths available on request, please contact us.
Weight: 1.8 kg/2.0 kg Commodity No 730661 GTIN 5060345316094
For 8' 6" containers BCSP14470/SET/STD 4 X BCSP14470/1130 door seal retaining strip and 3 X BCSP14470/2249 door seal retaining strip
For 9' 6" containers BCSP14470/SET/HC 4 X BCSP14470/1130 door seal retaining strip and 3 X BCSP14470/2549 door seal retaining strip

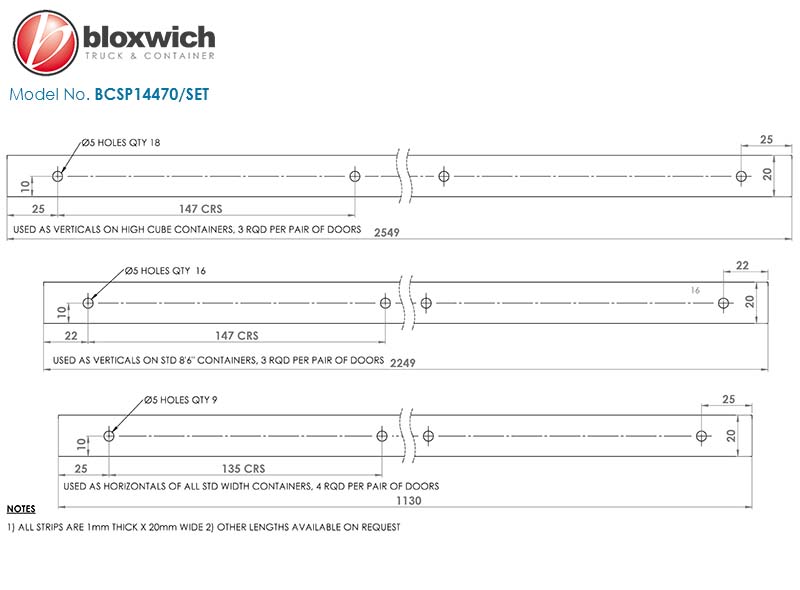

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
