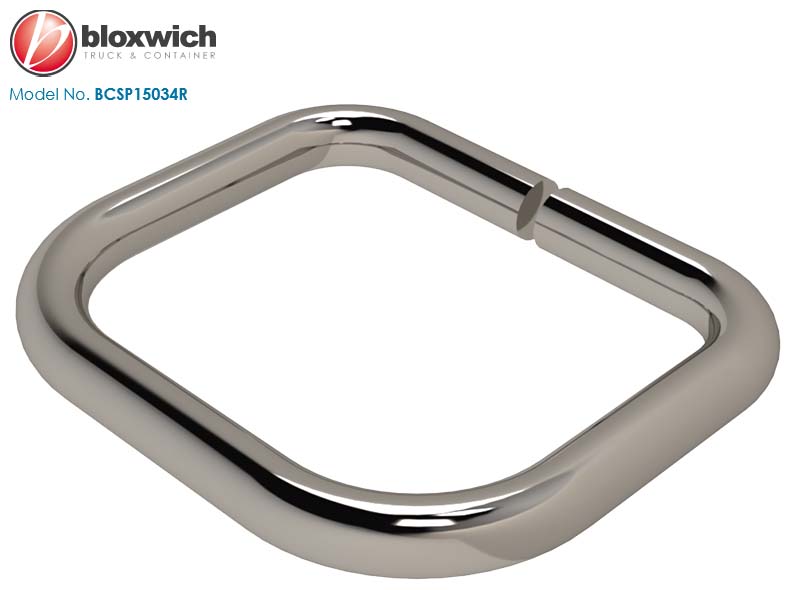

Bloxwich Standard Pat Design: BCSP15034R SWL 250kg* Lashing Ring
Supplied in: Stainless steel

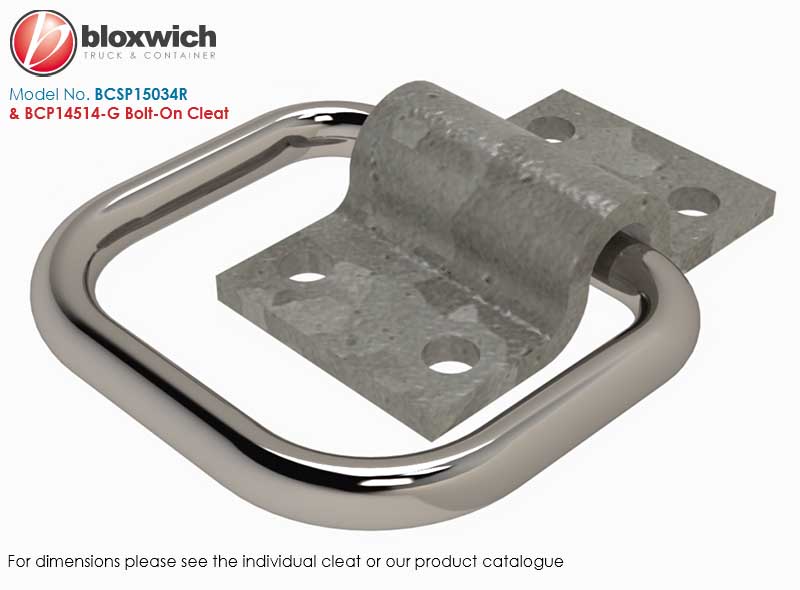

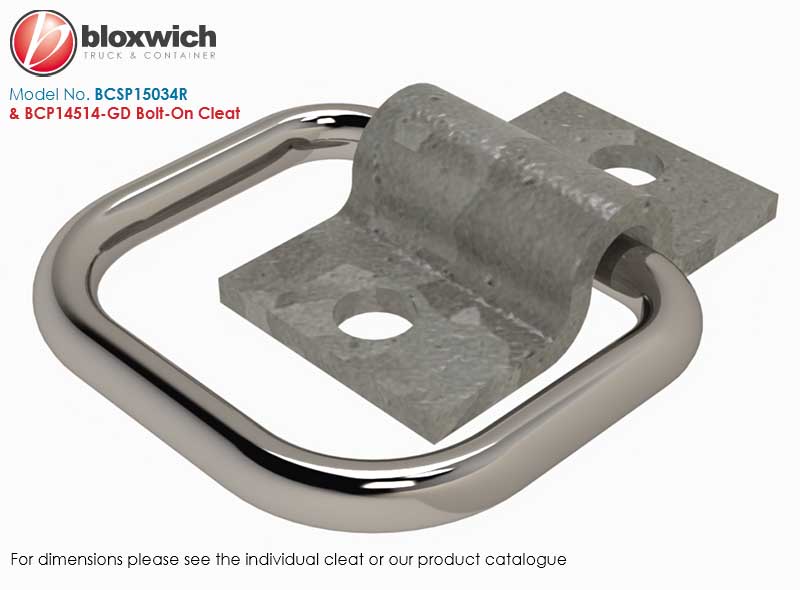

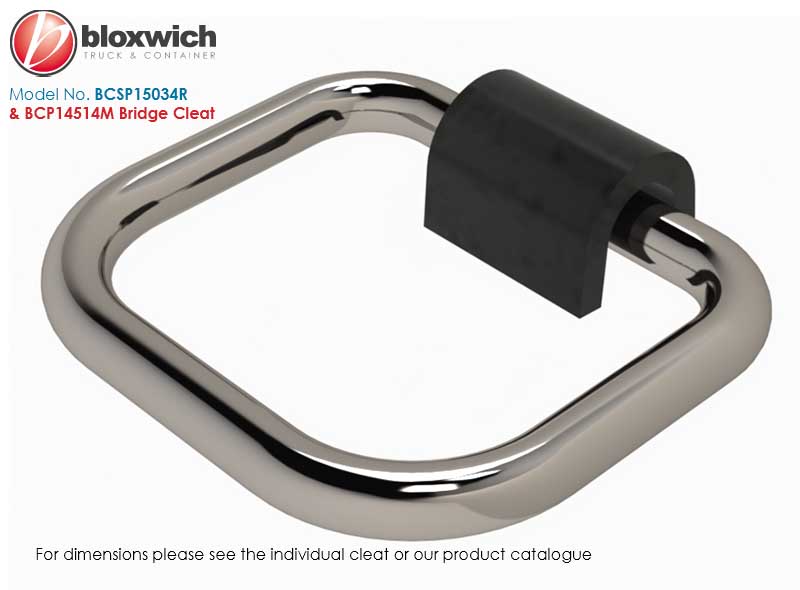

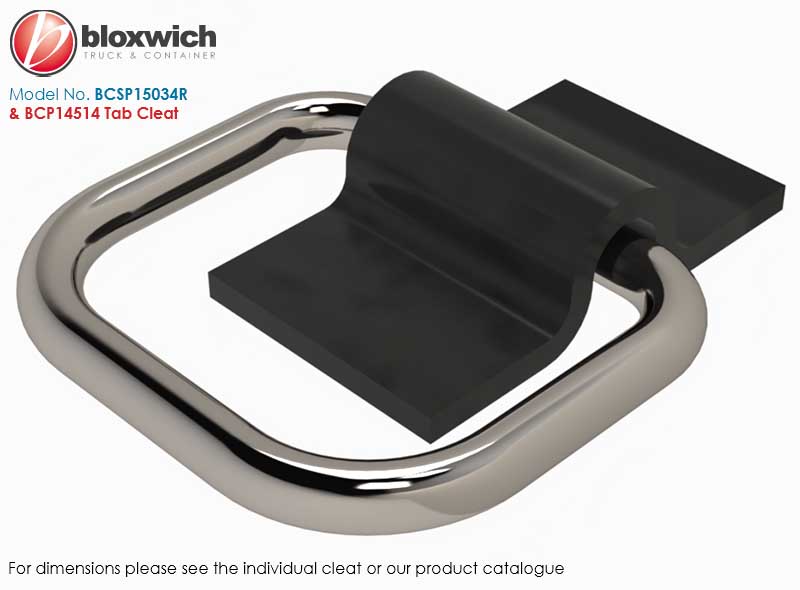

Use: Standard stainless steel lashing ring for use with Bloxwich tab, bridge or bolt on cleats (where available)
Weight: 48 g Commodity Code 830249 GTIN 5060345313918
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

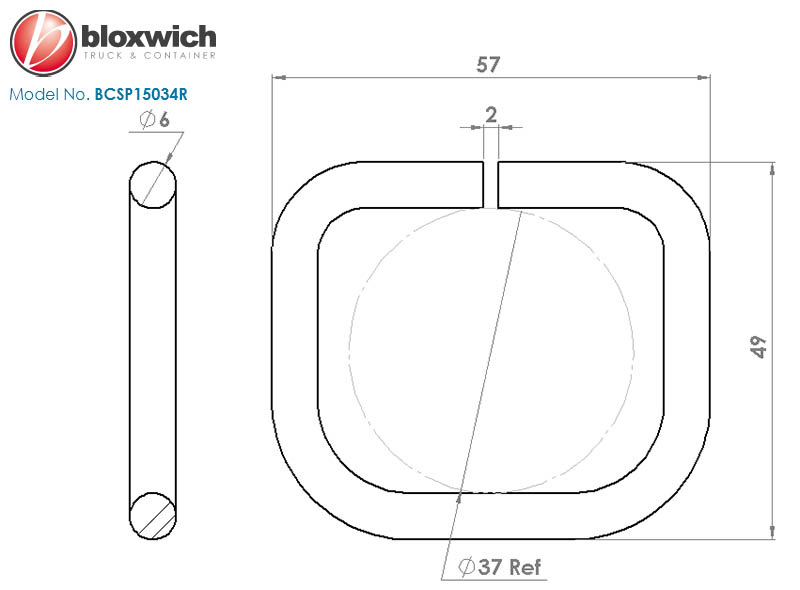

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
