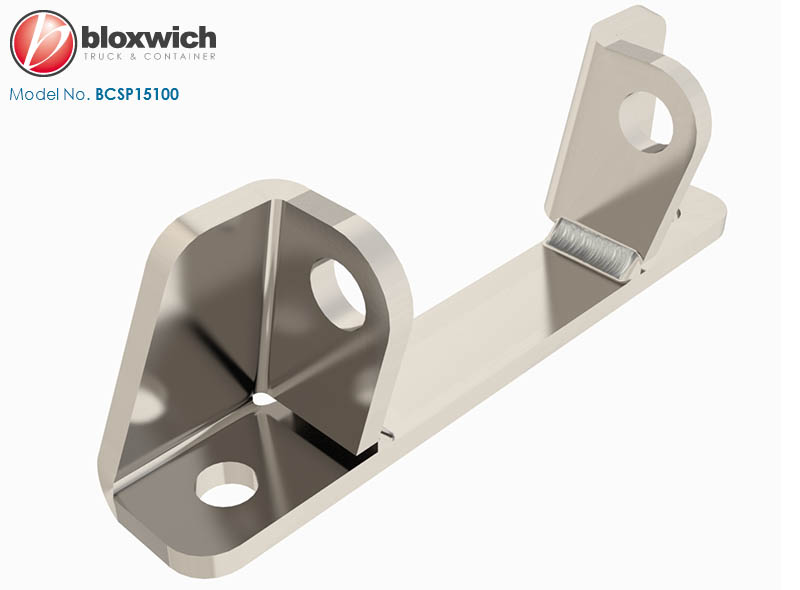

BCSP15100 Stainless Steel Bolt on Hinge Bracket 74mm (Offset)

Bloxwich Standard Patent Design: Stainless Steel Bolt on Hinge Bracket 74mm (Offset)

Supplied in: 304 stainless steel

Use: Pivot hole size to suit M12 bolt or Ø12 hinge pin

Weight: 290 g  Commodity No 830249  GTIN 5060345313024

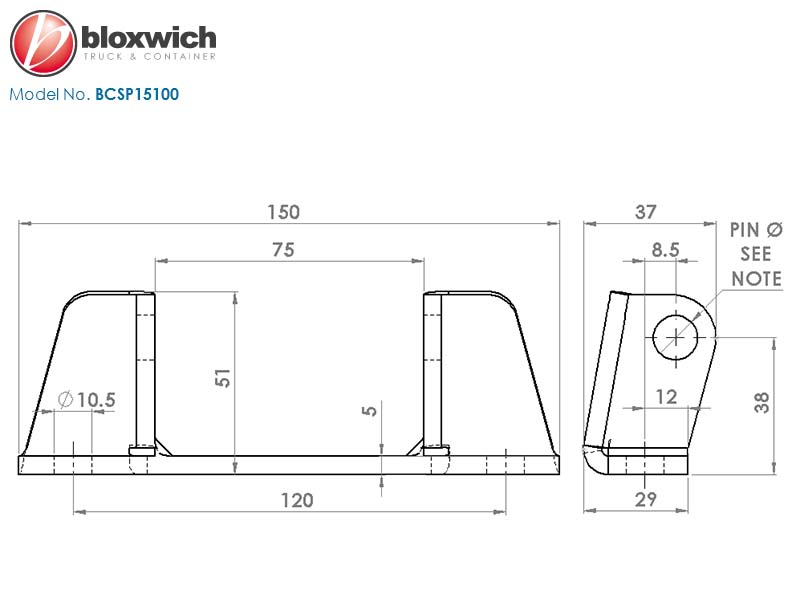

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
