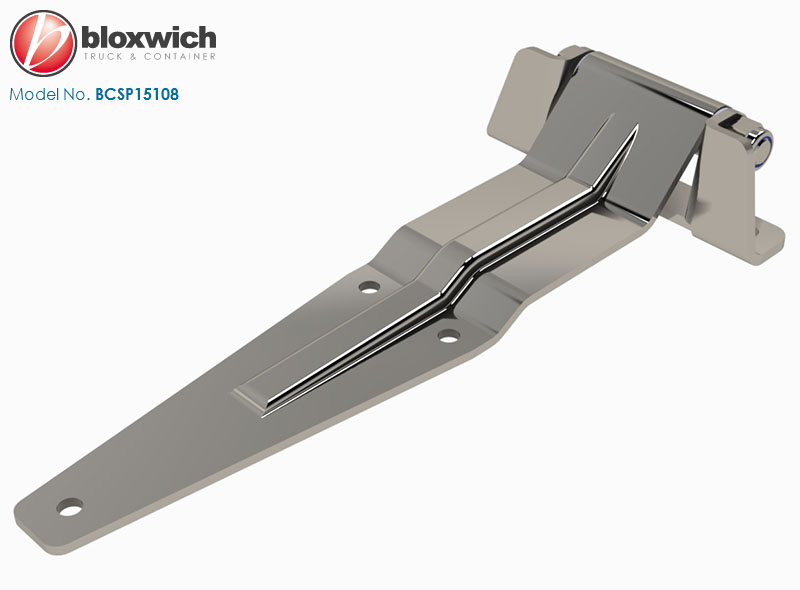

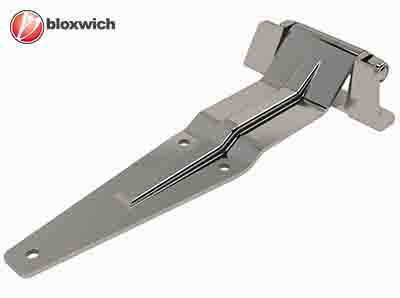

Bloxwich Standard Patent Design: Stainless Steel Hinge Assembly 312mm
Supplied in: 304 stainless steel
Use: Bolt on hinge assembly. Parts supplied in unassembled kits.
Weight: 1.1 kg Commodity No 830210 GTIN 5060345312126
Hinge: BCSP13607BOVD Bracket: BCSP15100 V2 Bolt/Pin: BCSP12463 M12 bolt Nut/E Clip: BCSP12462 M12 nyloc nut
Click

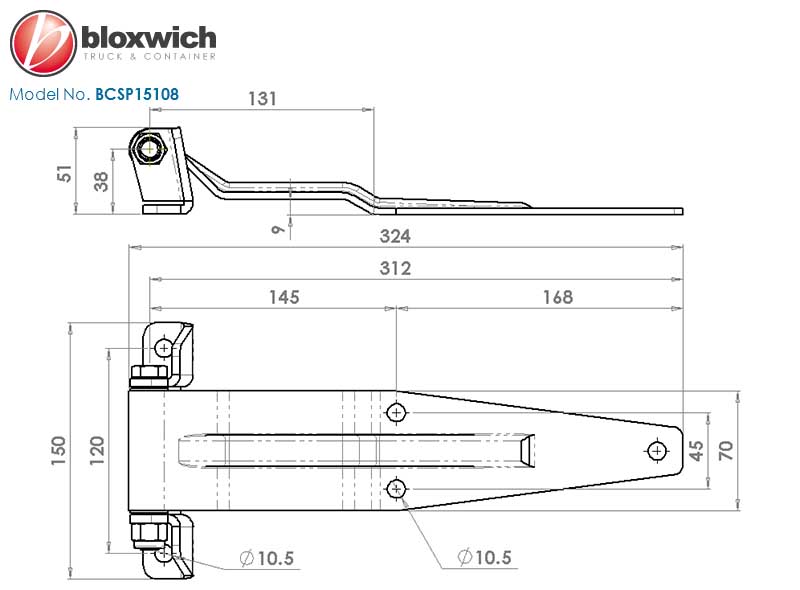

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
