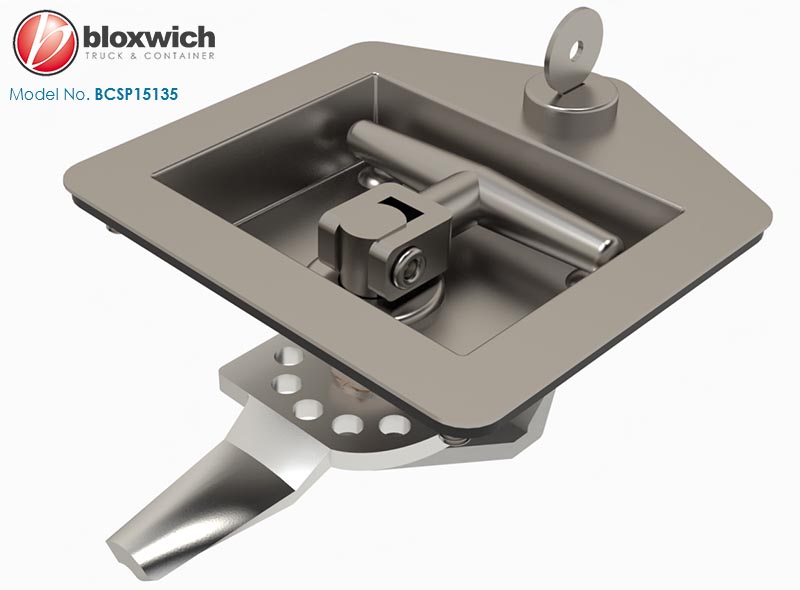

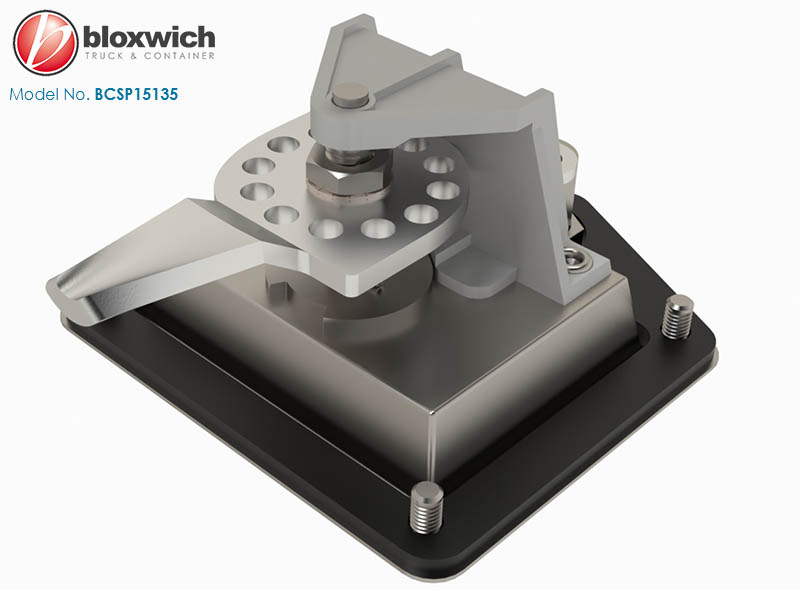

Bloxwich Standard Product: Recessed Drop Stainless Steel T Handle Catch c/w Lock
Supplied in: Polished stainless steel pan and outer items, plated inner items and rubber gasket

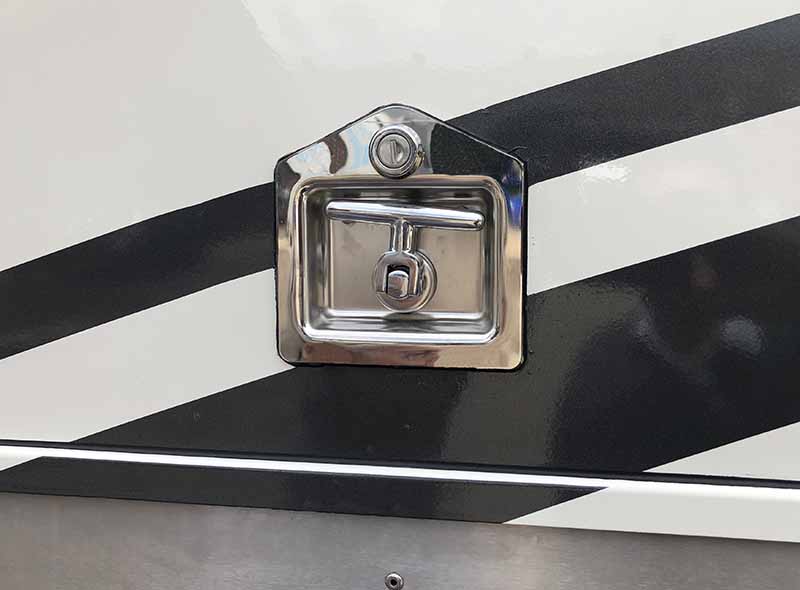

Use: General purpose T handle catch for access panels, toolboxes, vehicle compartments, generators, compressors and cabinets etc. Supplied with gasket, M6 mounting studs and 2 keys. Keys can be removed in the locked and unlocked positions. Adjustable latch height. Can be turned into a 3-point locking system with the addition of rods, guides and pins (not supplied). Other versions are available on request.
Weight: 725 g Commodity Code 830249 GTIN 5060345312638
Click

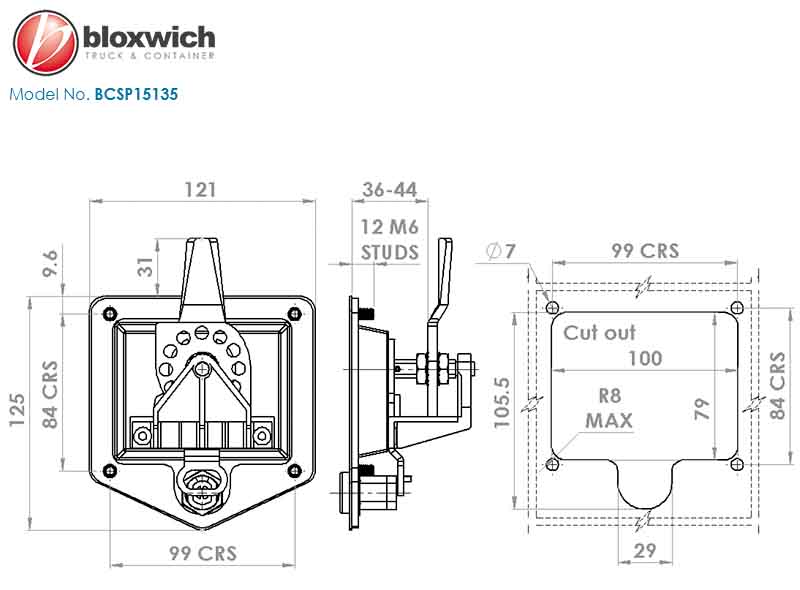

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
