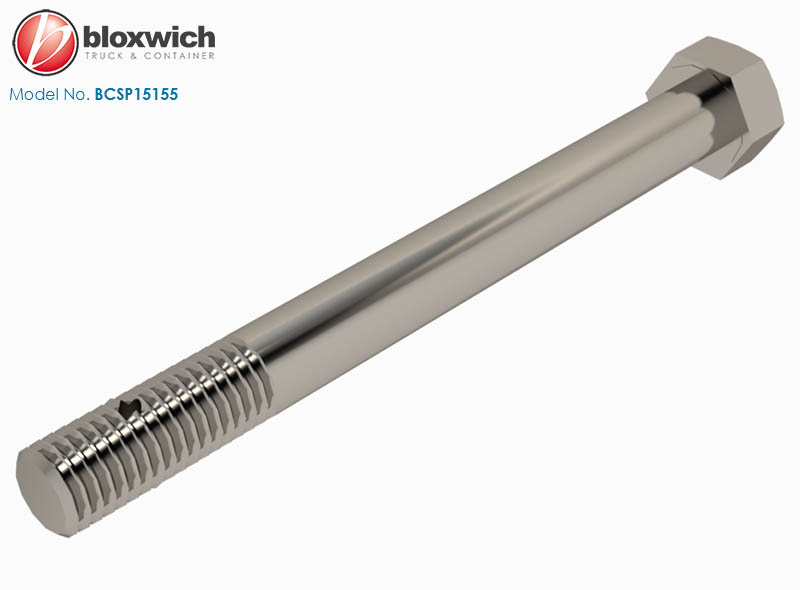

Bloxwich Standard Part: Stainless Steel Hinge Bolt 1/2" UNC x 5" Drilled
Supplied in: 304 stainless steel
Use: With Bloxwich hinges, butts and brackets. Hole position for castle nut and cotter pin drilled to order (please contact us to specify). Castle nuts can be tightened as required to reduce the gap between the hinges and bracket or butts. Cotter pin is fitted to retain the castle nut but a customs seal can also be used. This combination mean the parts can be removed for maintenance or repair much more easily that welded pins but with greater security than nyloc nuts and bolts.
Weight: 147 g Commodity No 731815 GTIN 5060345314724

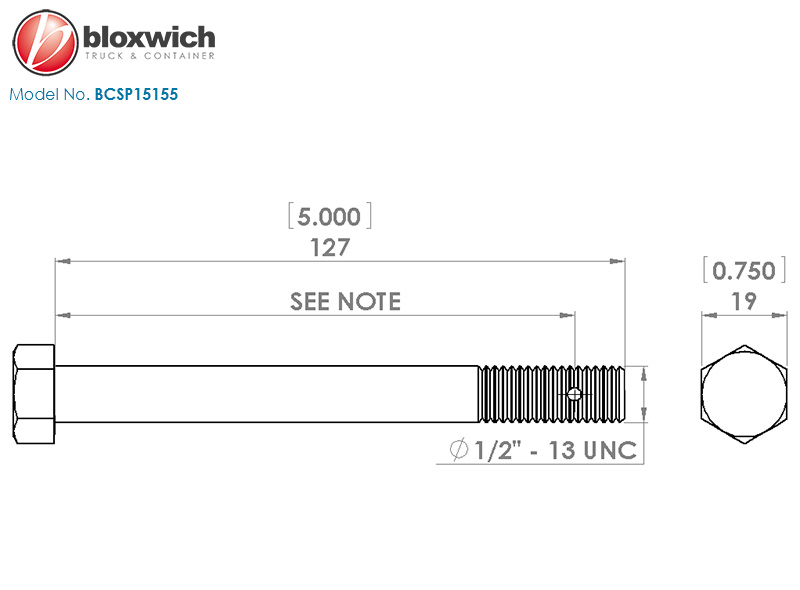

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
