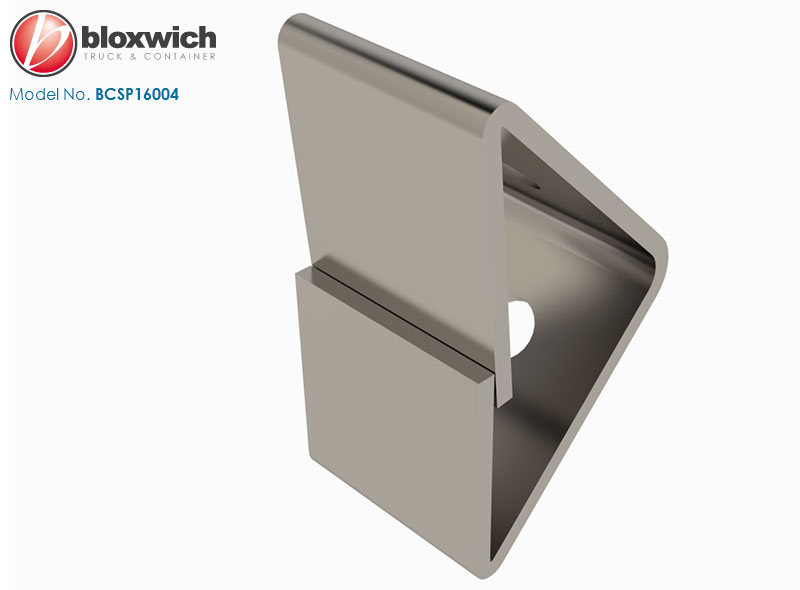

Bloxwich Standard Patent Design: SWL 125kg* Tarpaulin/Net Rope Hook
Supplied in: Stainless steel

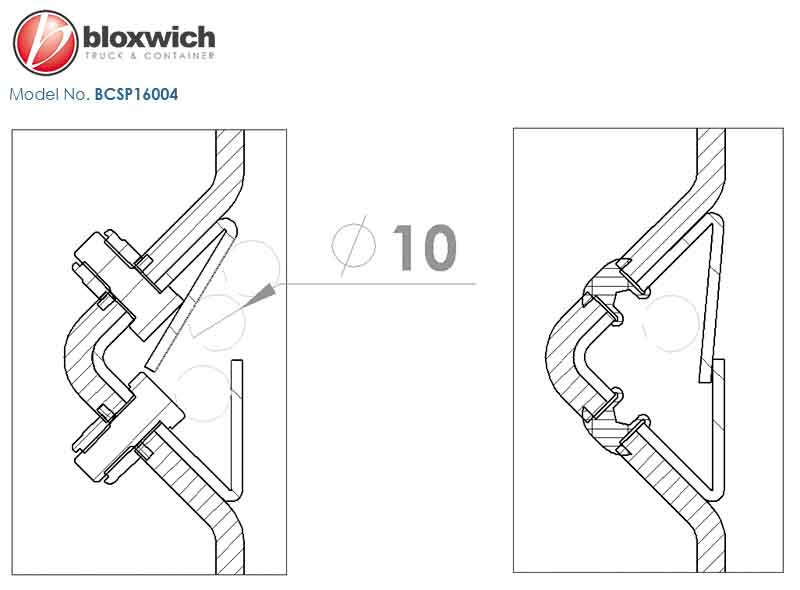

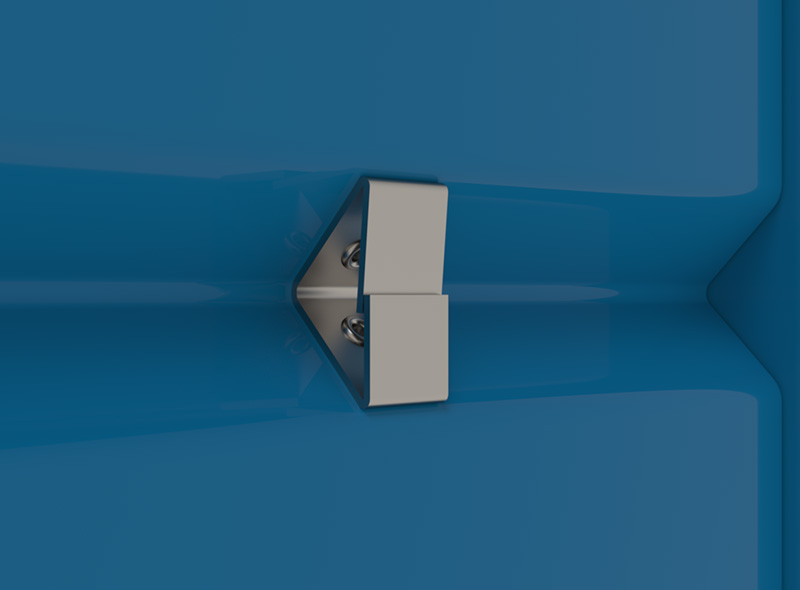

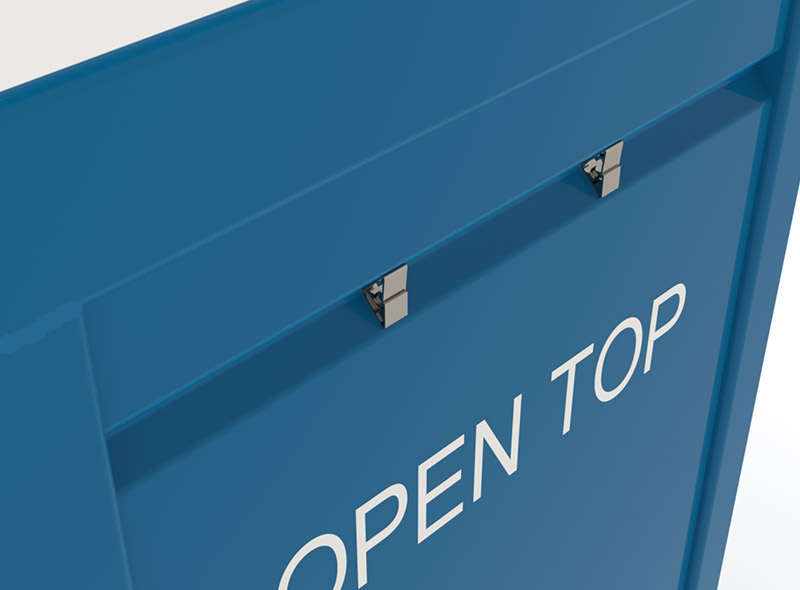

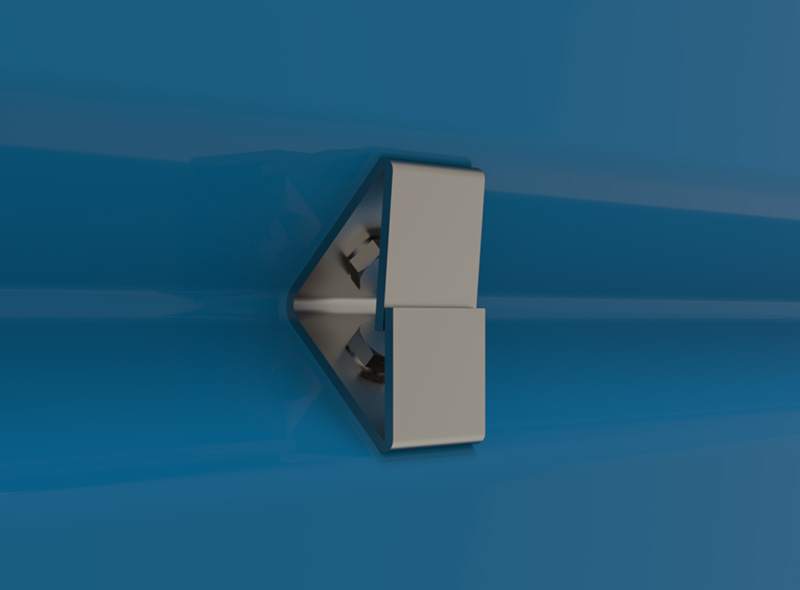

Use: Provides a corrosion resistant non snagging attachment point for tarpaulins and nets. Designed to fit commonly used open top container horizontal sheet corrugations, replacing the existing flat bars that corrode as they can't be fully welded. Easily fitted to existing units. Can be bolted or riveted in place, rivets increase access and eliminate snagging on the inside of the unit.
Weight: 44 g Commodity No 830249 GTIN 5060345312577
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

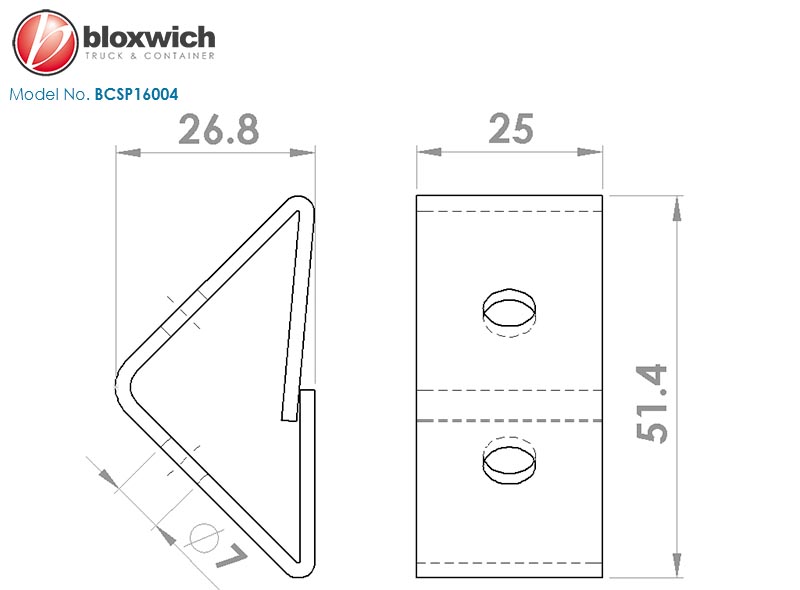

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
