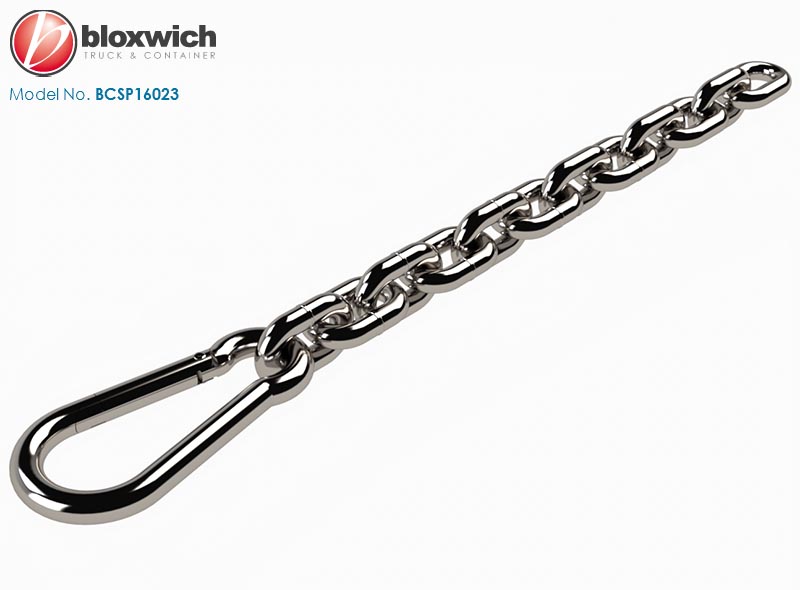

Bloxwich Standard Patent Design: Door Retainer Chain & Carabine
Supplied in: 316 stainless steel

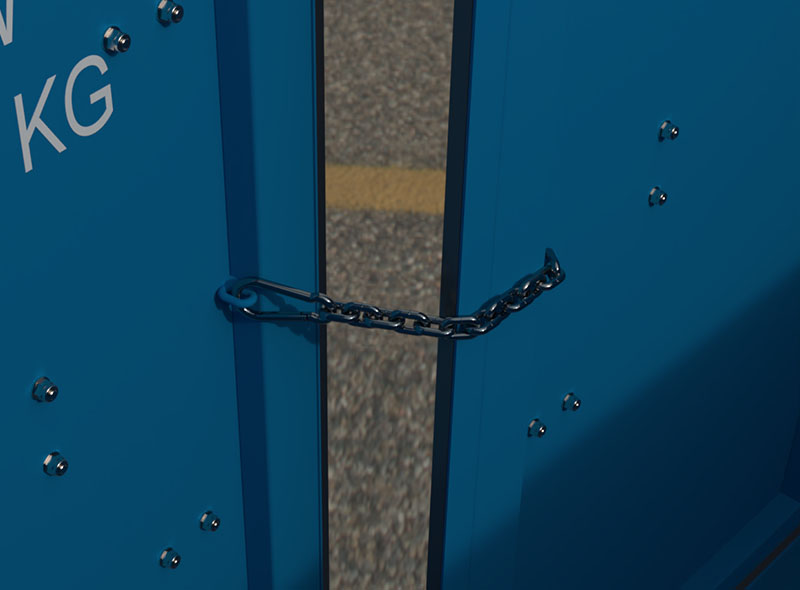

Use: For use as an additional safety measure to prevent doors bursting open on operators should the cargo be sitting against the inside of the doors on opening. Other sizes, materials and combinations available on request. BCSP16023/12 12 link version listed here but any number of links is possible, please contact us for details. 150mm gap on opening suggested. MBL 1300kg. Carabine welded to chain
Weight: 860 g (12 links as shown) Commodity Code 830249 GTIN 5060345313055
Originally developed for use in the Norwegian Oil & Gas industry to increase safety when opening the right hand doors, if fitted to both doors they can also be used to secure the doors in the open position along with the BCP15058 tag line pin box

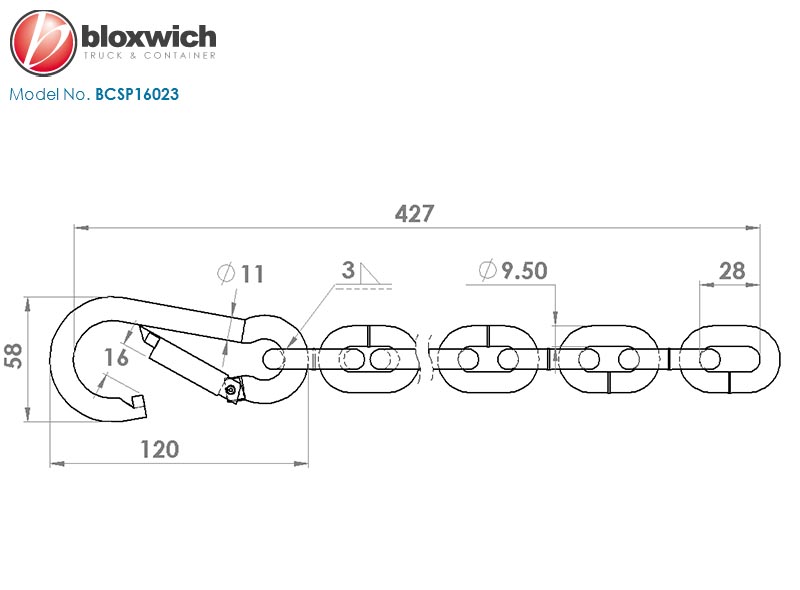

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
