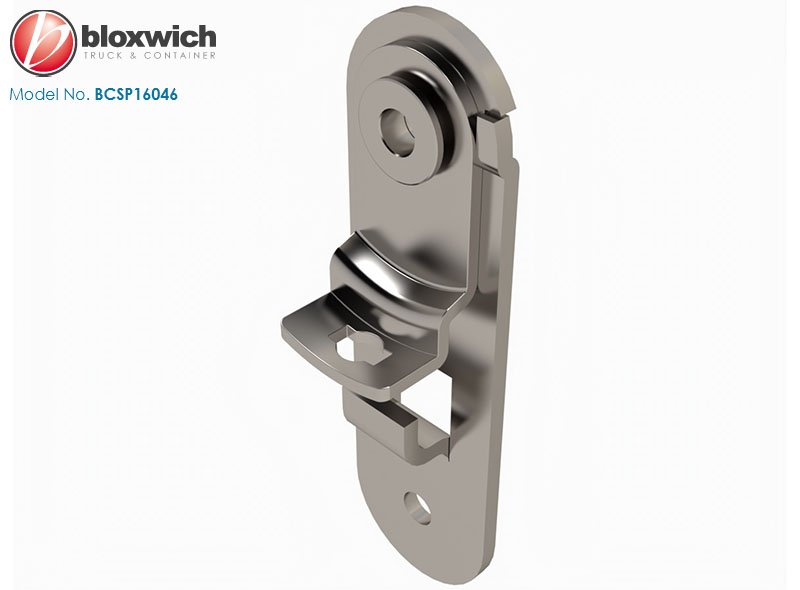

Bloxwich Standard Patent Design: Stainless Steel Door Handle Retainer Kit
Supplied in: Self colour. Parts supplied loose

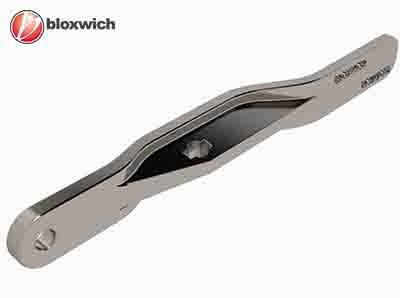

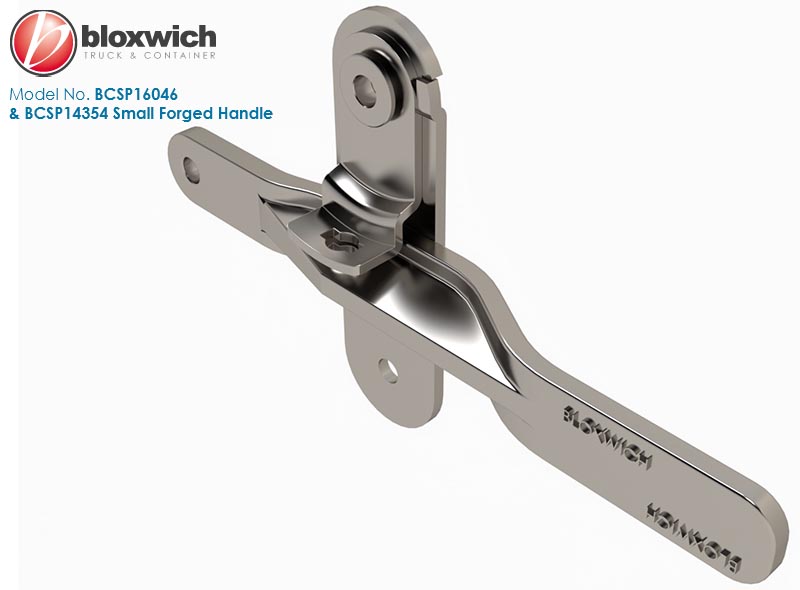

Use: Bolt-on door handle retainer assembly for securing the BCSP14354 small forged handle in the closed position
Weight: 215 g Commodity Code 830249 GTIN 5060345312973
Bush: BCSP11242 Catch: BCSP14356 Retainer: BCSP14355
Contains 1 M8 x 35 set screw (BCSP13283), 1 M8 x 30 set screw (BCSP13282), 2 flat washers (BCSP13281) & 2 nyloc nuts (BCSP13280) all are A2 stainless steel
Click

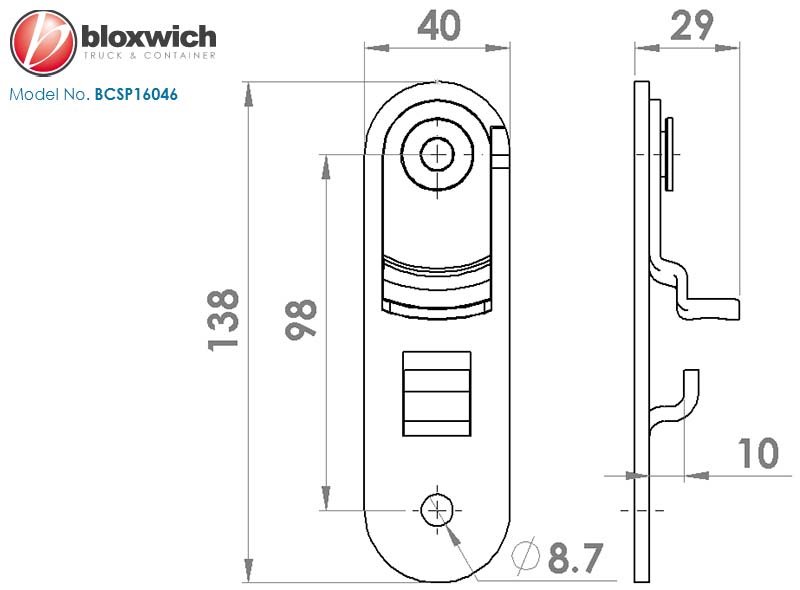

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
