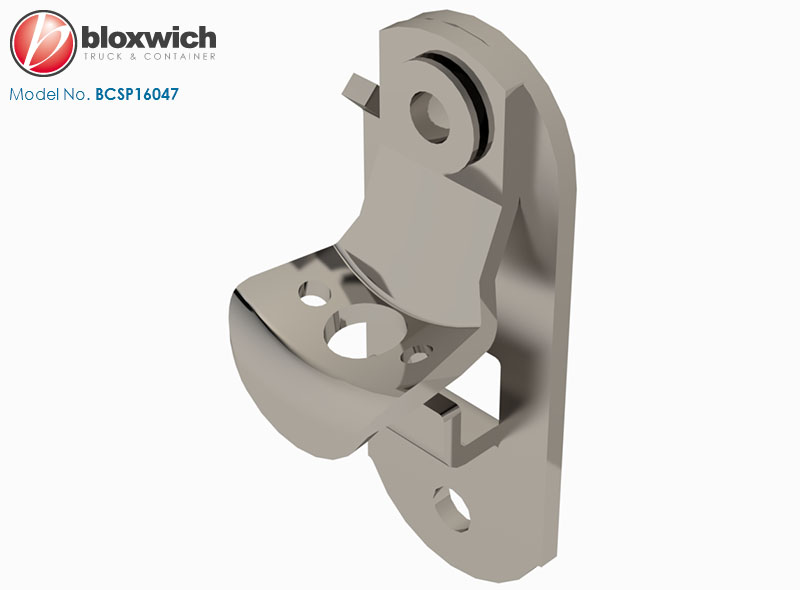

Bloxwich Standard Patent Design: Stainless Steel Door Handle Retainer Kit
Supplied in: Self colour. Parts supplied loose

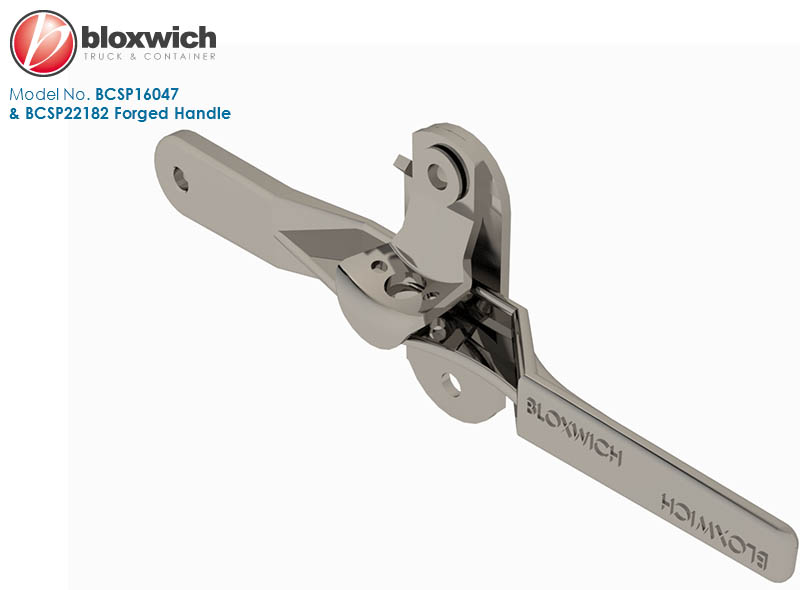

Use: Bolt-on door handle retainer assembly for securing the BCSP22182 forged handle in the closed position
Weight: 342 g Commodity Code 830249 GTIN 5060345312942
Bush: BCSP13636 Catch: BCSP13856 Retainer: BCSP13855
Contains 1 M10 x 35 set screw (BCSP14887), 1 M10 x 30 set screw (BCSP14886), 2 flat washers (BCSP14885) & 2 nyloc nuts (BCSP14884 all are A2 stainless steel

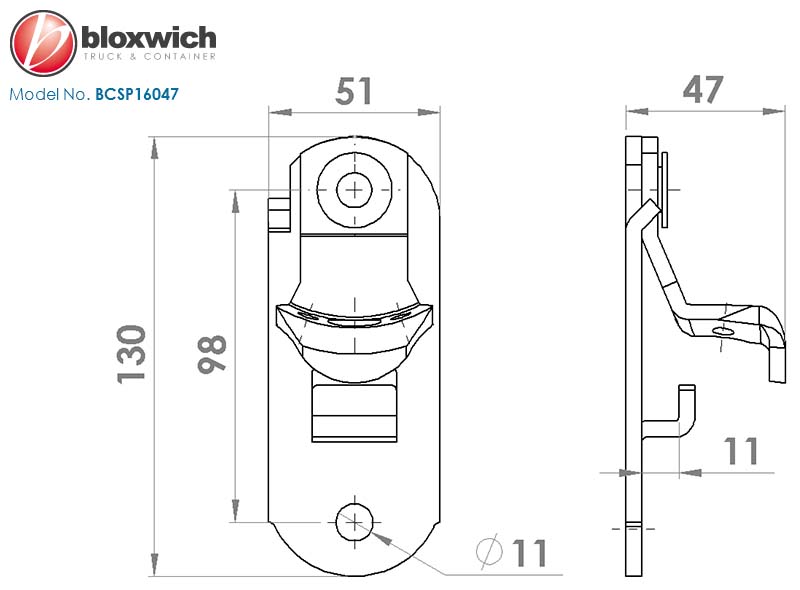

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
