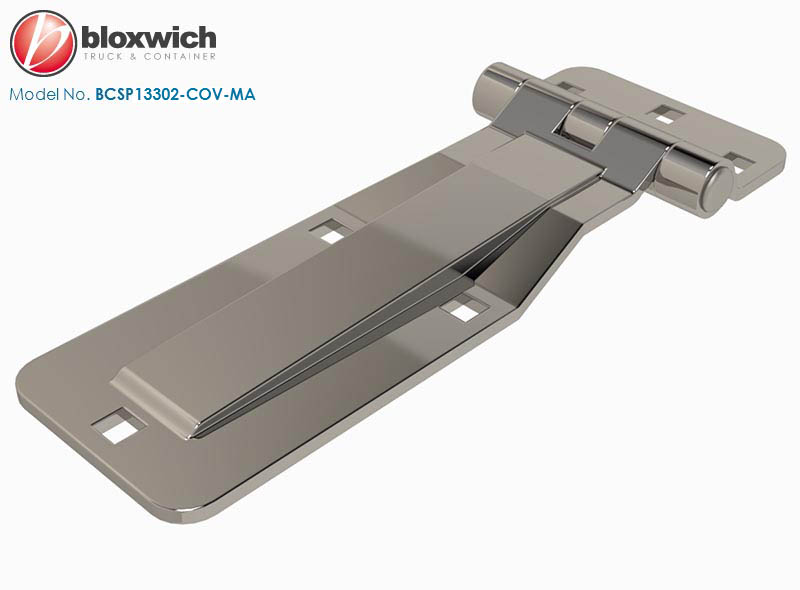

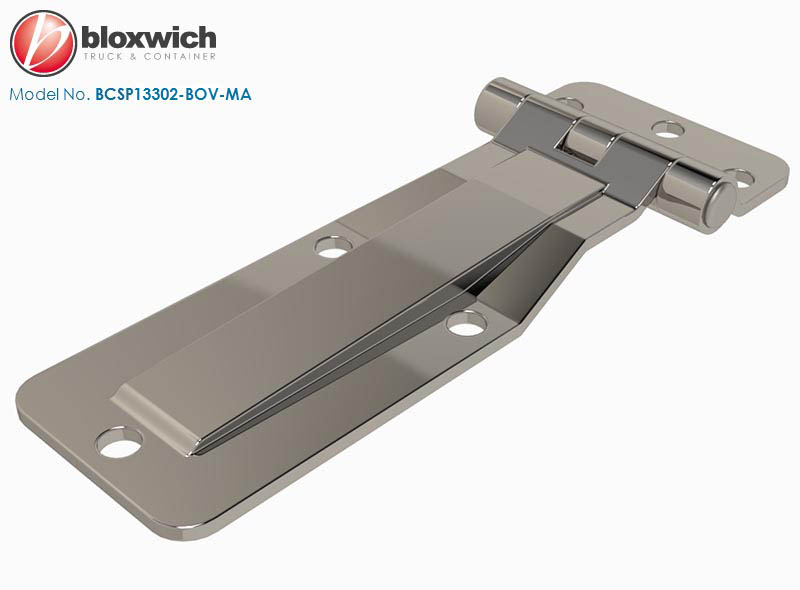

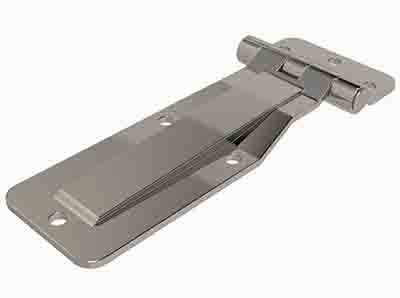

Bloxwich Standard Patent Design: Stainless Steel Hinge 185mm
Supplied in: 304SS electro-polished finish
Use: General purpose pressed stainless steel hinge assembly based on the standrard BCSP13302 hinge but modified to balance the strength/break in time between the hinge blade and bracket for use on products with LPCB ratings. Swan neck design helps clear door seals.

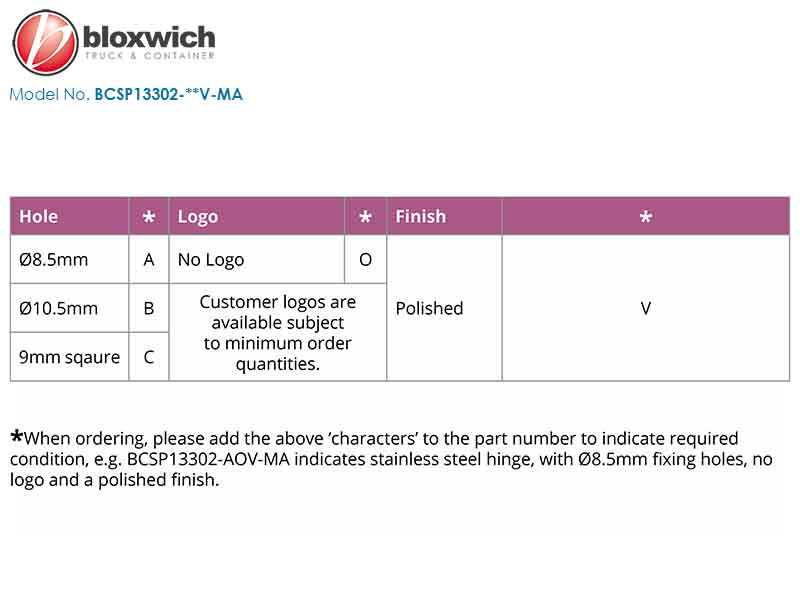

No hole, square hole and other Ø hole sizes available on request (subject to quantity), please contact us for a quote.
Weight: 650 g Commodity No 830210 GTIN 5060345310368
Click

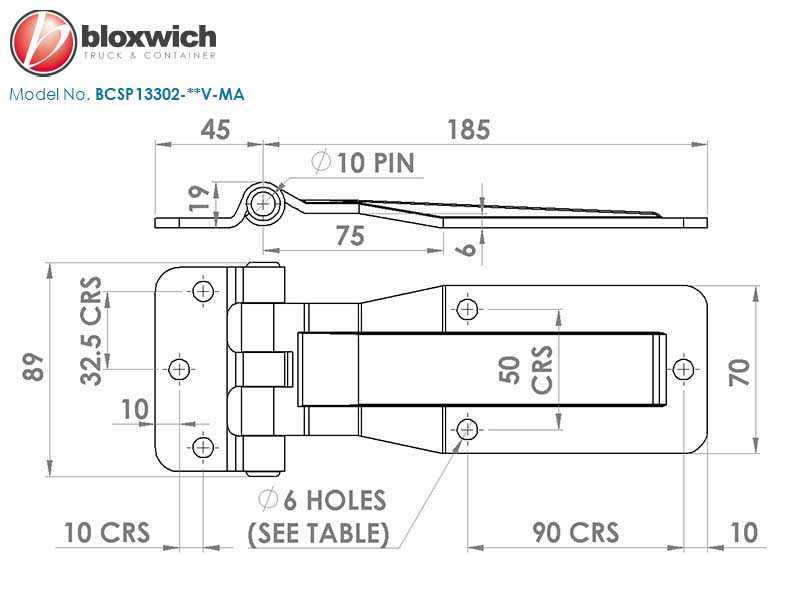

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
