Bloxwich Standard Patent Design Mild Steel Door Gear: BE2566M, 34mm Door Locking Gear, Fully Welded, Bushed with Bolt on Brackets

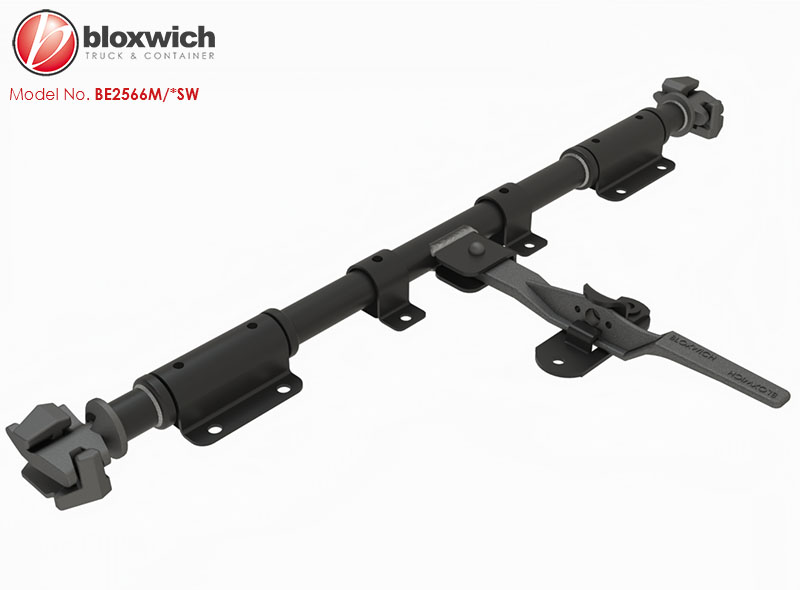

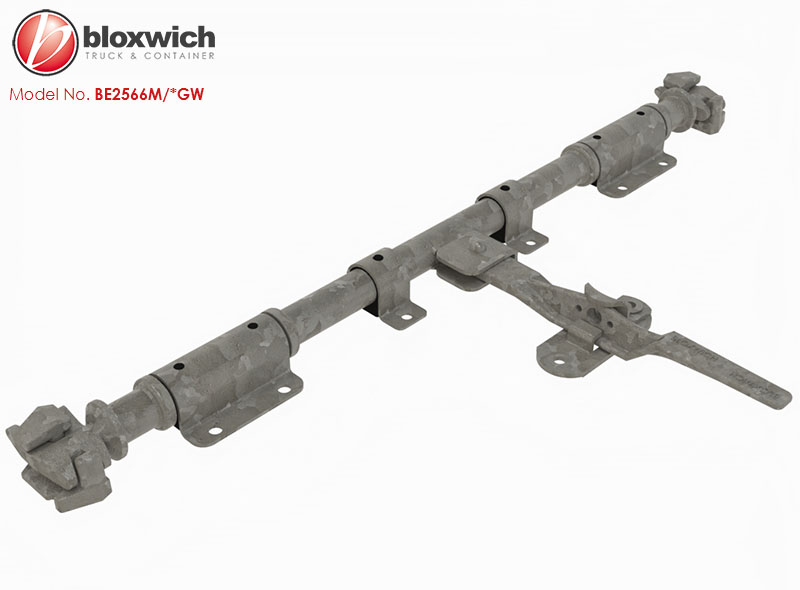

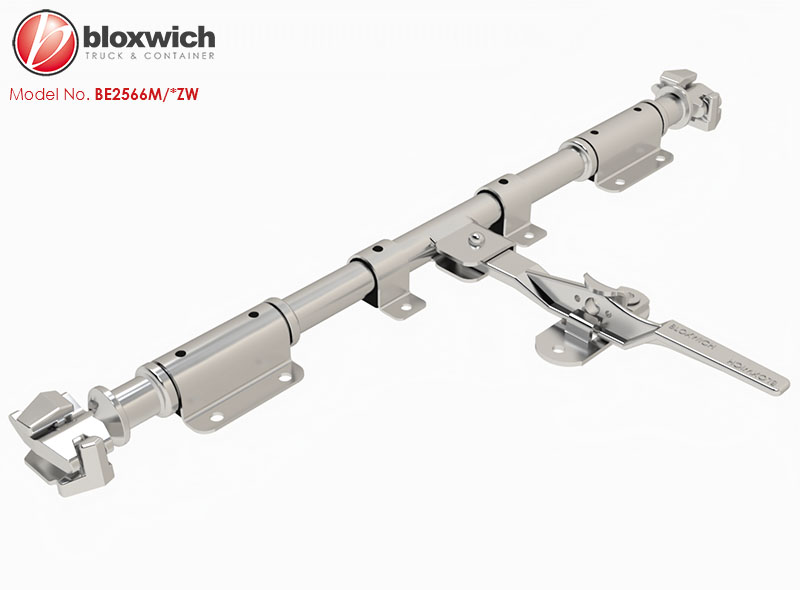

Supplied in: Galvanised finish as standard, Zinc Plated or Self Colour finishes also available.

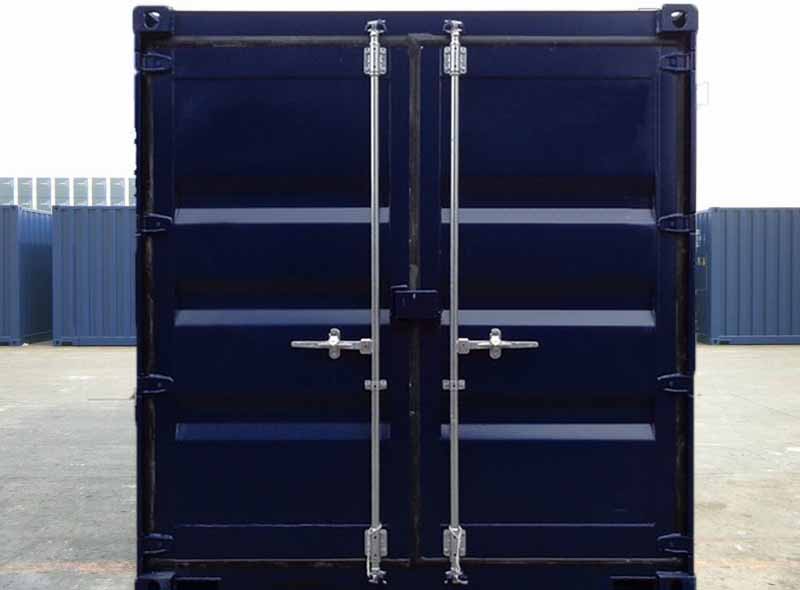

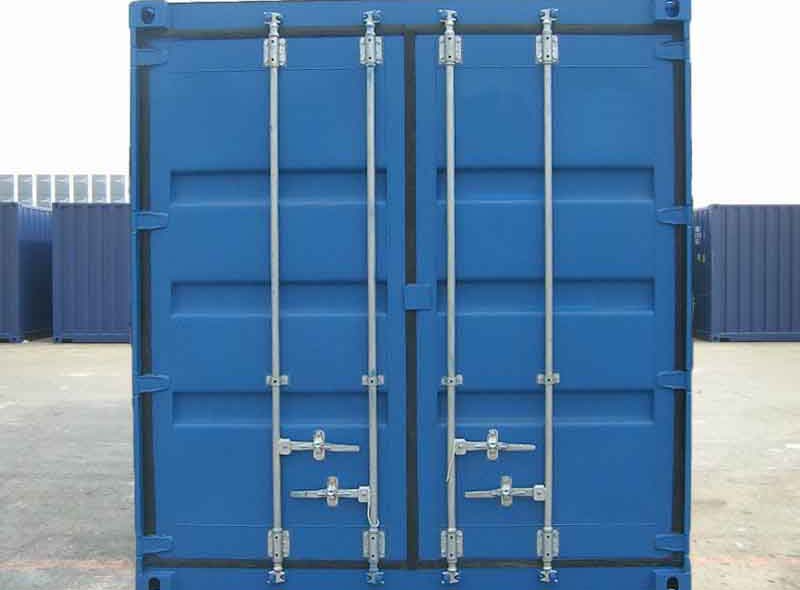

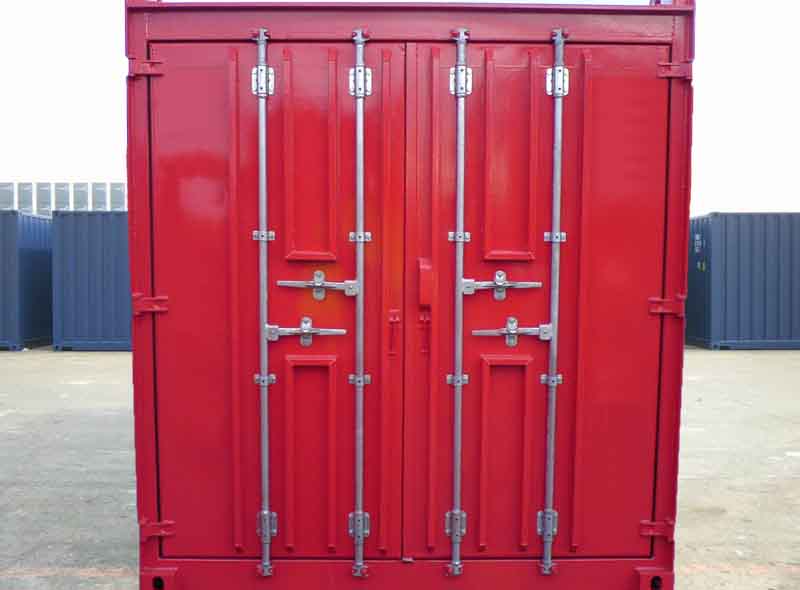

Use: Standard design for use on shipping containers and offshore containers. Fully welded and finished to your exact dimensions and ready for you to just bolt onto to your container. State left hand (LH) or right hand (RH) lockrods or both (must be an even number of rods) and they can also be mounted horizontally.
For instructions on how to measure your existing door gear in order to fill out a lockrod chart or the details required on this products order page please downlaod
BCP_1019_KBA How To Measure & Complete a Door Gear Lock Rod Chart.pdfSet weight in plastic bag: 4.9 kg + 2.4 kg/m of tube Commodity Code 830249 GTIN 5060345310849
Depending on the length of this product, at the checkout "Shipping And Handling/Class of Service" page our website may default to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.

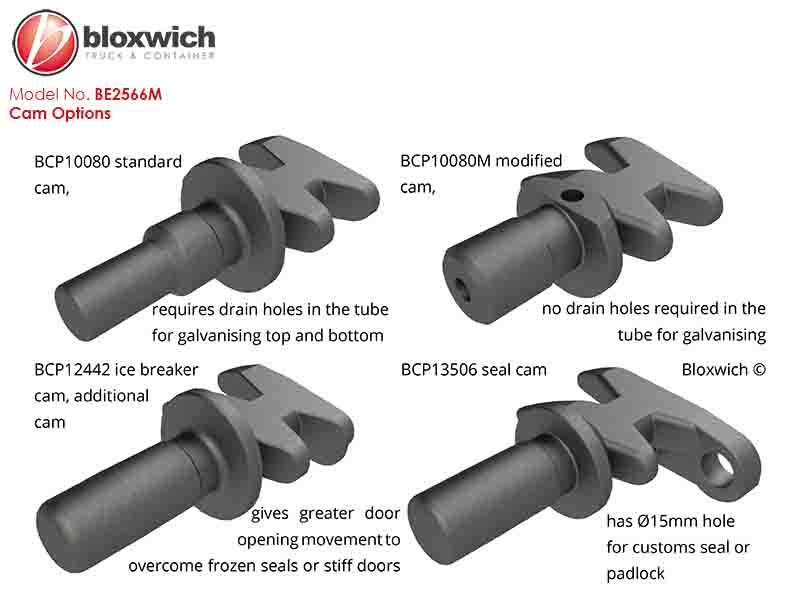

Cams: Standard, modified, ice breaker, security(seal), universal or narrow base*

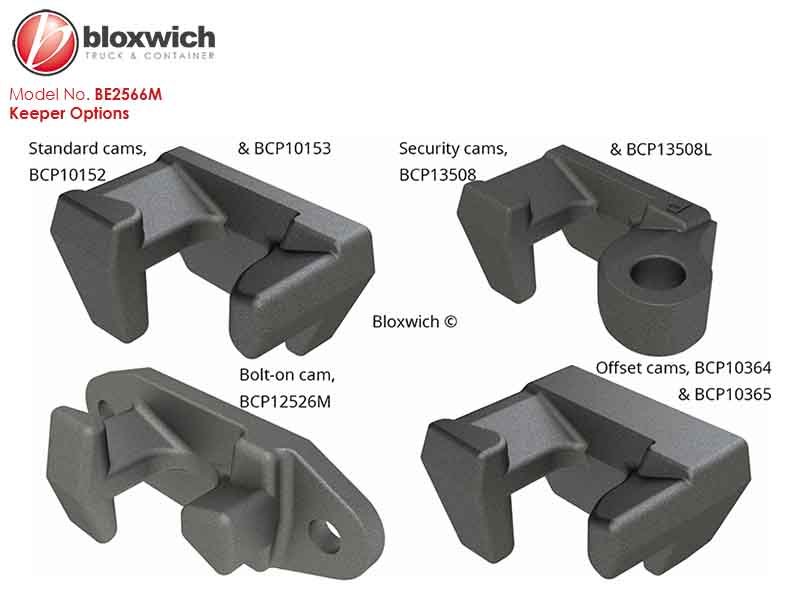

Keepers: Weld on, bolt on, security(seal)#, offset or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
*Not available on all models and see illustrations for further details.
#if selected security(seal) cams and keepers will only be fitted to the lower end of the lockrod and standard cams and keepers will be fitted to the upper end. If you require anything different at the top please contact us after placing your order.
Door gear was a revamp of an old Bloxwich model. Designed by Bloxwich in 1968. This is the original and still the best container door gear and it became standard on every shipping container. As a result of its type approval and widespread use on the shipping containers BE2566M became the standard door gear used all different shapes and sizes of offshore containers, side door baskets and end door baskets. All Bloxwich part numbers are protected by trademark ®
TM and copyright ©. Click
HERE for more details
Q) How long does it take to make them? A) Usually around 5-10 working days.
Q) Can I buy a loose kit of parts? A) Yes please see
BE2566M for details.
Q) Where can I download a lock rod chart? A) Lock rod charts are not available for download yet so please contact us to receive them by email.
Fixing Kits & Gasket Sets
Fixing Contains 1 M10 x 35 set screw (BCP14887), 13 M10 x 30 set screws (BCP14886), 14 flat washers (BCP14885) & 14 nyloc nuts (BCP14884) all are galvanised.
BE2566M-GASKET-SET is for weld on keepers and contains, BCP13616E x 2, BCP13617E x 2 & BCP13618Ex 1, BE2566M-GASKET-SET2 is for bolt on keepers and contains BCP20106E x 2, BCP13616 x 2, BCP13617E x 2 & BCP13618E x 1 and BE2566M-GASKET-SET3 is for weld on keepers where the door panels are inset by 3mm from their frames and contains BCP13616E x 2, BCP13617E/4 x 2 & BCP13618E/4 x 1.

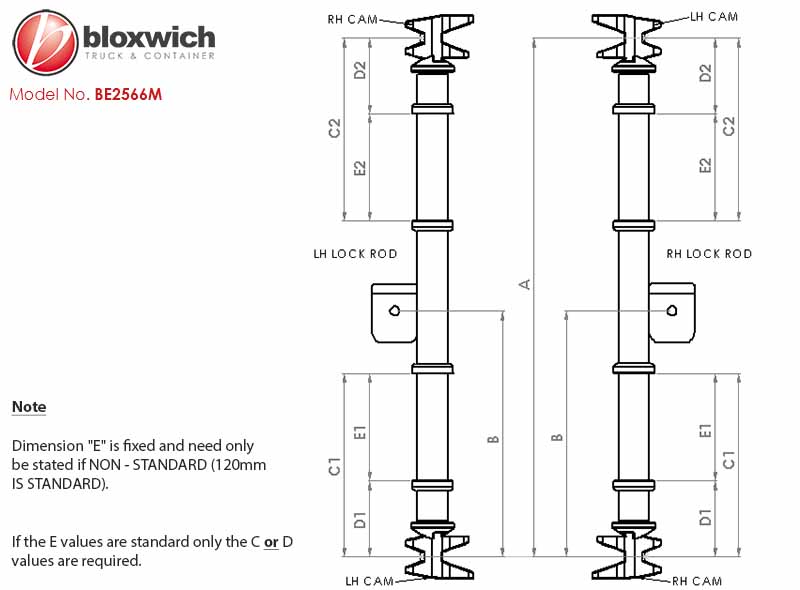

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
