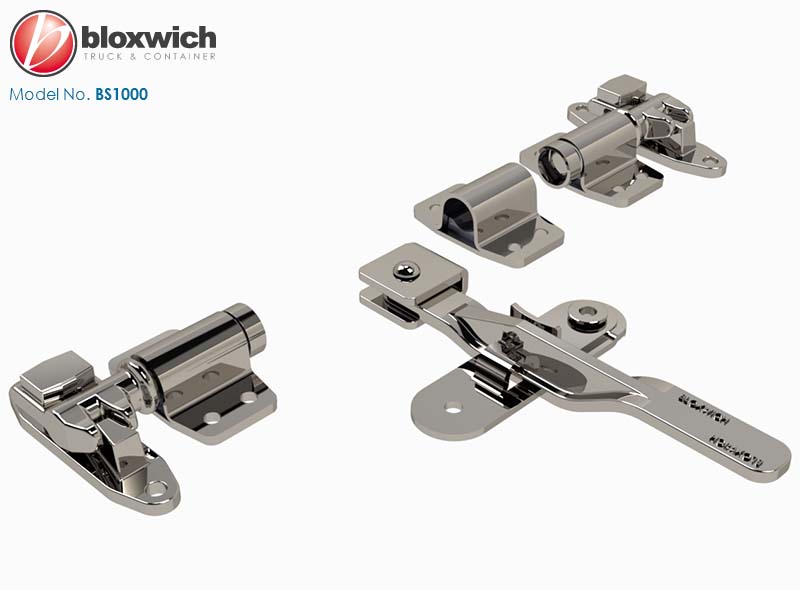

Bloxwich Standard Patent Design Polished Stainless Steel Door Gear: BS1000 22mm Door Locking Gear, Bushed, Bolt on Brackets & Keepers with Small Forged Handle

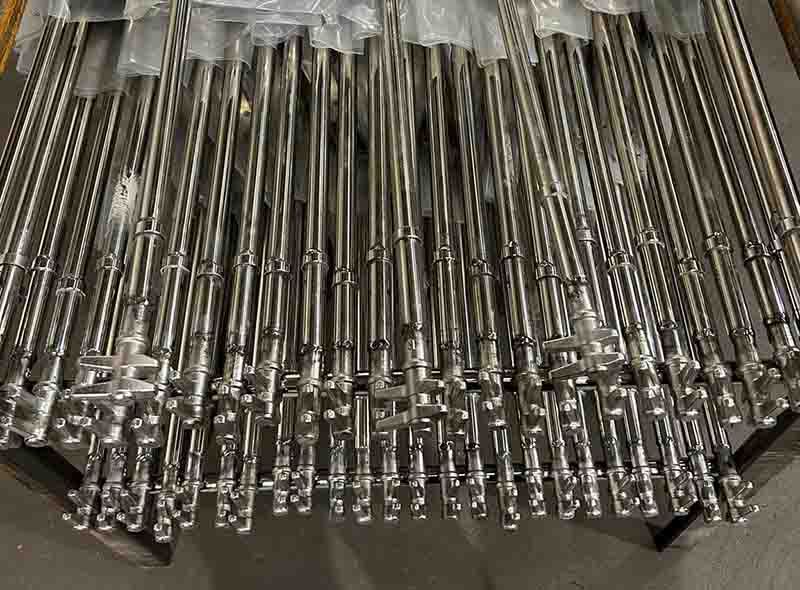

Supplied in: Polished 304 Stainless Steel as standard. Parts supplied loose, tube sold separately and fully welded also available.

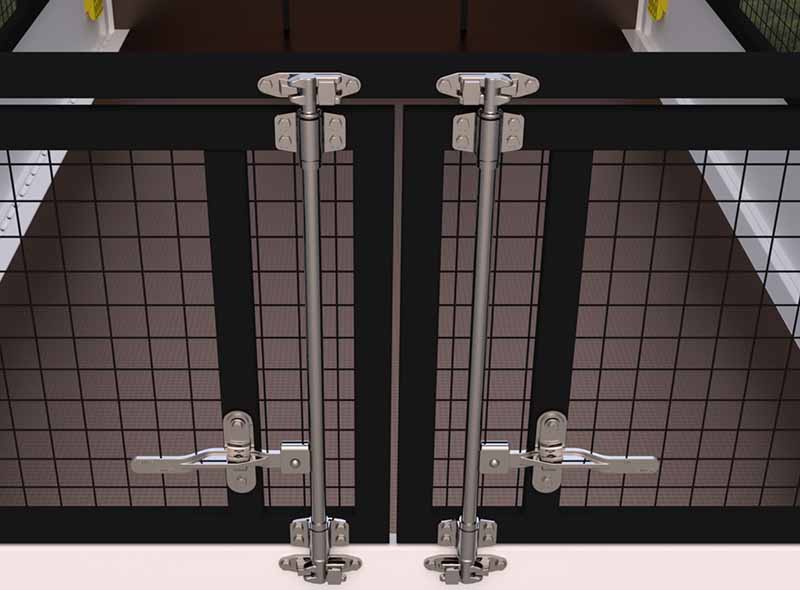

Use: Light, low profile, provides anti racking. Fits left hand or right hand doors and can be mounted horizontally or vertically.

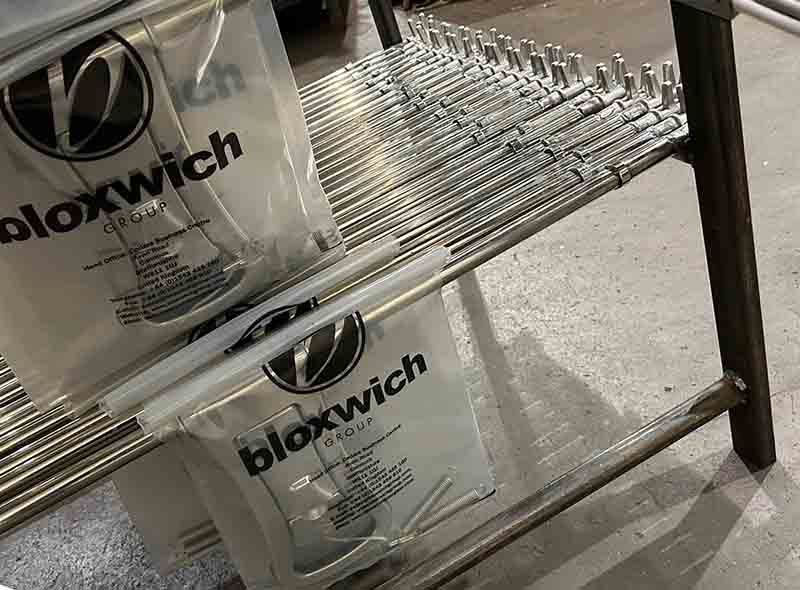

Set weight in plastic bag: 2.7 kg Commodity Code 830249 GTIN 5060345311679
N/A
Door gear was a revamp of an old Bloxwich model B3525. Designed by Bloxwich 1975. All Bloxwich part numbers are protected by trademark ®TM and copyright ©.
Coming soon.
Fixing kit contains 5 M8 x 35 set screw (BCSP13283), 13 M8 x 30 set screws (BCSP13282), 18 flat washers (BCSP13281) & 18 nyloc nuts (BCSP13280) all are A2 stainless steel.
B1000-GASKET-SET contains BCP20105E x 2, BCP20086E x 3 & BCP13619 x 1 (for the small forged handle)
B1000-GASKET-SET2 contains BCP20105E x 2, BCP20086E x 3 & BCP13618E x 1 (for the pressed/d grip/forged handle)
B1000-GASKET-SET3 contains BCP20105E x 2, BCP20086E x 3 & BCP24021E x 1 (for the paddle handle)
B1000-GASKET-SET4 contains BCP20105E x 2, BCP20086E x 3, BCP24021E x 1 & BCP24016E x 1 (for the paddle handle with ISR)

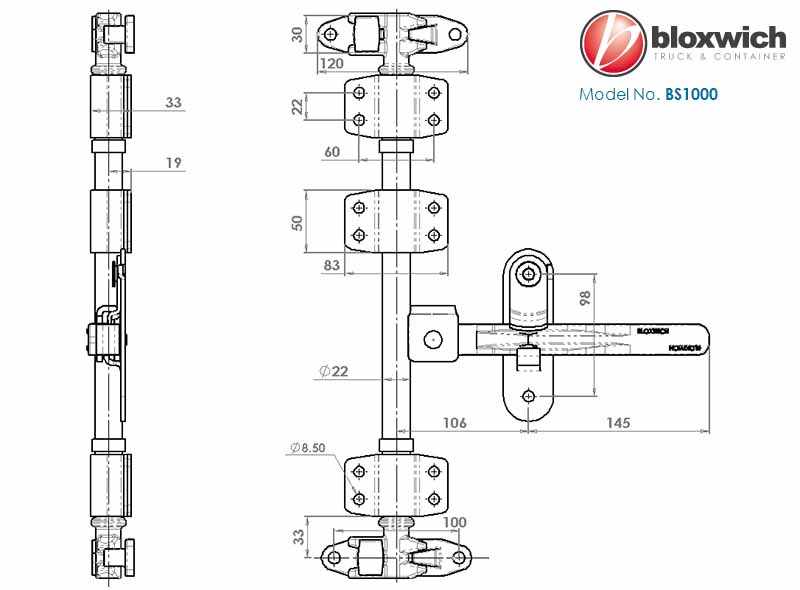

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
