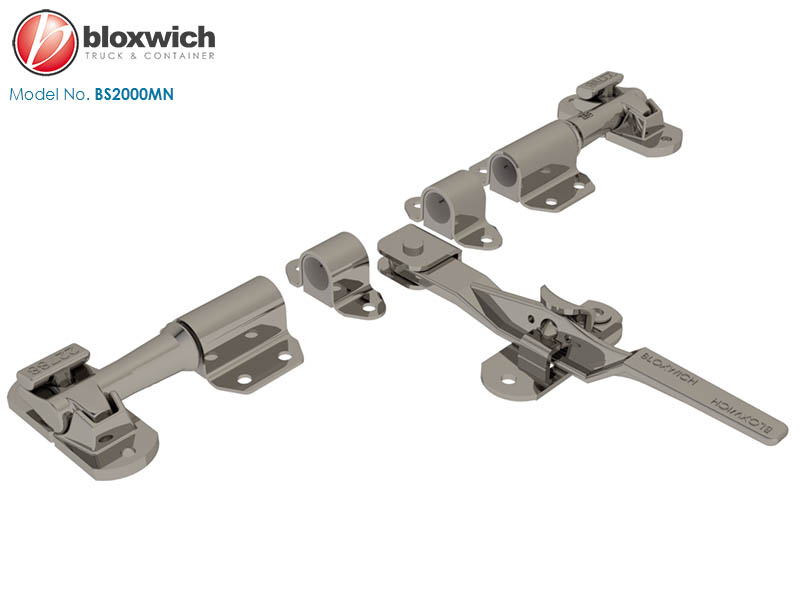

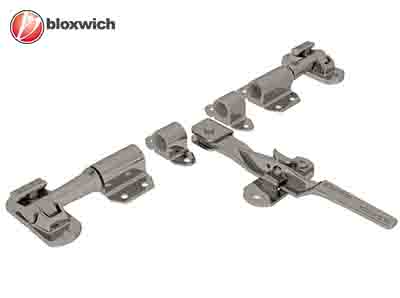

Bloxwich Standard Patent Stainless Steel Door Gear - HD: BS2000MN, Ø27mm Door Locking Gear, Bushed, Bolt on Brackets & Keepers
Supplied in: Polished 304 Stainless Steel as standard. Parts supplied loose, tube sold separately and fully welded also available.
Use: Bolt on profile, provides anti racking. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Set weight in plastic bag: 5.1 kg Commodity Code 830249 GTIN 5060345317480
Cams: Standard, modified, ice breaker, security(seal), universal or narrow base*
Keepers: Weld on, bolt on, security(seal), offset or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
*Not available on all models and see illustrations for further details.
Stainless steel version of the hugely popular B2000MN door gear that is the standard on most trucks and trailers. All Bloxwich part numbers are protected by trademark ®
TM and copyright ©.
Click
HERE to see the full news article on the B2000MN door gear history.
Coming soon.
Fixing kit contains 5 M10 x 35 set screw (BCSP14887), 13 M10 x 30 set screws (BCSP14886), 18 flat washers (BCSP14885) & 18 nyloc nuts (BCSP14884) all are stainless steel.
B2000MN-GASKET-SET contains BCP20109E x 2, BCP20082E x 2, BCP20085E x 2 & BCP13618E x 1 (for the pressed/d grip/forged handles)
B2000MN-GASKET-SET2 contains BCP20109E x 2, BCP20082E x 2, BCP20085E x 2 & BCP24009E x 1 (for the paddle handle)
B2000MN-GASKET-SET3 contains BCP20109E x 2, BCP20082E x 2, BCP20085E x 2, BCP24009E x 1 & BCP24016E x 1 (for the paddle handle with ISR)
Click

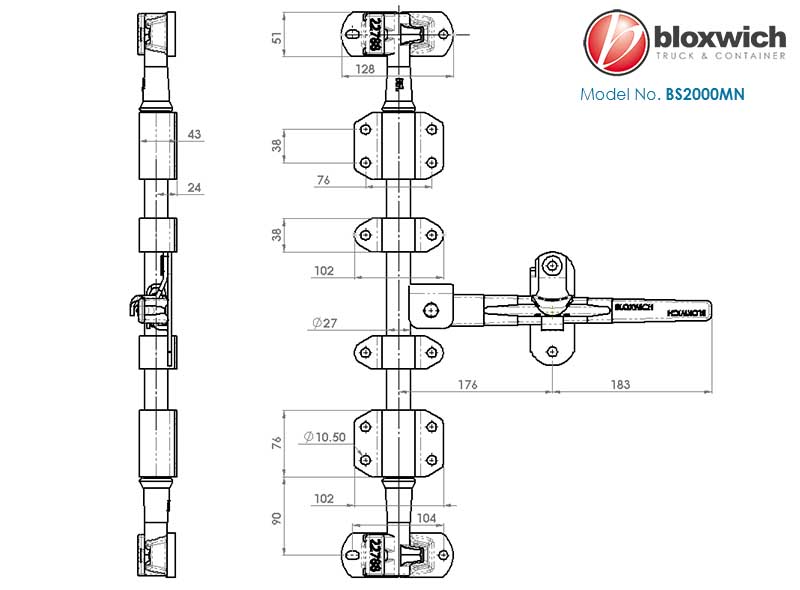

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
