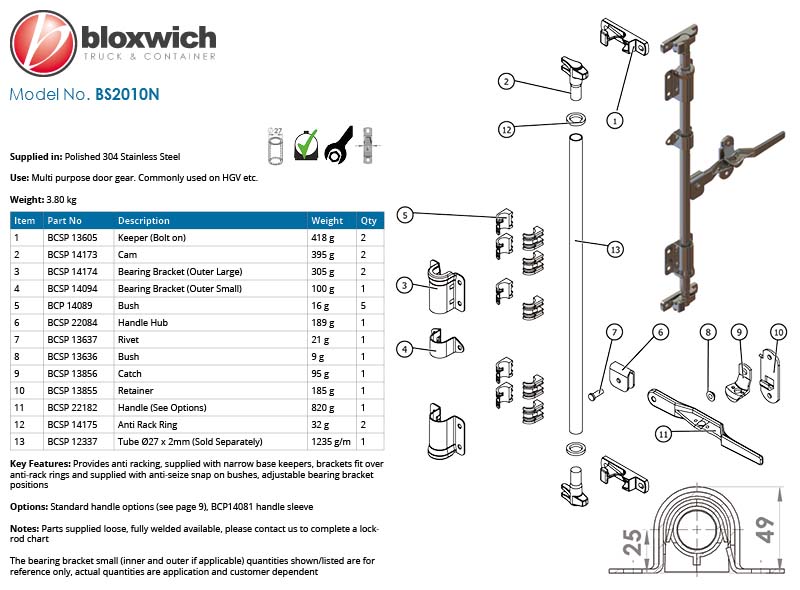

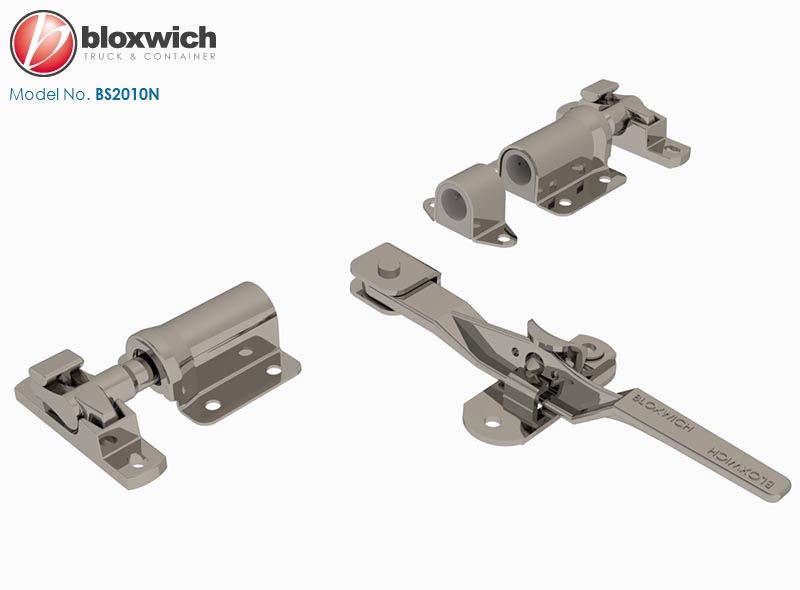

Bloxwich Standard Patent Design Polished Stainless Steel Door Gear: BS2010N 27mm Door Locking Gear, Bushed, Bolt on Brackets & Narrow Base Keepers
Supplied in: Polished 304 Stainless Steel as standard. Parts supplied loose, tube sold separately and fully welded also available.
Use: Bolt on profile, provides anti racking. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Set weight in plastic bag: 5.2 kg Commodity Code 830249 GTIN 5060345311938
Cams: Standard, universal or narrow base*
Keepers: Weld on, bolt on or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
*Not available on all models
Door gear was designed by Bloxwich circa 1968 and was a modification from BE2000. All Bloxwich part numbers are protected by trademark ®TM and copyright ©.
Coming soon.
Fixing kit contains 5 M10 x 35 set screw (BCSP14887), 11 M10 x 30 set screws (BCSP14886), 16 flat washers (BCSP14885) & 16 nyloc nuts (BCSP14884) all are A2 stainless steel.
BS2010N-GASKET-SET contains BCP20110E x 2, BCP20084E x 2, BCP20081E x 2 & BCP13618E x 1 (for the pressed/d grip/forged handles)
BS2010N-GASKET-SET2 contains BCP20110E x 2, BCP20084E x 2, BCP20081E x 2 & BCP24009E x 1 (for the paddle handle)
BS2010N-GASKET-SET3 contains BCP20110E x 2, BCP20084E x 2, BCP20081E x 2 & BCP24016E x 1 (for the paddle handle with ISR)

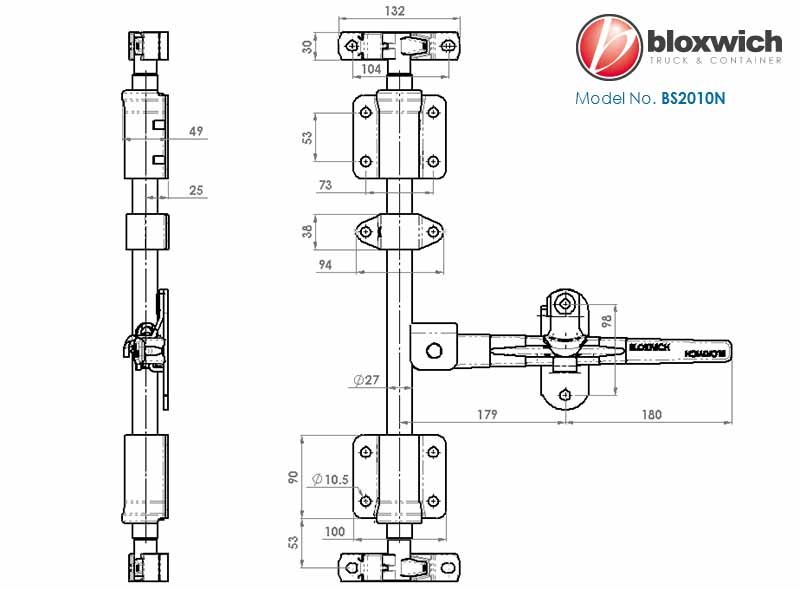

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
