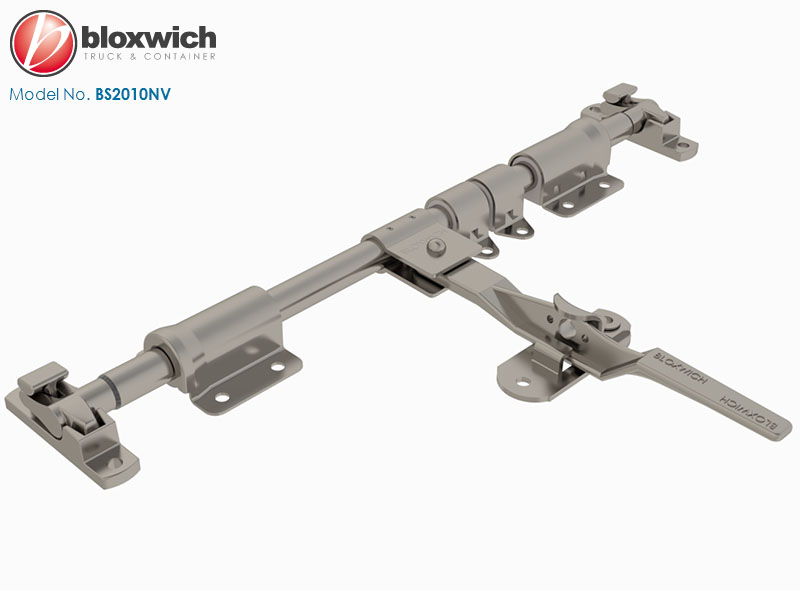

BS2010NV: 27mm Door Locking Gear, Bushed, Bolt on Brackets & Keepers, Variable Height, Narrow Base Cams
Supplied in: Polished 304 Stainless Steel

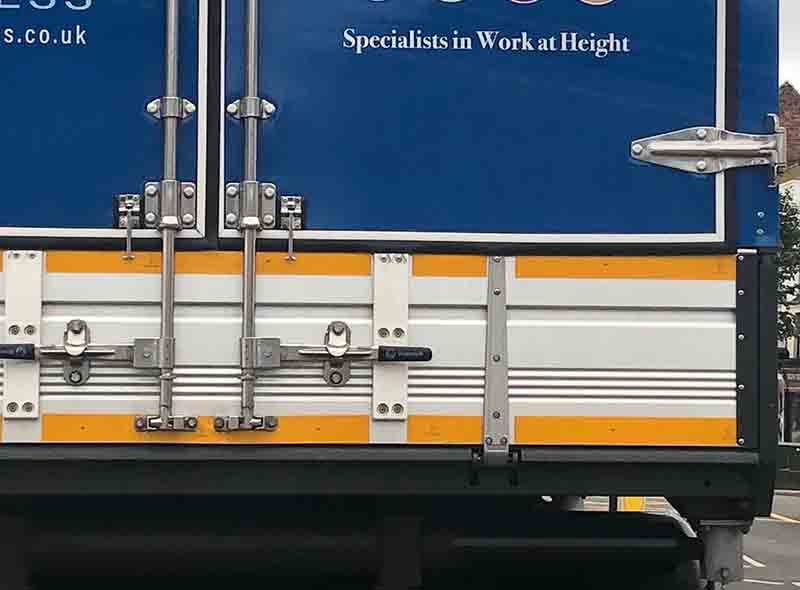

Use: Commonly used on HGV trailers as the variable height easily allows this door gear to be fitted to a range of trailer heights

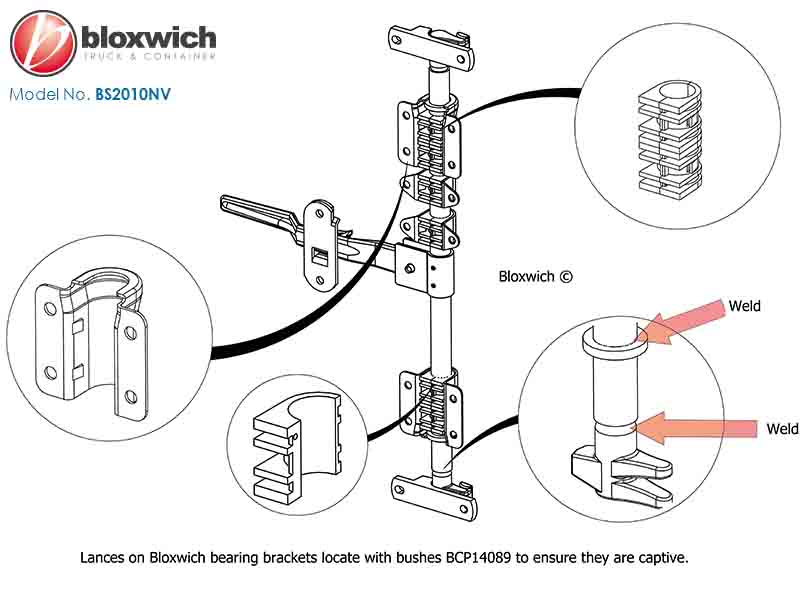

Key Features: Provides anti racking, variable height, supplied with narrow base keepers, brackets fit over anti-rack rings and supplied with anti-seize snap on bushes, adjustable bearing bracket positions. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Notes: Upper and lower rod assemblies fully welded, other parts supplied loose. All parts are in stock, please allow 7-10 days for assembly/welding and polishing.

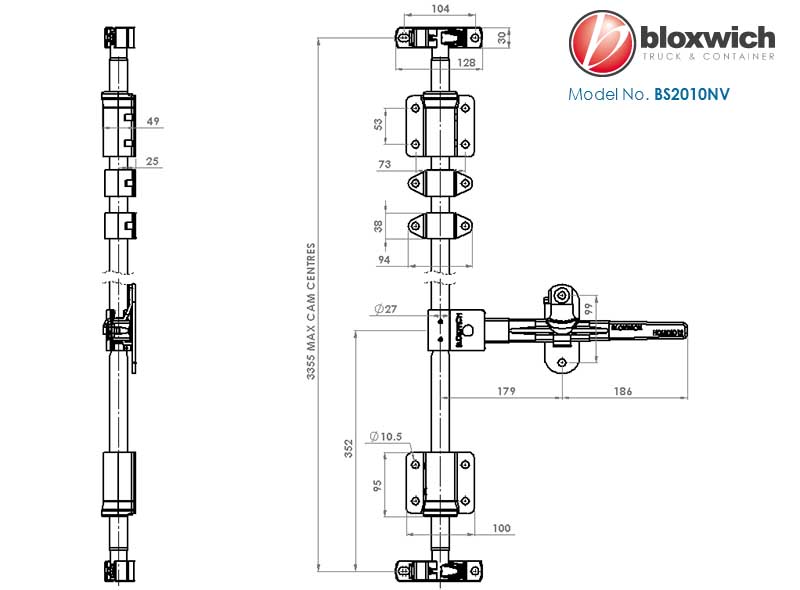

Cam centre dimensions controlled by customer by simply reducing length of upper rod assembly
(Max centres = 3335). Upper rod assembly supplied with 3m length tube

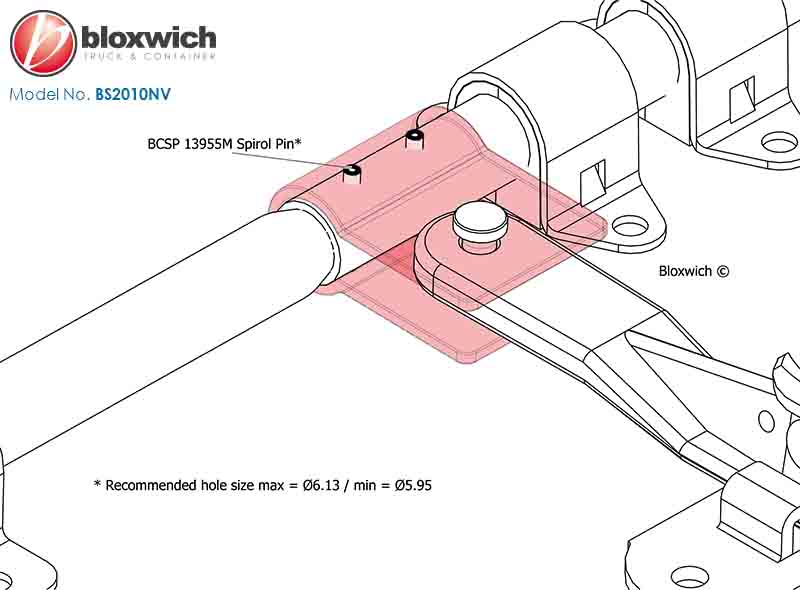

Lower rod assy spigotted for easy assy and alignment with upper rod assy. Handle position fixed at 300mm from centre of lower cam. Handle and hub assembly can be fixed in position by either cross drilling and pinning* or welding if preferred. * Recommended hole size max = Ø6.13mm / min = Ø5.95
The bearing bracket small (inner and outer if applicable) quantities shown/listed are for reference only, actual quantities are application and customer dependent
Set weight in plastic bag: 8.1 kg Commodity code 830249 GTIN 5060345312379
Due to the size of this product, at the checkout "Shipping And Handling/Class of Service" page our website defaults to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.

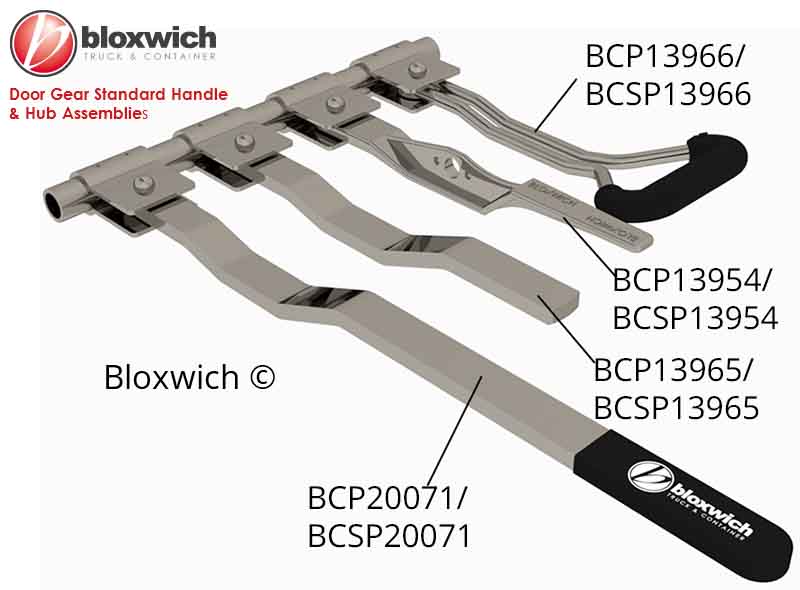

Handles: Forged, D grip, pressed or pressed long.
Only selected fully welded door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
Designed by Bloxwich circa 1978 and was a modification from BE2000. All Bloxwich part numbers are protected by trademark ®
TM and copyright ©. Click
HERE for more details
Coming soon.
Q) Can I buy a loose kit of parts? A) Yes please contact us to discuss your exact requirements.
Q) Where can I download a lock rod chart? A) Lock rod charts are not available for download yet so please contact us to receive them by email.
Q) I don't need a 3m upper rod assembly so can I get a shorter one? A) Yes please contact us to discuss your exact requirements.

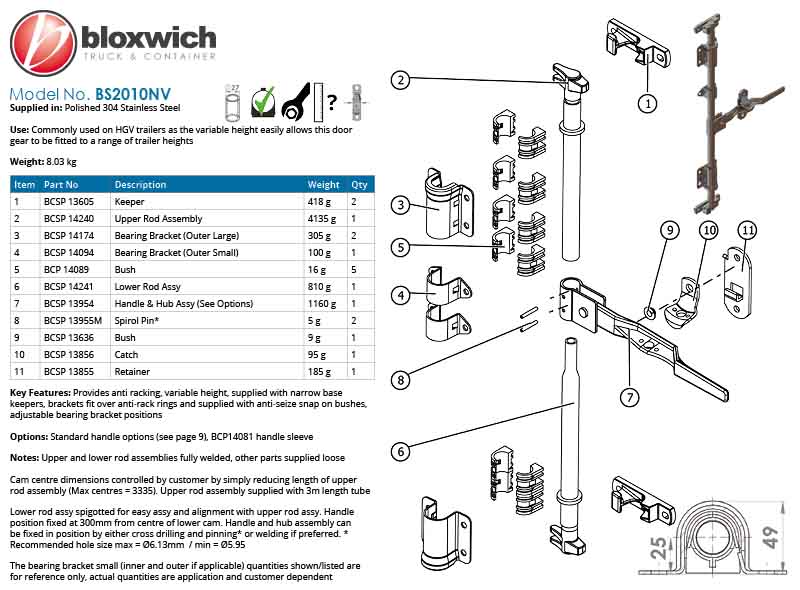

Fixing kit contains 5 M10 x 35 set screw (BCSP14887), 13 M10 x 30 set screws (BCSP14886), 18 flat washers (BCSP14885) & 18 nyloc nuts (BCSP14884) all are A2 stainless steel.
Gasket set contains BCP20110E x 2, BCP20084E x 2, BCP20081E x 2 & BCP13618E x 1
Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
