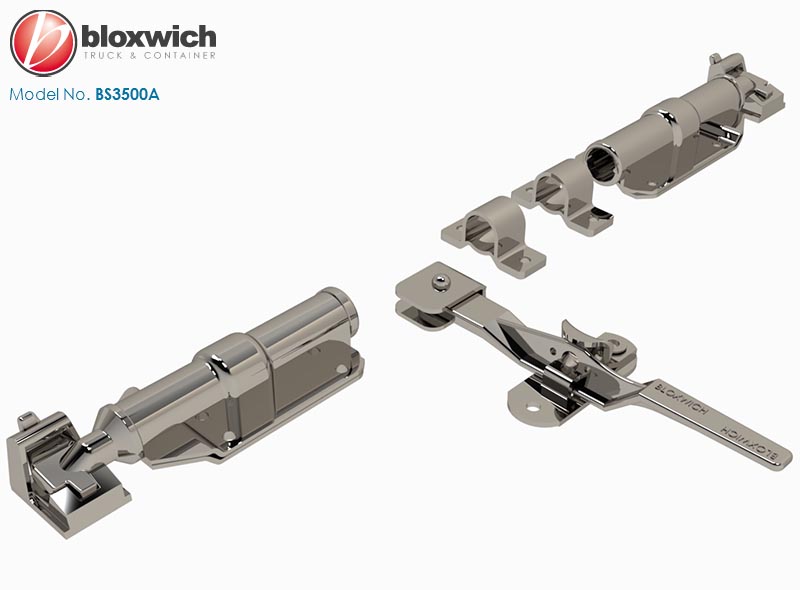

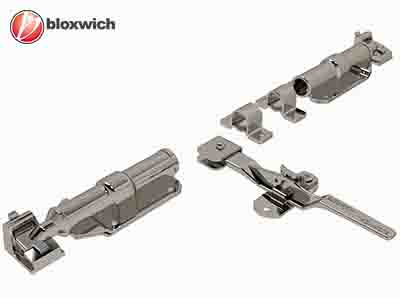

Bloxwich Standard Patent Design Stainless Steel Door Gear: BS3500A 34mm Door locking Gear, Bushed, Bolt on Brackets & Weld on Keepers
Supplied in: Polished 304 Stainless Steel as standard. Parts supplied loose, tube sold separately and fully welded also available.
Use: Bolt on profile, provides anti racking. Fits left hand or right hand doors and can be mounted horizontally or vertically.
Set weight in plastic bag: 7.3 kg Commodity Code 830249 GTIN 5060345311921
Cams: Standard, universal or narrow base*
Keepers: Weld on, bolt on or narrow base*
Handles: Small forged, forged, D grip, pressed or pressed long. Forged, D grip, pressed or pressed long wraparound handle hub assemblies. Handle sleeves are also available*
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
*Not available on all models
Door gear was a revamp of an old Bloxwich model. Designed by Bloxwich in 1968. All Bloxwich part numbers are protected by trademark ®TM and copyright ©.
Coming soon.
Fixing kit contains 14 M10 x 35 set screw (BCSP14887), 14 flat washers (BCSP14885) & 14 nyloc nuts (BCSP14884) all are A2 stainless steel.
Gasket set contains BCP20074E x 2, BCP20073E x 2 & BCP13618E x 1

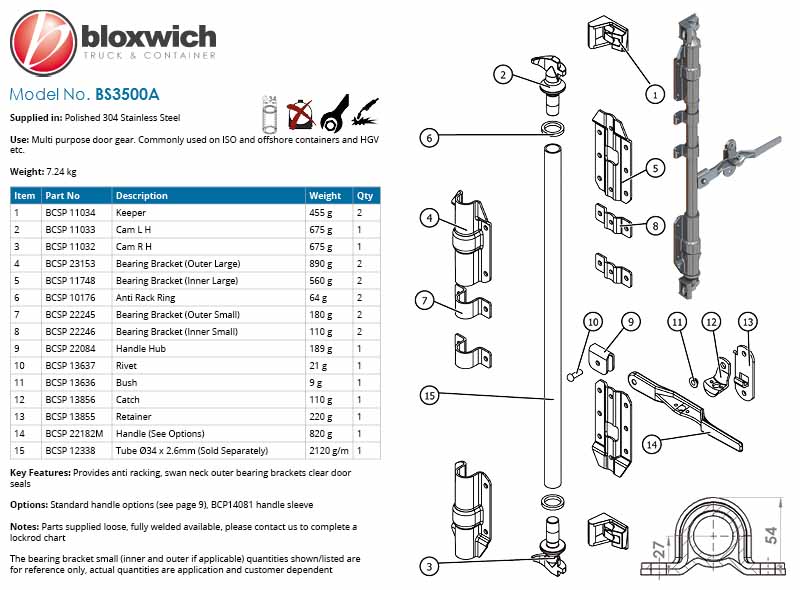

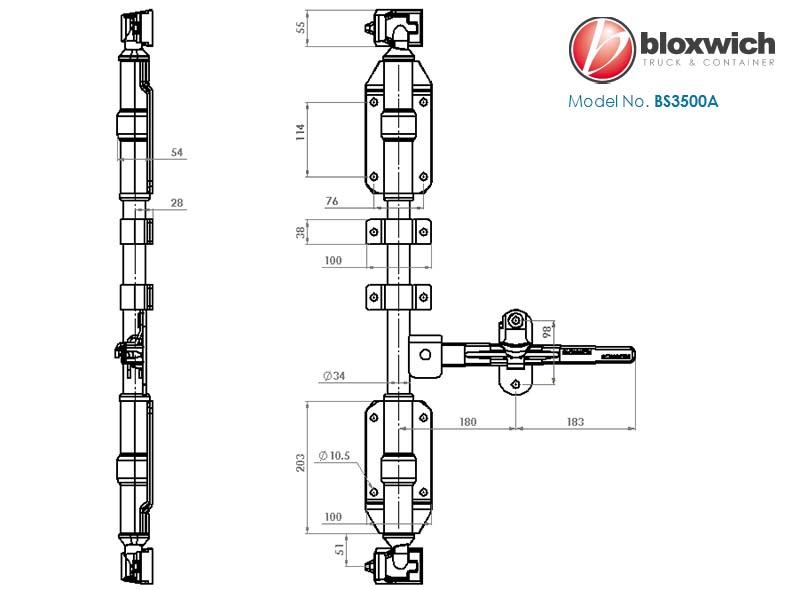

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
