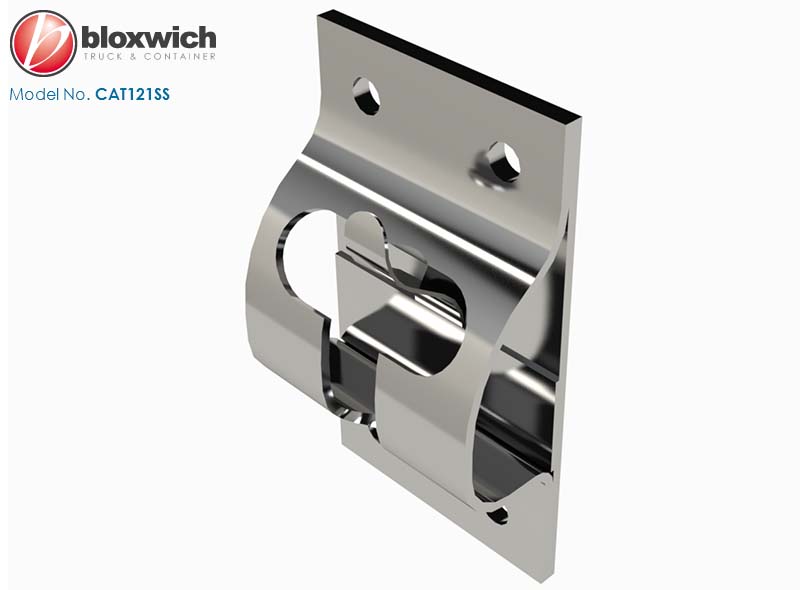

CAT121SS Standard Catch Plate With Spring

Bloxwich Standard Patent Design: Standard Catch Plate With Spring

Supplied in: 304 stainless steel

Use: Can be used with any Bloxwich door retainer hook, security spring tab also fitted

Weight: 70 g  Commodity Code 830249  GTIN 5060345315172

Designed by Bloxwich in 1965.

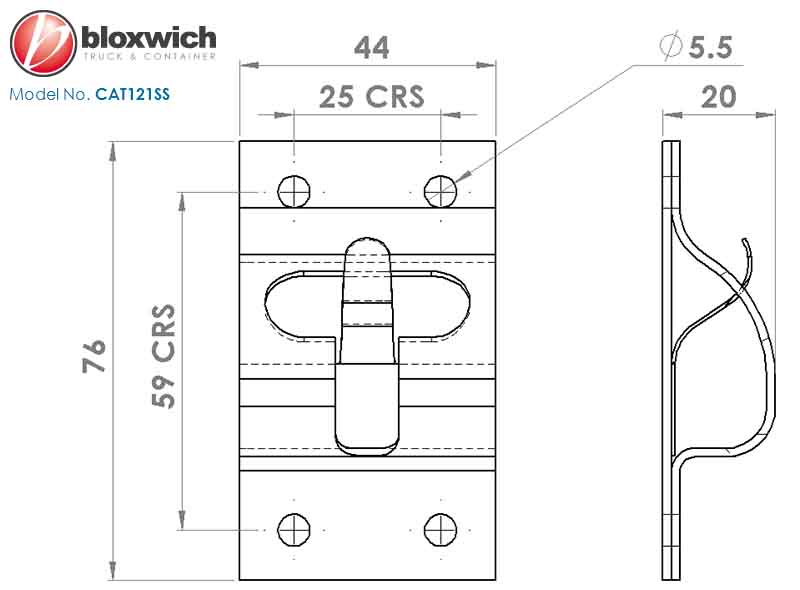

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
