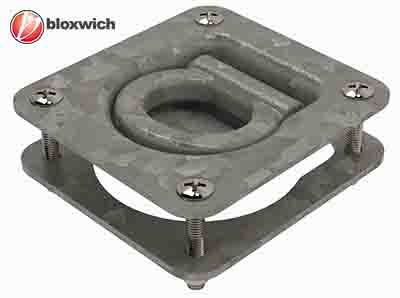

Bloxwich Standard Patent Design: SWL 500kg* Pan Lashing Ring, c/w Back Plate & Fasteners
Supplied in: Zinc plated or galvanised CAT310 with or without spring, galvanised back plate and 304 stainless steel fasteners.

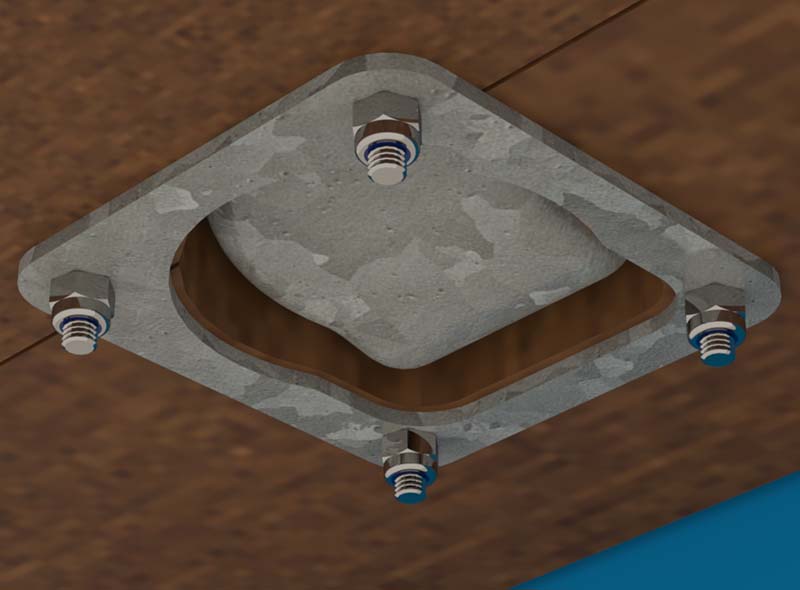

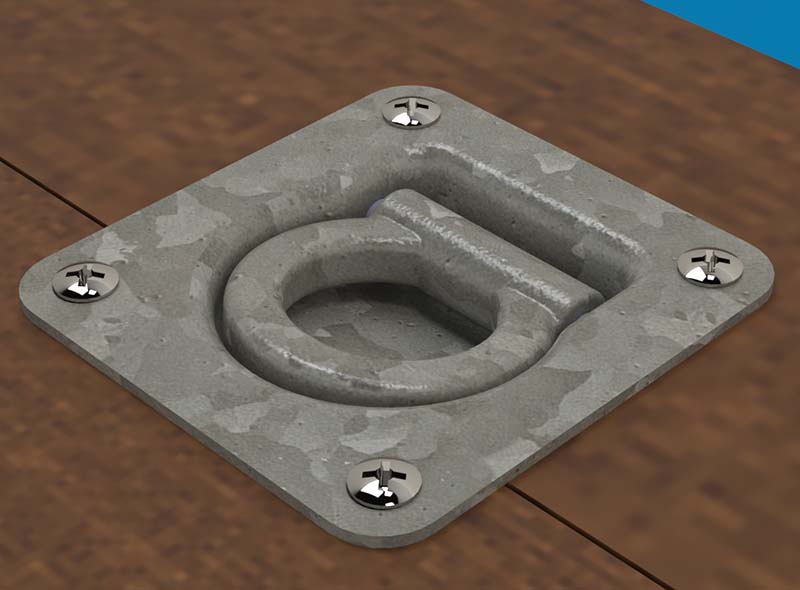

Use: Bolt on design recessed pan lashing ring with optional spring to hold the ring inside the recessed pan when not in use, backplate and fasteners. Enables bolting through floors up to 24mm thick
Weight: 632 g Commodity code 830249 GTIN 5060345310290

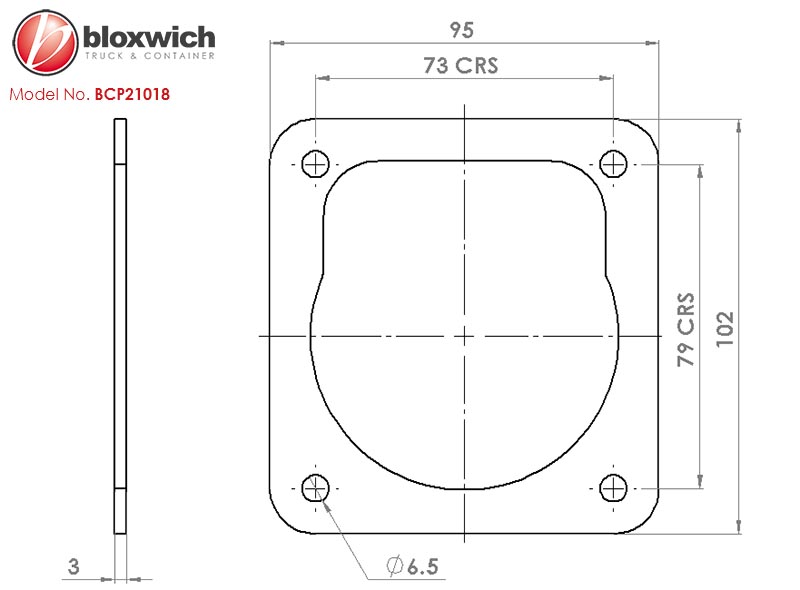

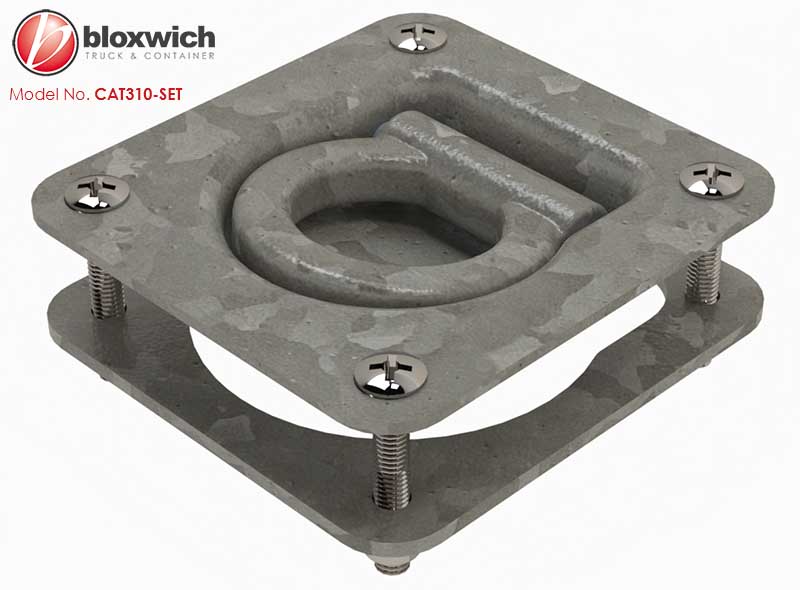

A CAT310 recessed lashing ring, a BCP21018 back plate (galvanised), 4 BCSP22016 set screws and 4 BCSP19066 nyloc nuts
Designed by Bloxwich in 1967 old part number 22869.
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
