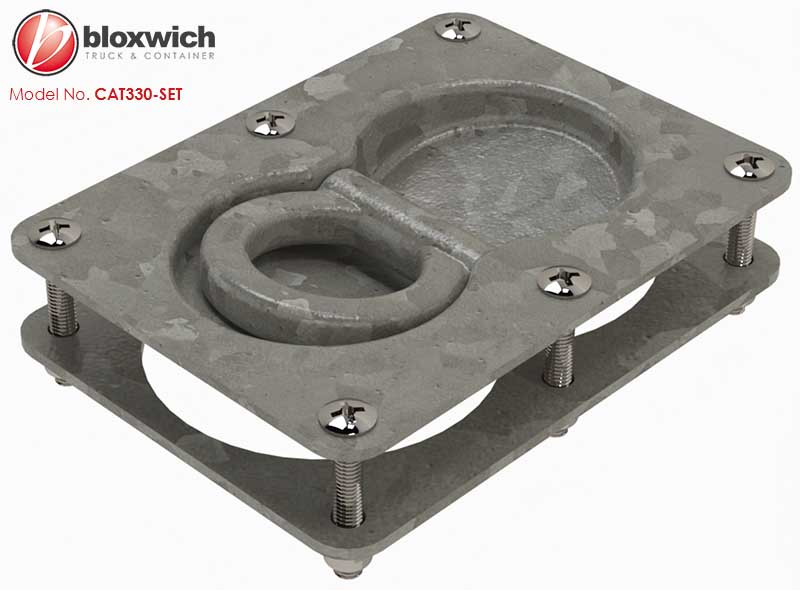

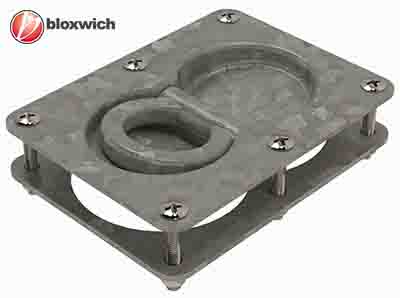

Bloxwich Standard Patent Design: SWL 1000kg* Pan Lashing Ring, c/w Back Plate & Fasteners
Supplied in: Zinc plated or galvanised CAT330, galvanised back plate and 304 stainless steel fasteners.

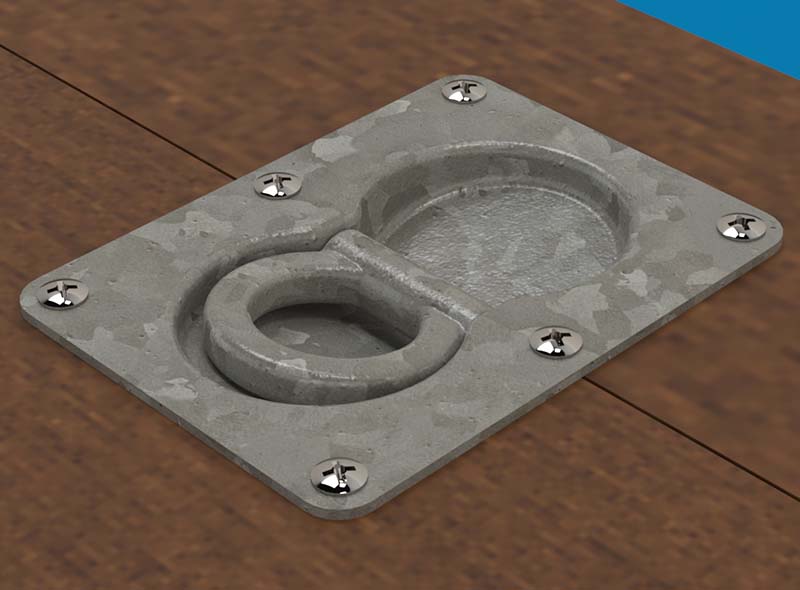

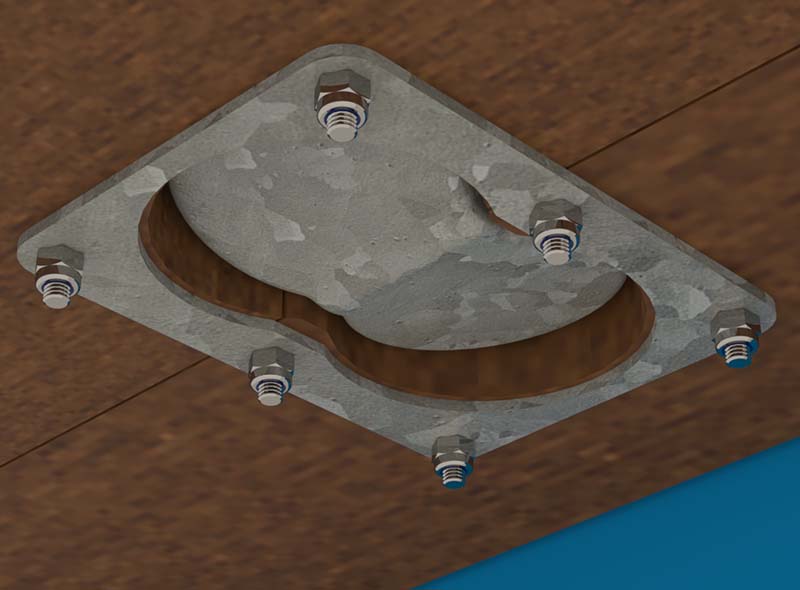

Use: Bolt on design recessed pan lashing ring, backplate and fasteners. Enables bolting through floors up to 24mm thick
Weight: 750 g Commodity Code 830249 GTIN 5060345310306

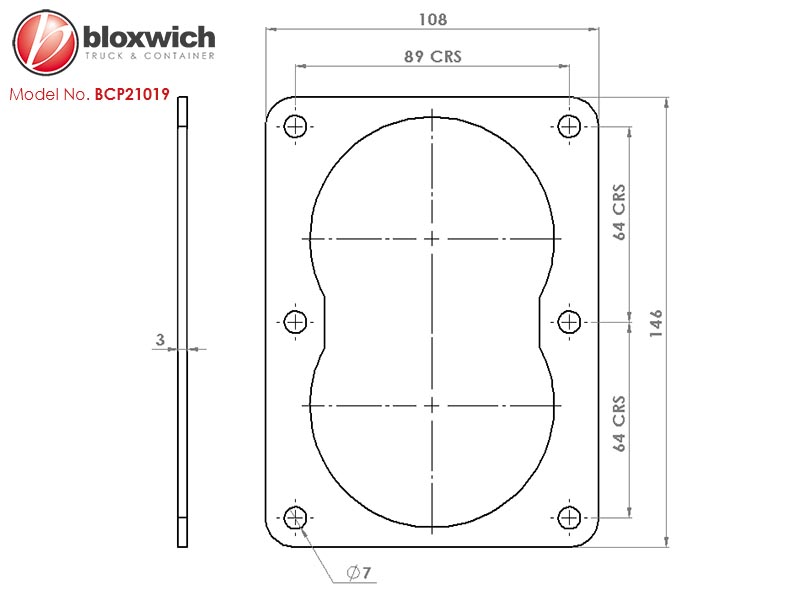

A CAT330 recessed lashing ring, a BCP21019 back plate (galvanised), 6 BCSP22016 set screws and 6 BCSP19066 nyloc nuts
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

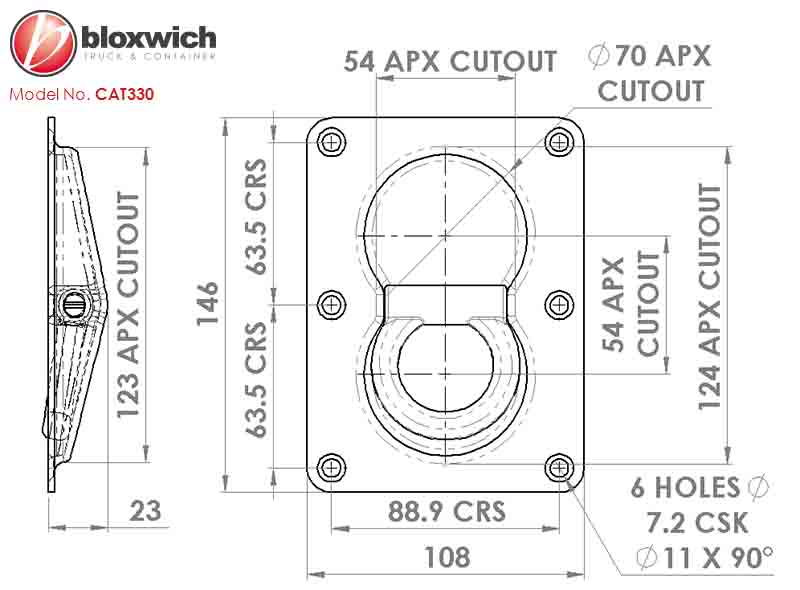

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
