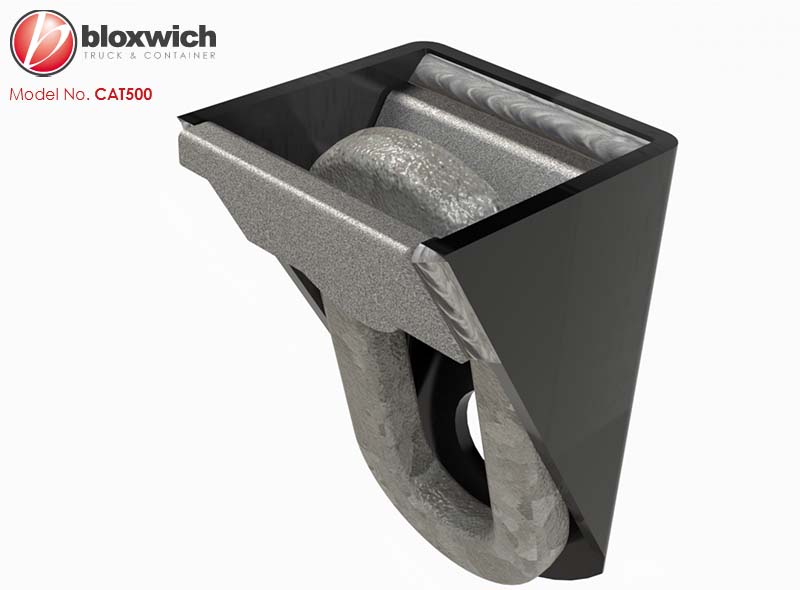

Bloxwich Standard Patent Design: SWL 3.0 T* Lashing Ring
Supplied in: Self colour with galvanised ring

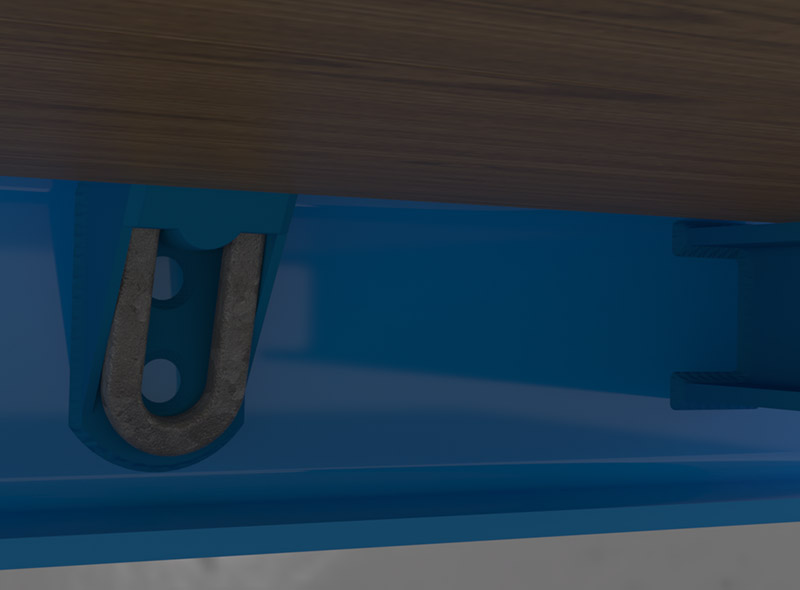

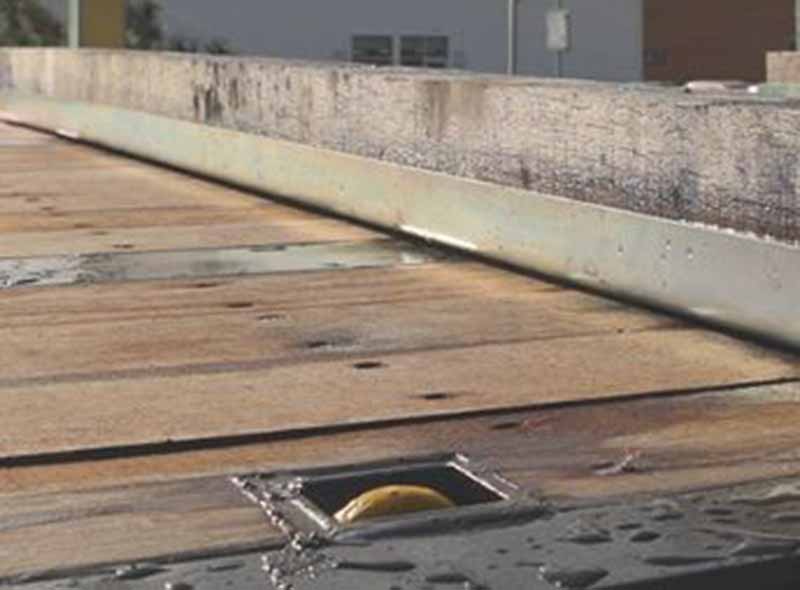

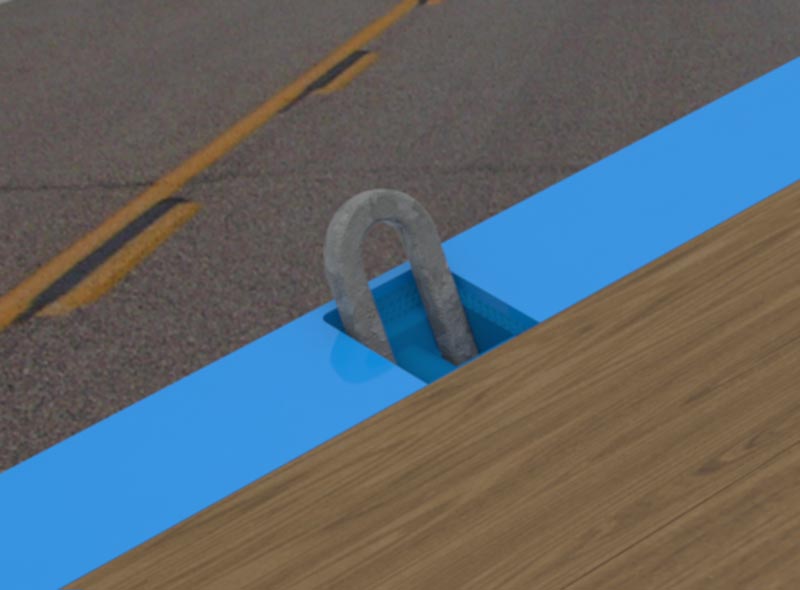

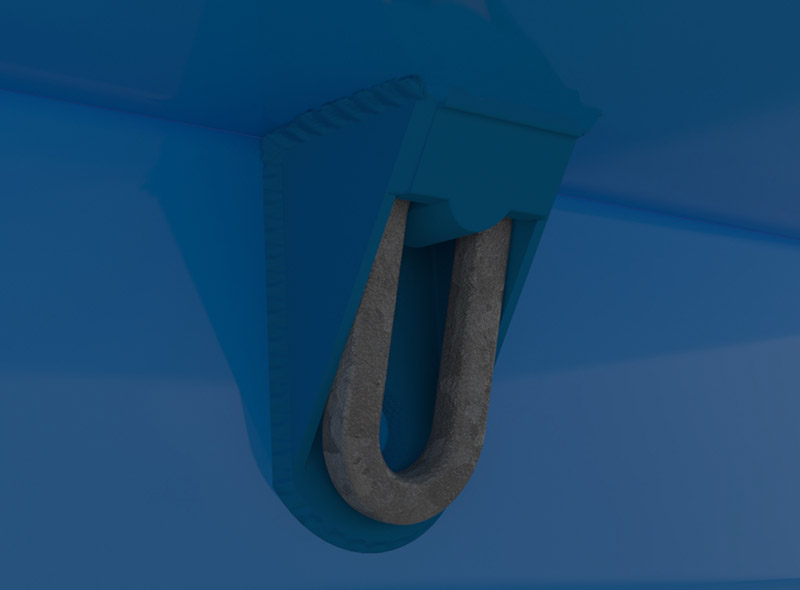

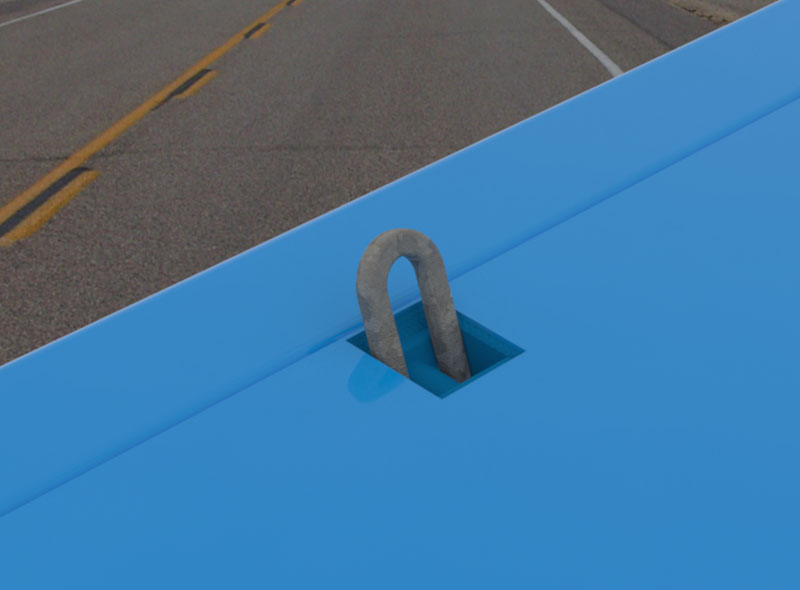

Use: Designed to recess at floor level. Engineered for ease of assembly to trailer frames by welding, forming an integral part of the structure. Can also be butted up against bottom side rails on containers.
Weight: 879 g Commodity No 830249 GTIN 5060345310337
Originally designed by Bloxwich in 1989, well over 100 000 have been manufactured in the last 30 years.
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

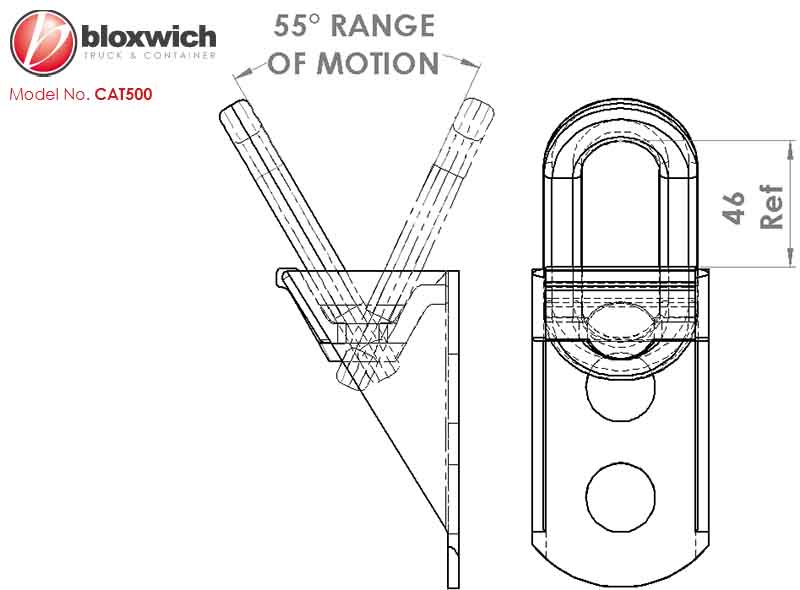

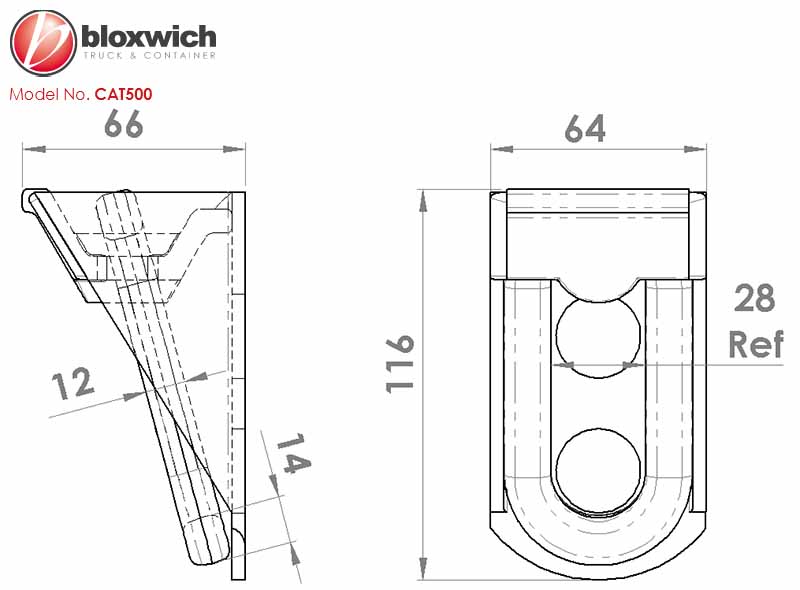

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
